LM6X15

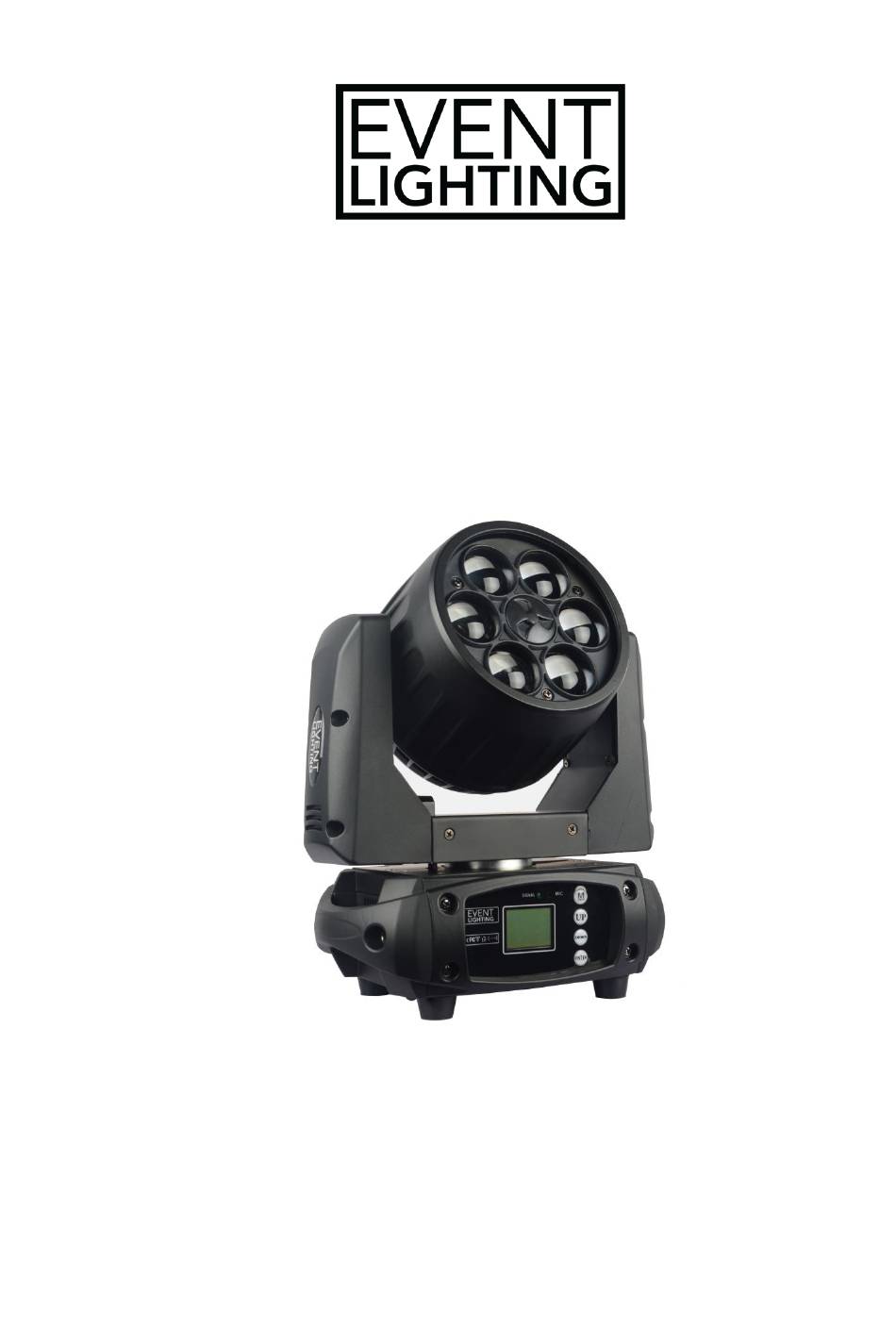

6x15W LED WASH ZOOM HEAD
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting LM6X15
Summary of Contents for Event Lighting LM6X15
-
Page 1: User Manual
For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item. -
Page 2: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 3: Product Installation
Product Installation This device can be mounted in many orientations provided each individual device is secured by the use of correct mounting bracket. Use a safety chain when mounting this device overhead. www.event-lighting.com.au... - Page 4 Dimensions www.event-lighting.com.au...
-
Page 5: Lux Chart
Lux Chart www.event-lighting.com.au... -
Page 6: Menu Operation
Menu operation Menu – Move up a level. Up – Move selection up one item. Down – Move selection down one item. Enter – Select / Mode down a level. www.event-lighting.com.au... - Page 7 Menu MENU DESCRIPTION Address Address A001~AXXX DMX Address Setting Auto Run Auto Run Program 1-8 | Master/Alone Auto Run State Music Run Program 1-8 | Master/Alone Music Control State Reset On/Off Reset all motors Pan/Tilt On/Off Reset pan/tilt motor Zoom On/Off Reset zoom motor Reverse...
-
Page 8: Dmx Chart
DMX Chart Channel Mode Name Function Standard Basic 255 Dimmer Dimmer 0%..100% 31 Shutter Shutter closed Shutter open Strobe effect, slow to fast Shutter open Pulse effect, slow to fast Shutter open Random strobe effect, slow to fast shutter open 255 Pan Pan movement 255 Pan-fine... - Page 9 79 Special functions Reset all motors Reset pan/tilt motor Reset zoom motor Internal program 1 Internal program 2 Internal program 3 Internal program 4 Internal program 5 Internal program 6 Internal program 7 Internal program 8 Internal sound program 1 Internal sound program 2 Internal sound program 3 Internal sound program 4...
-
Page 10: More Functions
More Functions Remote Device Management (RDM), which allows users to remotely control the device. Users can remotely change the DMX address, reverse pan/tilt settings, check the device’ status, such as its temperature, power consumption, fan speed, etc. Every device has a unique RDM code programmed during manufacture to facilitate this function. -
Page 11: Warranty
Materials: Metal & Flame retardant ABS Finishing: Matte black IP rating: IP20 Net Weight: 4 kg Overall Size: 243 x 151 x 278 mm WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au. www.event-lighting.com.au...
