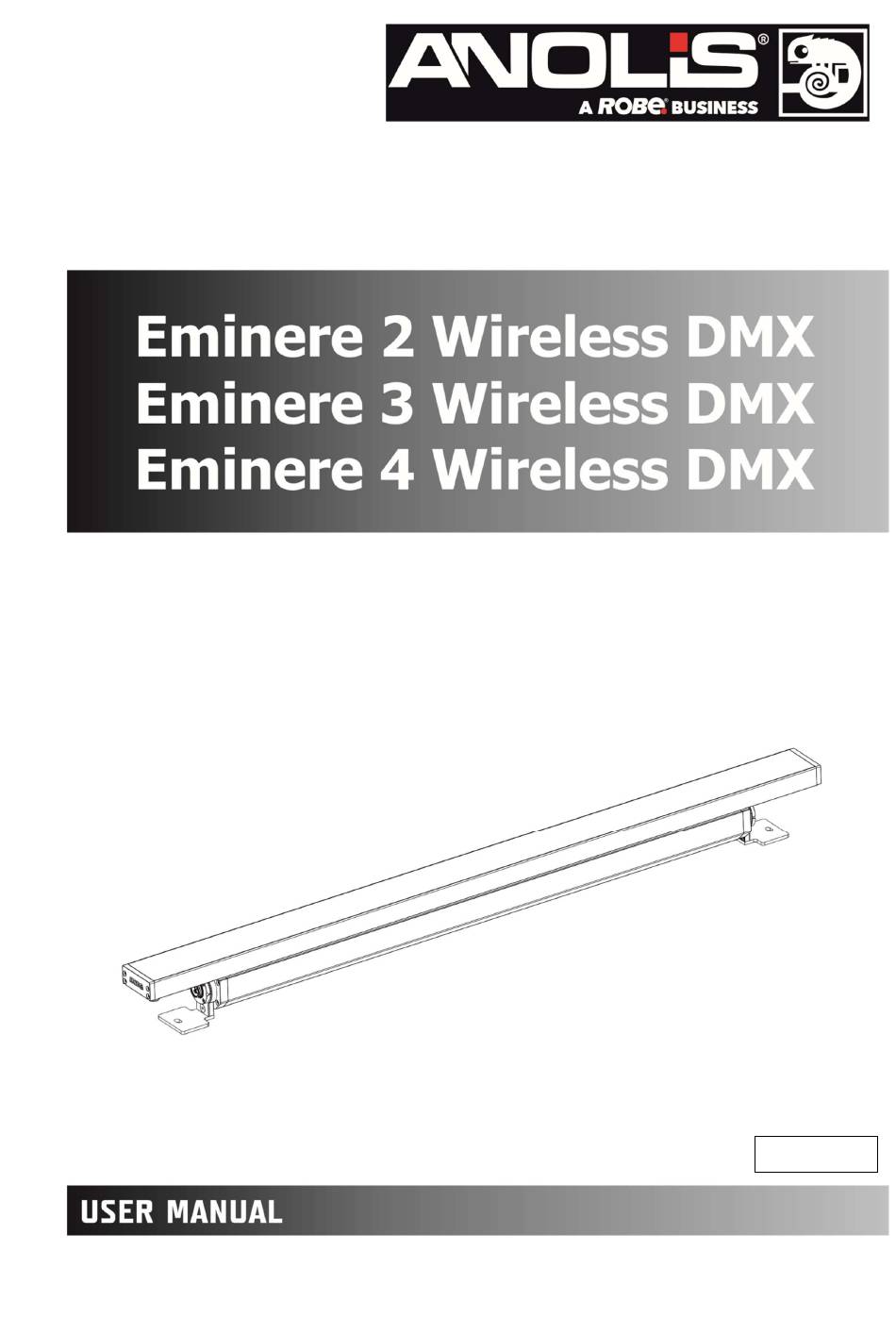

- Page 1 Version 1.4...
-
Page 2: Table Of Contents
Eminere Wireless DMX Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................4 3. Installation .................................. 5 3.1 Mounting the fixture ............................5 3.2 Connection to mains ............................. 5 3.3 The Booster box ..............................7 3.4 The Booster box installation ..........................9 4. -
Page 3: Safety Instructions
Eminere Wireless DMX FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR Eminere ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual. -
Page 4: Fixture Exterior View
Eminere Wireless DMX The fixture becomes hot during operation. Allow the fixture to cool approximately 30 minutes prior to servicing or maintenance. Operate the fixture only after having familiarized yourself with its functions. Do not permit operation by persons not qualified to operate the fixture. Most damages are the result of unprofessional operation! Immunity of the equipment is designed for electromagnetic environments E1, E2, E3 according to the standard EN55103-2 ed.2 Electromagnetic compatibility. -
Page 5: Installation
Eminere Wireless DMX 3. Installation 3.1 Mounting the fixture The Eminere can be arranged in any orientation on a flat, non-flammable surface by means of two mounting brackets (5), the LED module (2) can be tilted (+95°/-95°) to get access to mounting brackets (5). Ensure that the structure to which you are attaching the unit is secure. - Page 6 5 seconds period has not been kept and you have to repeat the Off/On procedure to unlink the fixture from the DMX transmitter . DMX addressing of connected Emineres has to be done manually by means of the Robe Universal Interface WTX and the software RDM Manager.
-
Page 7: The Booster Box
Eminere Wireless DMX 50 m 70 m 100 m EMINERE 3 wireless DMX Voltage Cable length * 120V 190V 230V 277V 10 m 20 m 30 m 50 m 70 m 100 m EMINERE 4 wireless DMX Voltage Cable length * 120V 190V 230V... - Page 8 Eminere Wireless DMX 20 m 30 m 50 m 70 m 12,24, 100 m 9,18 EMINERE 3 Max. possible number of Emineres 3 Wireless DMX = 32 Wireless DMX Voltage Cable length 120V 190V 230V 277V 10 m 20 m 30 m 50 m 12,24...
-
Page 9: The Booster Box Installation
Eminere Wireless DMX 3.4 The Booster box installation ALWAYS DISCONNECT THE EMINERES FROM MAINS BEFORE CONNECTING/DISCONNECTING THE BOOSTER BOX. The Booster box falls under protection class I. Therefore, every Booster box has to be connected to a mains socket outlet with a protective earthing connection. 1.Unscrew the four screws (1) from the cover (2) on the Booster box to get access to the terminal block (3) and two mounting holes of diameter of 4.6 mm (4). - Page 10 Eminere Wireless DMX Cable gland M20 MS: The cable gland M20 MS with a standard seal serves for a cable of diameter of 6-12mm, for smaller diameter of cable (4-8mm) you have to remove the original seal from the cable gland M20 and use the enclosed reducing seal instead of it.
-
Page 11: Technical Specifications
Eminere Wireless DMX 4. Technical specifications Power supply • Electronic auto-ranging • Input voltage: 120 - 277V AC, 50/60 Hz • Power consumption: Eminere 2: 45W Eminere 3: 65W Eminere 4: 85W • Inrush current: Eminere 2: <70A/250µs Eminere 3: <100A/200µs Eminere 4: <100A/200µs Optic •... - Page 12 Eminere Wireless DMX Operating ambient temperature range • -20°C /+40°C (-4°F /+104°F) Operating temperature • +67°C (+153°F @ Ambient +40°C @ Ambient +104°F Connection • Input: panel connector Amphenol ABAB-DMQ06000021-IN (P/N13052952) • Output: panel connector Amphenol ABAB-DAQ06000021 (P/N13052953) + water-tight cap Weight •Eminere 2: 4 kg (8.82 lbs) •Eminere 3: 6.02 kg (13.27 lbs)
- Page 13 Eminere Wireless DMX • Booster box Included items • 1 x Eminere • 1 x User manual Optional accessories Jumper Cables FF/FM: Jumper Cable FF/FM 0,25m (P/N 13053052) Jumper Cable FF/FM 0,5m (P/N 13053053) Jumper Cable FF/FM 1m (P/N 13053054) Jumper Cable FF/FM 2m (P/N 13053055) Jumper Cable FF/FM 3m (P/N 13053056) Jumper Cable FF/FM 5m (P/N 13053057)
-
Page 14: Cleaning And Maintenance
Technical specifications changed 26/11/2021 Optional accessories changed Specifications are subject to change without notice. November 26, 2021 Copyright © 2019-2021 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
