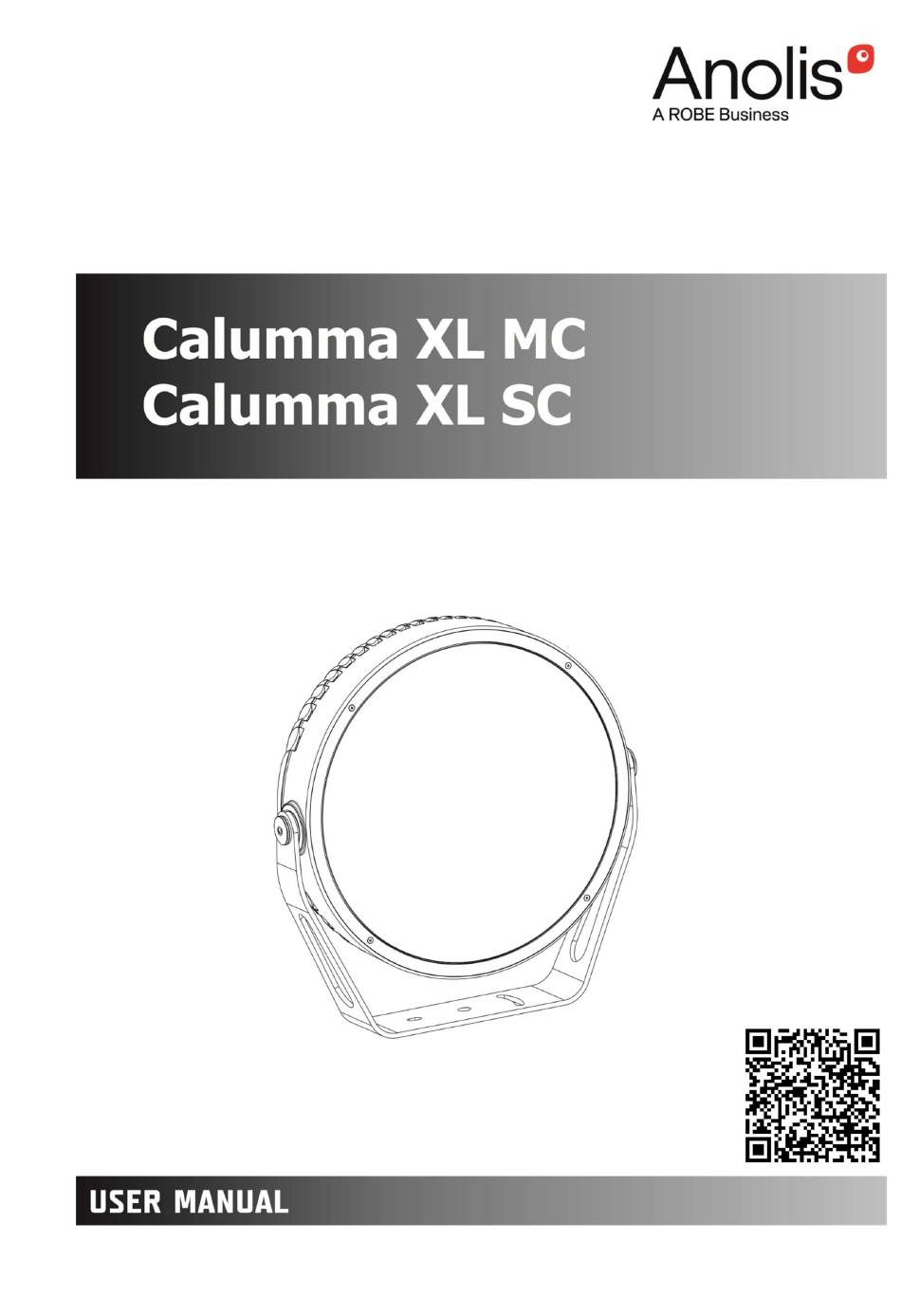

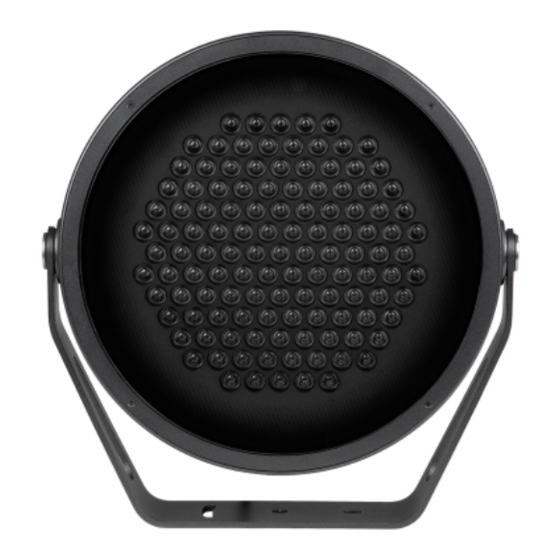

  • Page 1 QR code for user manual Version 1.0...

  • Page 2: Table Of Contents

    Calumma XL Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................4 3. Installation .................................. 5 3.1 Mounting the fixture ............................5 3.2 Connection to mains ............................. 5 3.3 Top hat installlation .............................. 7 3.4 Half top hat installlation ............................8 4.

  • Page 3: Safety Instructions

    Calumma XL FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR CALUMMA! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual.

  • Page 4: Fixture Exterior View

    Calumma XL Operate the fixture only after having familiarized yourself with its functions. Do not permit operation by persons not qualified to operate the fixture. Most damages are the result of unprofessional operation! Immunity of the equipment is designed for electromagnetic environments E1, E2, E3 according to the standard EN55103-2 ed.2 Electromagnetic compatibility.

  • Page 5: Installation

    Calumma XL 3. Installation 3.1 Mounting the fixture The Calumma can be fastened in any orientation on a flat, non-flammable surface by means of mounting yoke (2). The LED module (4) can be tilted +180°/-180°. Use an Allen key 2.5 for adjusting a LED module position. Ensure that the structure to which you are attaching the fixture is secure.
  • Page 6 Calumma XL 3. Connect cables. The cable gland M20 x 1.5 with a standard seal serves for a cable of diameter of 7-13mm, for smaller diameter of cable (4-8mm) you have to remove the original seal from the cable gland M20x1.5 and use enclosed reducing seal instead of it.

  • Page 7: Top Hat Installlation

    Calumma XL 3.3 Top hat installlation 1. Unscrew the four flat-head screws M3x8 (1) from the front of the Calumma and remove the flange (2). 2. Place the top hat (3) on the Calumma and screw it by means of the four flat-head screws M3x8 (1).

  • Page 8: Half Top Hat Installlation

    Calumma XL 3.4 Half top hat installlation 1. Unscrew the four flat-head screws M3x8 (1) from the front of the Calumma and remove the flange (2). 2. Place the half top hat (3) on the Calumma and screw it by means of the four flat-head screws M3x8 (1).

  • Page 9: Control And Connection Options

    Calumma XL 4. Control and connection options 4.1 DMX or DALI Example DMX connection (CE) IF the 5-cored cable Flamar 3x AWG 16 + 1x (2x AWG 24), (P/N 1305 1508) is used for Calumma connection and connection among junction boxes: Core Connection Core...

  • Page 10: Wireless Dmx

    Calumma XL 4.2 Wireless DMX Example Note: This type of connection is available for M, L, XL versions. DMX connection (CE) IF the 5-cored cable Flamar 3x AWG 16 + 1x (2x AWG 24), (P/N 1305 1508) is used for Calumma connection: Core Connection Core...

  • Page 11: Wireless Dmx To Wire Dmx

    Calumma XL 4.3 Wireless DMX to wire DMX Example Note: This type of connection must have M, L or XL versions as the first luminaire. Next luminaires in a row could be chosen from S, M, L or XL versions. DMX connection (CE) IF the 5-cored cable Flamar 3x AWG 16 + 1x (2x AWG 24), (P/N 1305 1508) is used for Calumma connection and connection among junction boxes:...

  • Page 12: Dmx Or Ethernet Via E-Box

    (default DMX address = 1), changes can be done by the E-box menu or by RDM. Pass-Thr - (Pass through). LED modules are switched to an internal parallel connection. DMX addressing of connected LED modules has to be done manually by means of the Robe Universal and the software RDM Manager. Example with junction boxes Pass Through mode is intended for this connection.
  • Page 13 Calumma XL CE version IF the 5-cored cable Flamar 3x AWG 16 + 1x (2x AWG 24), (P/N 1305 1508) is used for Calumma connection and connection among junction boxes: Core Connection Core Connection Black Live (L) Data + (+) Blue Neutral (N) White...
  • Page 14 Calumma XL 50 m 70 m 100 m 200 m 500 m * Cable length is a total cable length between power supply (e.g. E-box) and last connected Calumma. Example: Total cable length=L1+L2+L3+L4+L5+L6...
  • Page 15 Calumma XL Example with IN/OUT cables Standard mode is intended for this connection. Note. Combination of Calummas and Emineres is also possible...
  • Page 16 Calumma XL Connection of leader cables Input connector Output connector (front view) (front view) Leader Cable (CE): Wire Power Connection Wire Data Connection Brown Live Orange Data - Blue Neutral Purple Data + Yellow/Green Ground (Earth) Shielding Data ground (0V) Fixture´s Amphenol connectors are dust and water protected according to IP 67 by mating with related Amphenol connectors.
  • Page 17 Calumma XL The tables below state max. theoretical number of Calummas connected to the one LED output of the E-box without Booster boxes. The following table applies for the Standard mode of E-boxes. Calumma XL MC Voltage Cable length * 120V 190V 230V...

  • Page 18: Booster Box

    Calumma XL 4.5.1 Booster box To compensate a voltage drop in large installation, the Booster boxes have to be connected in the chain of Calummas (connected IN/OUT method) at every LED output of the E-box. The following tables give theoretical numbers of Calummas after which the Booster box has to be installed in the chain of Calummas (at one LED output of the E-box).
  • Page 19 Calumma XL 100 m 2,4,6,8,10,12,14,16,18,20… 5,10,15,20,25,30 8,16,24,32,40,4 11,22,33,44, ,35,40,45… 8,56,64,72,80,8 55,66,77,88, 8,96… 99,110,121 … 200 m 1,2,3,4,5,6,7,8,9,10,11…. 3,6,9,12,15,18,2 4,8,12,16,20,24 6,12,18,24,3 1,24,27,30,33,36 ,28,3236,40,44, 0,36… ,39,42,45,48,51, 48,52,56,60,64, 54,57,60,63,66,6 68,72,76,80,84. 9,72,75,78,81… …. 500 m 1,2,3,4,5,6,7,8,9, 2,4,6,8,10,12,1 2,4,6,8,10,1 10,11…. 4,16,18,20… 2,14,16,18,2 0… Example: E-box Daisy, Power supply= 230V, Cable length=70m, fixture=Calumma XL SC. The Booster box has to be connected after every 11th Calumma XL SC (fixture 11 and fixture 22) from 24 fixtures.

  • Page 20: Booster Box Installation

    Calumma XL 4.5.2 Booster box installation ALWAYS DISCONNECT THE CALUMMAS FROM MAINS BEFORE CONNECTING/DISCONNECTING THE BOOSTER BOX. The Booster box falls under protection class I. Therefore, every Booster box has to be connected to a mains socket outlet with a protective earthing connection. 1.Unscrew the four screws (1) from the cover (2) on the Booster box to get access to the terminal block (3) and two mounting holes of diameter of 4.6 mm (4).
  • Page 21 Calumma XL Cable gland M20x1.5 4. Screw the cover (2) back on the Booster box.

  • Page 22: Software Update

    Calumma XL 5. Software update Software update of Calumma module has to be done by means of the software ROBE Uploader running on PC. The ROBE Uploader is a software for automatized software update of ROBE fixtures. The ROBE Uploader switches Calummas to the update mode automatically.
  • Page 23 If you use a connection via junction boxes and you need to update connected E-box, switch the E-box to the Standard mode and use the EminereEbox.lib in the ROBE Uploader to update E-box. After updating the E-box, switch it back to the Pass-Trough mode.
  • Page 24 Calumma XL DMX connection For updating of Calumma modules, use the file Calumma.lib. Calumma.lib...

  • Page 25: Technical Specifications

    Calumma XL 6. Technical specifications Power supply • Electronic auto-ranging • Input voltage: 120 - 277V AC, 50/60 Hz • Power consumption: Calumma XL MC: 175 W Calumma XL SC: 185 W • Inrush current: Calumma XL MC: 60A(twidth= 510us measured at 50% Ipeak) at 230VAC, cold start Calumma XL SC: 60A(twidth= 510us measured at 50% Ipeak) at 230VAC, cold start Optic •...
  • Page 26 Calumma XL 120-277V Input Connection via screw terminal blocks, inlets via grommet IP67 Mounting method • Via yoke • Adjustability: -180°/+180° Housing • High pressure die-cast aluminium body • Tempered glass Cooling system • Convection Total heat dissipation • Calumma XL MC: 448 BTU/h (calculated) •...
  • Page 27 Calumma XL • DMX or Ethernet via E-box and Junction box Flamar 3x AWG 16 + 1x (2x AWG 24), standard 1m with bare-end (P/N 1305 1508) Calumma IN: Interconnecting cables: Flamar 3x AWG 16 + 1 x (2x AWG 24), (P/N 1305 1508) Junction box •...
  • Page 28 Calumma XL Dimensions (All dimensions in mm [inch])
  • Page 29 Calumma XL Junction box...
  • Page 30 Calumma XL Booster box...

  • Page 31: Cleaning And Maintenance

    Version of manual Date of issue Description of changes Specifications are subject to change without notice. August 17, 2022 Copyright © 2022 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
