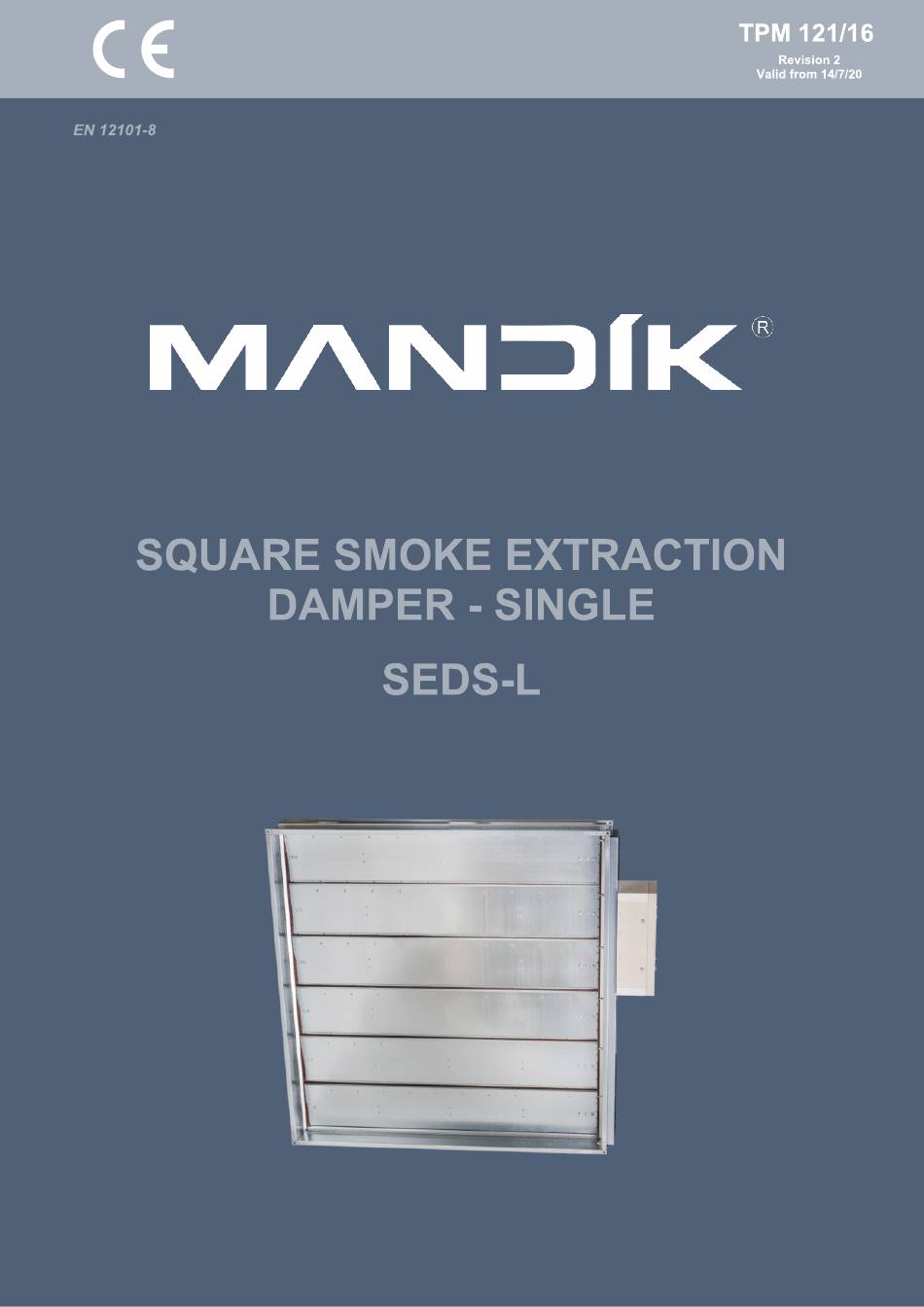

- Page 2 These technical specifications state a row of manufactured sizes and models of smoke extraction dampers - single (further only dampers) SEDS-L. It is valid for production, designing, ordering, delivery, maintenance and operation. 1. Description......................... 2. Design..........................3. Dimensions, weights......................4. Placement and Assembly....................10 5.
- Page 3 • External Casing leakage min. class B, Internal leakage min. class 3 acc. to EN 1751 • Cycling test in class C 10000 acc. to EN 12101-8 • ES Certificate No. 1391-CPR-2018/0106 • Declaration of Perfomance No. PM/SEDS-L/01/20/1 • Hygienic assessment of fire dampers - Report No. 1.6/pos/19/19c...
- Page 4 Temperature in the place of installation is permitted to range from - 20°C to + 50°C. Design with actuating mechanism SEDS-L is equipped by actuating mechanism Belimo BLE24 (BE24-12) for 24V supply or BLE230 (BE230-12) for 230V supply. After being connected to power supply the actuating mechanism displaces the damper blade into operation position "OPEN"...
- Page 5 AC 230 V 50/60Hz Nominal voltage AC 24V 50/60Hz DC 24 V Power consumption - motoring 7,5 W < 1 W - holding < 0,5 W 12 VA (Imax 6 A @ 5 ms) Dimensioning 9 VA (Imax 2,7 A @ 5 ms) Protection class Degree of protection IP 54...
- Page 6 AC 230 V 50/60Hz Nominal voltage AC 24V 50/60Hz DC 24 V Power consumption - motoring 12 W 0,5 W - holding 0,5 W 15 VA (Imax 7.9 A @ 5 ms) Dimensioning 18 VA (Imax 8.2 A @ 5 ms) Protection class Degree of protection IP 54...
- Page 7 Design with the communication and power supply unit Design with the communication and power supply unit BKNE230-24 and the actuating mechanism BLE24(BE24-12)-ST. BKNE230-24 functions as a decentralized network device for supplying the actuating mechanism BLE24(BE24-12)-ST on one hand and on the other hand it transmits signals from communication and control device BKSE24-6.
- Page 8 LED and the corresponding fault LED. The BKSE24-6 unit can be clipped directly to a 35 mm DIN mounting rail and connected by means of two 9-pole plug-in terminals. The BKSE24-6 unit isn´t in the scope of delivery MANDIK company.
- Page 9 Nominal voltage AC 24 V 50/60Hz Power consumption 3,5 W (operating position) Dimensioning 5,5 VA 18 VA (Imax 6.4 A @ 2.5 ms) Protection class Degree of protection IP 20 Ambient temperature range 0 … + 50 °C Connecting screw terminals for cable 2x1,5 mm Dimensions * standard height of the flange [mm]...
- Page 10 Weights and effective area cross section 14.3 0.0227 17.6 0.0511 16.4 0.0270 20.3 0.0608 17.3 0.0350 21.5 0.0788 18.3 0.0430 22.6 0.0968 19.2 0.0510 23.8 0.1148 21.2 0.0554 26.4 0.1246 22.2 0.0634 27.6 0.1426 24.1 0.0794 30.0 0.1786 27.0 0.0917 33.7 0.2063 28.9...
- Page 11 0.8832 90.0 1.1913 ³ ³ Example, how to calculate effective area and size of SEDS-L damper [AxB], when knowing air volume in [m /s] or [m /h] on damper. Maximum allowed air velocity on SEDS-L is 12 [m/s]. Formula: ³...
-
Page 12: Installation Examples
Installation examples Pozice: Damper hinge Washer Profile C Washer C Wall construction without fire resistance... - Page 13 Δp (Pa) Δp - static pressure drop w (m/s) w - air velocity in the free cross section (AxB) B - height of the damper B=200/400/600/800/1000/1200mm B=250mm B=300/450mm B=350/500/700/900/1100mm Sound power level corrected with filter A w - air velocity in the free cross section (AxB) - i.e. before blades f - frequency of octave band...
- Page 14 w - air velocity in the free cross section (AxB) - i.e. before blades f - frequency of octave band w - air velocity in the free cross section (AxB) - i.e. before blades f - frequency of octave band...
- Page 15 Damper casing and damper blade are made of galvanized plate without any other surface finish. Fasteners are galvanized. T he actuator cover is made of fire-resistant material (fire protection board) The appliance is constructed and preset by the manufacturer, its operation is dependent on proper installation and adjustment.
- Page 16 Before entering the dampers into operation after assembly and after sequential revisions, checks and functionality tests of all designs including operation of the electrical components must be successfully provided and finished. After entering into operation, these revisions must be done according to requirement set by national regulations.
- Page 17 DIMENSION: ACTUATING SYSTEM: WEIGHT (kg): YEAR/SER.NO.: MANUAL FIRE PROTEC. CLASS: TPM 121/16 EN 12101-8:2011 Cert. No.: 1391-CPR-2018/0106, DoP: PM/SEDS-L/01/20/1 1391 technical specifications special design tab. 14.1.2 design according tab. 14.1.1 size type with actuating mechanism BLE230 (BE230-12) with actuating mechanism BLE24 (BE24-12)
- Page 18 MANDÍK, a.s. Dobříšská 550 26724 Hostomice Czech Republic Tel.: +420 311 706 706 E-Mail: mandik@mandik.cz www.mandik.com The producer reserves the right for innovations of the product. For actual product information see www.mandik.com...
