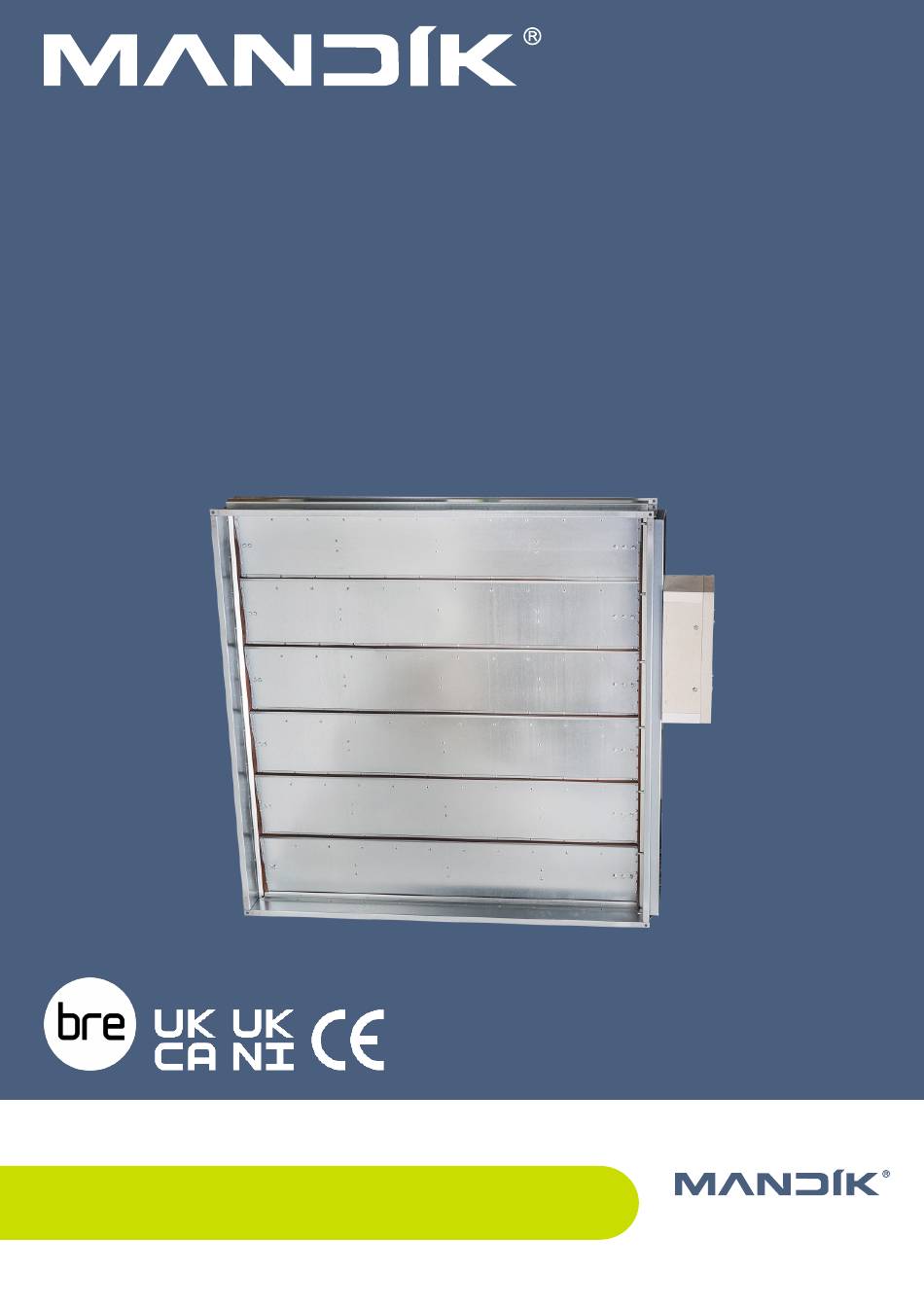

TPM 158/22
Version 2022-12-20
SEDS-L
Smoke extraction damper - single
Technical Documentation
Installation, Commissioning, Operation, Maintenance and Service Manual
www.mandik.co.uk
Manufacturer
MANDÍK, a. s. • Dobříšská 550 • 267 24 Hostomice • Czech Republic • Tel.: +420 311 706 742 • E-Mail: mandik@mandik.cz
Authorized representative
MANDIK UK Ltd • 130 Aztec West • Bristol BS32 4UB • United Kingdom • Tel.: +44 117 4526376 • E-Mail: help@mandik.co.uk
Advertisement
Table of Contents
Related Manuals for Mandik SEDS-L
Summary of Contents for Mandik SEDS-L
- Page 1 Manufacturer MANDÍK, a. s. • Dobříšská 550 • 267 24 Hostomice • Czech Republic • Tel.: +420 311 706 742 • E-Mail: mandik@mandik.cz Authorized representative MANDIK UK Ltd • 130 Aztec West • Bristol BS32 4UB • United Kingdom • Tel.: +44 117 4526376 • E-Mail: help@mandik.co.uk...
-
Page 2: Table Of Contents
TPM 158/22 These technical specifications state a row of manufactured sizes and models of smoke extraction dampers - single SEDS-L. It is valid for production, designing, ordering, delivery, maintenance and operation. CONTENT I. GENERAL.....................................3 Description....................................3 Design.....................................4 Design with actuating mechanism............................4 Communication and control module MDCM........................8... -
Page 3: General
TPM 158/22 I. GENERAL Description Smoke extraction dampers - SEDS-L are shutters in smoke ventilation system. Dampers are designed to remove heat and combustion products (e.g. smoke) from single fire comp- artment. In the event of fire the Smoke and Fire ventilation system opens the damper in the affected section which removes combustion products and heat from this section. -
Page 4: Design
The actuator for operating the damper blade is mounted ■ in an insulated cover/box. It is accessible after removing Actuating mechanism Insulated cover/box Design .44, .54 and .65 Page 4 SEDS-L - Smoke extraction damper - single Version 2022-12-20... - Page 5 (BEN 24-ST) with plug Cable 1 m, 6 x 0,75 mm Cable 1 m, 6 x 0,75 mm - auxiliary switch connectors * Only available for 24V and selected damper sizes Version 2022-12-20 SEDS-L - Smoke extraction damper - single Page 5...
- Page 6 (BEE 24-ST) with plug Cable 1 m, 6 x 0,75 mm Cable 1 m, 6 x 0,75 mm - auxiliary switch connectors * Only available for 24V and selected damper sizes Page 6 SEDS-L - Smoke extraction damper - single Version 2022-12-20...
- Page 7 Storage temperature -40°C … +80°C Cable 1 m, 3 x 0,75 mm Connection - drive Cable 1 m, 6 x 0,75 mm - auxiliary switch (BE 24-ST) with plug connectors Version 2022-12-20 SEDS-L - Smoke extraction damper - single Page 7...
-
Page 8: Communication And Control Module Mdcm
Damper actuator Comms IN Communications loop cable CAT 3 or equivalent 1.5mm 2 core screened Comms OUT 230mm x 160mm x 62mm deep steel enclosure powder coated red - IP54 Page 8 SEDS-L - Smoke extraction damper - single Version 2022-12-20... -
Page 9: Dimensions
BEN / BEE + BKNE 236,5 Damper blade BE + BKNE 251,5 Actuating mechanism cover Flange with corner hole Flanges of dampers are 30 mm wide with oval hole. Version 2022-12-20 SEDS-L - Smoke extraction damper - single Page 9... -
Page 10: Technical Parameters
0,4200 (25 N.m) 1000 42,7 0,2635 1000 53,3 0,4760 BELIMO BEE (25 N.m) 1100 46,3 0,2874 1100 57,9 0,5191 BELIMO BE (40 N.m) 1200 48,5 0,3184 1200 60,7 0,5751 Page 10 SEDS-L - Smoke extraction damper - single Version 2022-12-20... - Page 11 BELIMO BE 62,5 0,6450 74,5 0,8700 (40 N.m) BELIMO BE 1000 66,0 0,7310 1000 78,7 0,9860 (40 N.m) 1100 71,8 0,7972 1100 85,8 1,0753 1200 75,4 0,8832 1200 90,0 1,1913 Version 2022-12-20 SEDS-L - Smoke extraction damper - single Page 11...
-
Page 12: Placement And Assembly
Wall construction without fire resistance Atypical protection box with access to actuator from side, not as standard from the top Fixing profile with threaded rod → see pages 13 to 14 Duct Page 12 SEDS-L - Smoke extraction damper - single Version 2022-12-20... - Page 13 Coupling Nut M8 - M20 Anchor Hinge plate - min. thickness 10 mm Concrete screw tested for fire resistance R30-R90, max. Tension up to 0.75 KN (length 35 mm) Version 2022-12-20 SEDS-L - Smoke extraction damper - single Page 13...
- Page 14 Washer for M8 - M20 Nut M8 - M20 Dimension elements of the suspension system Flange of SEDS-L ■ acc. to the weight of the damper, → see page 13 Flange of duct Page 14 SEDS-L - Smoke extraction damper - single Version 2022-12-20...
-
Page 15: Duct Connection
M8 bolt assemply (bolt M8x20 mm, 2 pcs large washer M8, nut M8) * Ceramic self-adhesive tape (FJ 120 Pyrosil B 170-250 kg/m - Tremco-illbruck) or equivalent Lock washers Version 2022-12-20 SEDS-L - Smoke extraction damper - single Page 15... -
Page 16: Accessories
002/96) can be used to close smoke control dampers. ■ These grilles are available in all sizes of the smoke control dampers. ■ Free area value for KMM is 78%. ■ SEDS-L with cover grille Page 16 SEDS-L - Smoke extraction damper - single Version 2022-12-20... -
Page 17: Technical Data
Δp (Pa) Δp - static pressure drop w (m/s) w - air velocity in the free cross section (AxB) B - height of the damper B=200/400/600/800/1000/1200mm B=250mm B=300/450mm B=350/500/700/900/1100mm Version 2022-12-20 SEDS-L - Smoke extraction damper - single Page 17... -
Page 18: Noise Data - Level Of Acoustic Output Corrected With Filter A
Sound power level Lw in dB(A) for B=200/400/600/800/1000/1200mm, damper fully open f (Hz) 1000 2000 4000 8000 Total w - air velocity in the free cross section (AxB) - i.e. before blades f - frequency of octave band Page 18 SEDS-L - Smoke extraction damper - single Version 2022-12-20... -
Page 19: Material, Finishing
The actuator cover is made of fire-resistant material (fire protection board). ■ IV. INSPECTION, TESTING The appliance is constructed and preset by the manufacturer, its operation is dependent on proper installation and ■ adjustment. Version 2022-12-20 SEDS-L - Smoke extraction damper - single Page 19... -
Page 20: Transportation And Storage
All effective safety standards and directives must be obse- ■ rved during damper assembly. Manual operation ■ Without power supply, the damper can be operated ■ manually and fixed in any required position. Page 20 SEDS-L - Smoke extraction damper - single Version 2022-12-20... -
Page 21: Electrical Connection Of The Actuator In Protection Box
Seal up the space around cable with fire resistant mastic (HILTI CFS-S ACR, PROMASTOP) or equivalent. ■ Let the mastic harden. ■ example drilled holes Example of position of holes in the wall of the box, without pre-manufactured slot Version 2022-12-20 SEDS-L - Smoke extraction damper - single Page 21... -
Page 22: Connection Of The Control Module Mdpm & Mdcm Interfaces Inside Protection Box
Seal up the space around cable with fire resistant mastic (HILTI CFS-S ACR, PROMASTOP) or equivalent. ■ Let the mastic harden. ■ Drilling areas for routing the connection cable of modul to the actuator Dimensions of protection box Page 22 SEDS-L - Smoke extraction damper - single Version 2022-12-20... -
Page 23: Entry Into Service And Revisions
Results of regular checks, imperfections found and all- ■ important facts connected with the damper function must Spare parts Spare parts are supplied only on basis of an order. ■ Version 2022-12-20 SEDS-L - Smoke extraction damper - single Page 23... -
Page 24: Product Data
F - flanges with height 20 mm design size AxB EXAMPLE: SEDS-L 200x200 - .44 - 200x200-damper size, .44-damper design, standard flanges with height 30 mm Dampers design Additional digit with actuating mechanism BEN, BEE, BE for 230V with actuating mechanism BEN, BEE, BE for 24V with actuating mechanism BEN (BEE)-SR for 24V .65*... - Page 25 Manufacturer MANDÍK, a. s. • Dobříšská 550 • 267 24 Hostomice • Czech Republic • Tel.: +420 311 706 742 • E-Mail: mandik@mandik.cz Authorized representative MANDIK UK Ltd • 130 Aztec West • Bristol BS32 4UB • United Kingdom • Tel.: +44 117 4526376 • E-Mail: help@mandik.co.uk...
