TPM 157/22
Version 2022-12-20

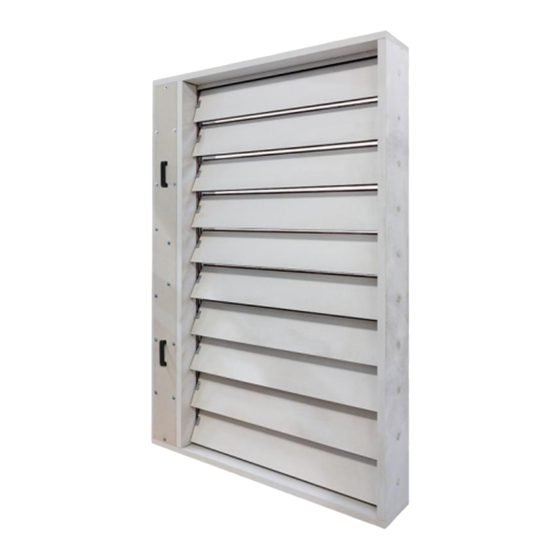

SEDM-L
Smoke extraction damper - multi

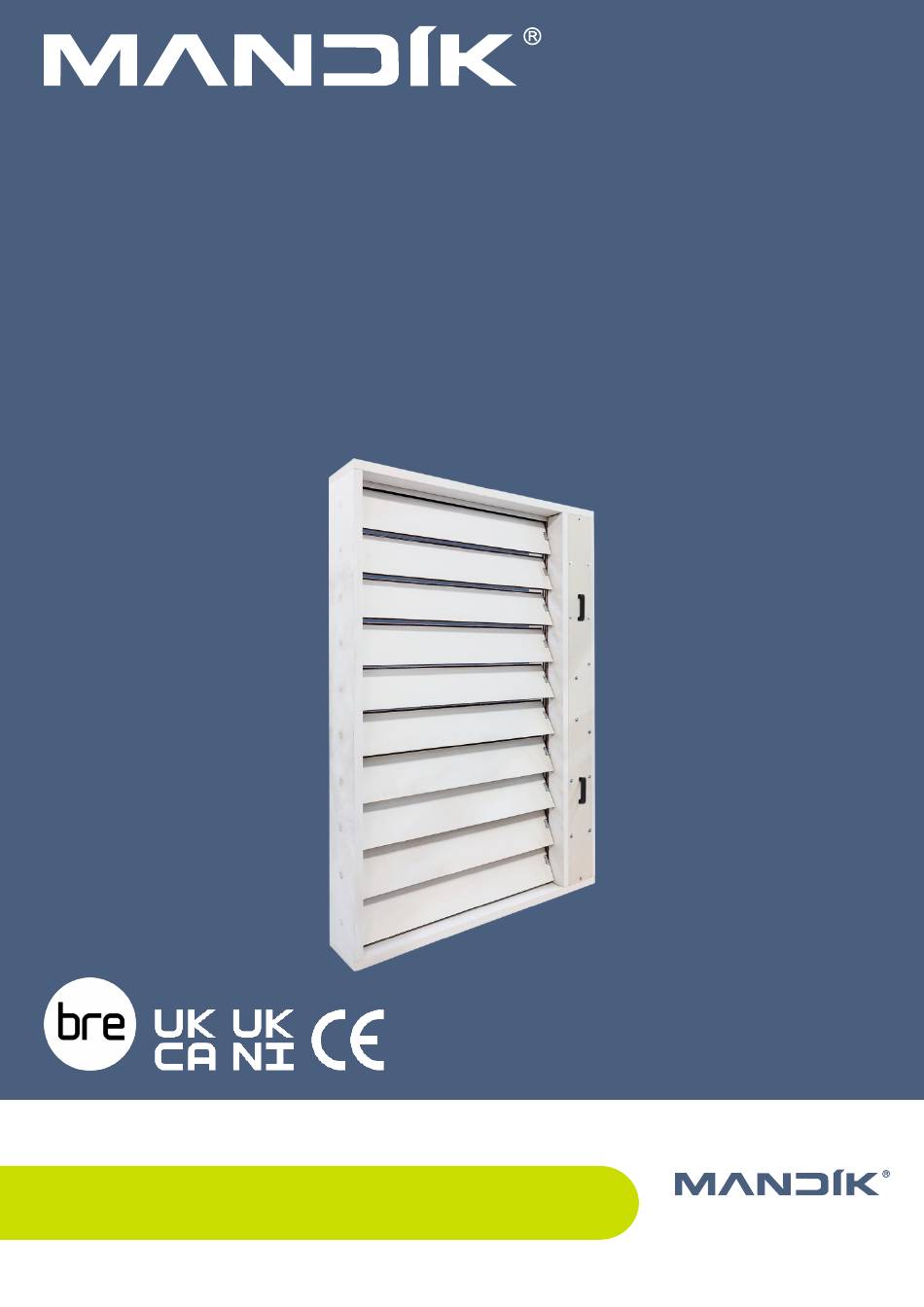

Technical Documentation
Installation, Commissioning, Operation, Maintenance and Service Manual
www.mandik.co.uk
Manufacturer
MANDÍK, a. s. • Dobříšská 550 • 267 24 Hostomice • Czech Republic • Tel.: +420 311 706 742 • E-Mail: mandik@mandik.cz
Authorized representative
MANDIK UK Ltd • 130 Aztec West • Bristol BS32 4UB • United Kingdom • Tel.: +44 117 4526376 • E-Mail: help@mandik.co.uk

Advertisement

Table of Contents
loading

Related Manuals for Mandik SEDM-L

Summary of Contents for Mandik SEDM-L

  • Page 1 Manufacturer MANDÍK, a. s. • Dobříšská 550 • 267 24 Hostomice • Czech Republic • Tel.: +420 311 706 742 • E-Mail: mandik@mandik.cz Authorized representative MANDIK UK Ltd • 130 Aztec West • Bristol BS32 4UB • United Kingdom • Tel.: +44 117 4526376 • E-Mail: help@mandik.co.uk...

  • Page 2: Table Of Contents

    These technical specifications state a row of manufactured sizes, main dimensions, design and range of use of multi-blade smoke and heat extraction dampers - multi SEDM-L. It is valid for production, design, ordering, delivery, storage, assembly, operation, maintenance and serviceability checks.

  • Page 3: General

    TPM 157/22 I. GENERAL Description Smoke extraction dampers - SEDM-L are designed into an inlet or extract smoke ventilation system. The dampers are designed either to close to provide compartmentalization or to open (for fresh air inlet) or to allow removal of the heat and combustible products from a fire in the affected fire zone/compartment.
  • Page 4 The dampers used to supply air in the affected fire section ■ ■ are installed at the ground. If necessary, in the event of a fire, the SEDM-L dampers in ■ the affected fire section will open completely so that the The dampers are controlled from the central control ■...

  • Page 5: Design

    It is accessible after removing Design .44, .54 and .65 Damper housing Blade stop Blades Actuator housing Silicone blade seal Actuator housing cover Internal silicone seal Actuator Fire-fighting foam tape Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 5...
  • Page 6 (BEN 24-ST) with plug Cable 1 m, 6 x 0,75 mm Cable 1 m, 6 x 0,75 mm - auxiliary switch connectors * Only available for 24V and selected damper sizes Page 6 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...
  • Page 7 (BEE 24-ST) with plug Cable 1 m, 6 x 0,75 mm Cable 1 m, 6 x 0,75 mm - auxiliary switch connectors * Only available for 24V and selected damper sizes Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 7...
  • Page 8 Storage temperature -40°C … +80°C Cable 1 m, 3 x 0,75 mm Connection - drive Cable 1 m, 6 x 0,75 mm - auxiliary switch (BE 24-ST) with plug connectors Page 8 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...

  • Page 9: Communication And Control Module Mdcm

    Damper actuator Comms IN Communications loop cable CAT 3 or equivalent 1.5mm 2 core screened Comms OUT 230mm x 160mm x 62mm deep steel enclosure powder coated red - IP54 Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 9...

  • Page 10: Dimensions

    Dimensions SEDM-L without flange and cover grille The blade spacing is always 200mm ■ SEDM-L with flange and cover grille over blades * External dimension of the grille The blade spacing is always 200mm ■ For a detail of the cover grille filling, →...
  • Page 11 TPM 157/22 SEDM-L with flange and cover grille over damper * External dimension of the grille ■ The blade spacing is always 200mm For a detail of the cover grille filling, → see page 12 ■ Flange (2 types) Flange over blades...
  • Page 12 The grilles type KMM (TPM 002/96) can be used to close smoke control dampers. ■ Maximum size KMM can we supply is 2400x2400mm. ■ Free area value for KMM is 78%. ■ Page 12 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...

  • Page 13: Technical Parameters

    0,4484 91,5 0,4789 93,9 0,5094 96,3 0,5399 98,7 BELIMO BEE 0,5704 101,9 (25 N.m) 1000 0,6009 104,3 1050 0,6314 106,7 1100 0,6619 109,1 1150 0,6924 111,5 1200 0,7229 113,9 Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 13...
  • Page 14 0,8012 138,9 0,8557 142,3 0,9102 145,8 0,9647 149,2 1,0192 153,3 BELIMO BE (40 N.m) 1000 1,0737 156,7 1050 1,1282 160,2 1100 1,1827 163,7 1150 1,2372 167,1 1200 1,2917 170,6 Page 14 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...
  • Page 15 BELIMO BE 1,3110 194,5 (40 N.m) 1,3895 199,1 1,4680 204,4 1000 1,5465 208,9 10,4 1050 1,6250 213,4 10,7 1100 1,7035 217,9 1150 1,7820 222,4 11,3 1200 1,8605 226,9 10,1 11,6 Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 15...

  • Page 16: Placement And Assembly

    TPM 157/22 Placement and Assembly Multi-blade smoke and heat dampers - multi SEDM-L Dampers are designed to remove heat and combustion products (e.g. smoke) from fire compartments according EN 12101-8. ■ They're suitable for installation in a vertical position, with the blade axis horizontal.
  • Page 17 TPM 157/22 4. Place the damper in the installation hole. 5. After installing the damper and possibly hardening the plaster/mortar, remove the transport struts and corners. Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 17...
  • Page 18 Flange over blades Detail X Detail Y Flange edge Damper edge The inner edge of the damper aligns with the inner edge of the flange Detail Y Detail X SEDM-L Flange Page 18 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...
  • Page 19 8. Ways of placing the grille on the damper with a flange (2 types) Grille over blades Grille over damper For a detail of the cover grille filling, → see page 12 ■ Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 19...
  • Page 20 Rivet nuts - mounted on the flange from the factory 10. Mounting the handrail on the damper SEDM-L Pre-drilled holes Handrail - part of SEDM-L Screw 5x50 mm - part of SEDM-L Page 20 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...
  • Page 21 Minimum distance 75 mm between damper and construction (wall/ceiling). ■ When installing SEDM-L (smaller dimensions), which is not equipped with transport spacers and corners, the Blades must be ■ in the “CLOSED” position. The damper body should not be deformed in the course of installation.
  • Page 22 TPM 157/22 Recommended construction openings Construction opening - mortar or gypsum * Recommended size Construction opening - Ablative Coated Batt system Page 22 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...

  • Page 23: Statement Of Installations

    If the wall thickness is the same as tested but is a lower EI value, then a higher EIS classified damper can be used within the wall (e.g wall is 100mm thick and fire resistance EI 60, then an EI 120 S damper can be used and will be classified as EI60S) Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 23...

  • Page 24: Installation In Solid Wall / In Solid Shaft Wall Construction

    Shaft wall of a solid wall construction which is a part of a smoke extraction duct - multi British gypsum thistle bond 60 (or equivalent can by used) minimum density 670 kg/m³ Flange Grille Page 24 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...
  • Page 25 Ablative Coated Batt (e.g. Firestop Board HILTI CFS-CT B 1S 140/50 - min. density 140 kg/m + Firestop acrylic sealant HILTI CFS-S ACR or equivalent) Fire stop coating thickness 1 mm (e.g. HILTI CFS-CT, PROMASTOP-CC or equivalent) Flange Grille Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 25...

  • Page 26: Installation In Gypsum Wall / In Gypsum Shaft Wall Construction

    Ablative Coated Batt (e.g. Firestop Board HILTI CFS-CT B 1S 140/50 - min. density 140 kg/m + Firestop acrylic sealant HILTI CFS-S ACR or equivalent) Fire stop coating thickness 1 mm (e.g. HILTI CFS-CT, PROMASTOP-CC or equivalent) Flange Grille Page 26 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...

  • Page 27: Installation In Battery

    M8 bolt assemply (bolt M8x105 mm, 2 pcs large washer M8, nut M8)* Connecting straps, spacer straps, screws, screw connections and Promat glue K84 are not included in the delivery! Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 27...
  • Page 28 M8 bolt assemply (bolt M8x105 mm, 2 pcs large washer M8, nut M8)* Connecting straps, spacer straps, screws, screw connections and Promat glue K84 are not included in the delivery! Page 28 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...
  • Page 29 10 M8 bolt assemply (bolt M8x105 mm, 2 pcs large washer M8, nut M8)* Connecting straps, spacer straps, screws, screw connections and Promat glue K84 are not included in the delivery! Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 29...
  • Page 30 M8 bolt assemply (bolt M8x105 mm, 2 pcs large washer M8, nut M8) Connecting straps, spacer straps, screws, screw connections and Promat glue K84 are not included in the delivery! Page 30 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...
  • Page 31 M8 bolt assemply (bolt M8x105 mm, 2 pcs large washer M8, nut M8) Connecting straps, spacer straps, screws, screw connections and Promat glue K84 are not included in the delivery! Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 31...
  • Page 32 10 M8 bolt assemply (bolt M8x105 mm, 2 pcs large washer M8, nut M8) Connecting straps, spacer straps, screws, screw connections and Promat glue K84 are not included in the delivery! Page 32 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...
  • Page 33 M8 bolt assemply (bolt M8x105 mm, 2 pcs large washer M8, nut M8), span 200 to 300 mm Connecting straps, spacer straps, screws, screw connections and Promat glue K84 are not included in the delivery! Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 33...
  • Page 34 M8 bolt assemply (bolt M8x105 mm, 2 pcs large washer M8, nut M8), span 200 to 300 mm Connecting straps, spacer straps, screws, screw connections and Promat glue K84 are not included in the delivery! Page 34 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...
  • Page 35 11 M8 bolt assemply (bolt M8x105 mm, 2 pcs large washer M8, nut M8), span 200 to 300 mm Connecting straps, spacer straps, screws, screw connections and Promat glue K84 are not included in the delivery! Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 35...
  • Page 36 M8 bolt assemply (bolt M8x105 mm, 2 pcs large washer M8, nut M8)* Screw UNI 6x80 mm with large washer* Connecting straps, spacer straps, screws, screw connections and Promat glue K84 are not included in the delivery! Page 36 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...
  • Page 37 M8 bolt assemply (bolt M8x105 mm, 2 pcs large washer M8, nut M8)* Screw UNI 6x80 mm with large washer* Connecting straps, spacer straps, screws, screw connections and Promat glue K84 are not included in the delivery! Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 37...
  • Page 38 10 M8 bolt assemply (bolt M8x105 mm, 2 pcs large washer M8, nut M8)* 11 Screw UNI 6x80 mm with large washer* Connecting straps, spacer straps, screws, screw connections and Promat glue K84 are not included in the delivery! Page 38 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...
  • Page 39 ≥ 100 ■ Seal all joints (Overplating strips, Spacing strips with SEDM-L damper) with Promat glue K84. Examples of anchors to the fire dividing con- ■ struction → see pages 42 to 44 * When installing a flange, overplating strip is not installed.
  • Page 40 ≥ 100 y = min. 30 mm, max. 400 mm Seal all joints (Overplating strips, Spacing strips ■ with SEDM-L damper) with Promat glue K84. Examples of anchors to the fire dividing con- ■ struction → see pages 42 to 44 * When installing a flange, overplating strip is not installed.
  • Page 41 ≥ 100 * When installing a flange, overplating strip is not installed. Seal all joints (Overplating strips, Spacing strips ■ with SEDM-L damper) with Promat glue K84. Examples of anchors to the fire dividing con- ■ struction → see pages 42 to 44...

  • Page 42: Suspension Systems

    TPM 157/22 Suspension systems Fixing SEDM-L to the solid wall / solid shaft wall construction with Ablative Coated Batt system View A N => number of blades FOR: A < 500 => 1 anchor A ≥ 500 => 2 anchor FOR: B = 430 and 630 =>...
  • Page 43 TPM 157/22 Fixing SEDM-L to the gypsum wall / gypsum shaft wall construction with Ablative Coated Batt system View A View A - grid from "C" profile The method of mounting must meet the minimum requirements ■ for attachment in accordance with national regulations.
  • Page 44 Fixing element/steel bracket for connecting damper to the wall Fixing element/steel bracket for connecting damper to the wall (optional accessories MANDIK, a.s. or sheet metal min. thickness 2 mm and min. width 60 mm) Installation hols M8 bolt assemply (bolt M8x55 mm, 2 pcs large washer M8, nut M8)

  • Page 45: Technical Data

    ξ coefficient of local pressure loss for the nominal damper section → see pages 46 to 49 Determination of pressure loss by using diagram ρ = 1,2 kg/m Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 45...
  • Page 46 0,579 0,516 0,487 0,471 0,460 0,453 0,447 0,443 0,440 1150 0,578 0,515 0,487 0,470 0,460 0,452 0,447 0,443 0,439 1200 0,577 0,515 0,486 0,470 0,459 0,452 0,446 0,442 0,439 Page 46 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...
  • Page 47 2,199 2,080 2,026 1,995 1,975 1,960 1,950 1,942 1,936 1150 2,198 2,079 2,024 1,993 1,973 1,959 1,949 1,941 1,935 1200 2,197 2,078 2,023 1,993 1,972 1,958 1,948 1,940 1,934 Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 47...
  • Page 48 2,112 2,003 1,953 1,924 1,905 1,893 1,883 1,876 1,870 1150 2,111 2,001 1,951 1,923 1,905 1,892 1,882 1,875 1,869 1200 2,110 2,000 1,951 1,922 1,904 1,891 1,881 1,874 1,868 Page 48 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...
  • Page 49 4,545 4,269 4,143 4,072 4,025 3,993 3,969 3,950 3,936 1150 4,542 4,266 4,141 4,069 4,023 3,990 3,966 3,948 3,933 1200 4,540 4,264 4,139 4,067 4,021 3,988 3,964 3,946 3,931 Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 49...

  • Page 50: Noise Data - Level Of Acoustic Output Corrected With Filter A

    1430 1630 1830 2030 1000 1050 1100 1150 1200 Air velocity 3 m/s Level of acoustic output [dB] 1030 1230 1430 1630 1830 2030 1000 1050 1100 1150 1200 Page 50 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...
  • Page 51 1430 1630 1830 2030 1000 1050 1100 1150 1200 Air velocity 5 m/s Level of acoustic output [dB] 1030 1230 1430 1630 1830 2030 1000 1050 1100 1150 1200 Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 51...
  • Page 52 1430 1630 1830 2030 1000 1050 1100 1150 1200 Air velocity 8 m/s Level of acoustic output [dB] 1030 1230 1430 1630 1830 2030 1000 1050 1100 1150 1200 Page 52 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...
  • Page 53 1430 1630 1830 2030 1000 1050 1100 1150 1200 Air velocity 12 m/s Level of acoustic output [dB] 1030 1230 1430 1630 1830 2030 1000 1050 1100 1150 1200 Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 53...

  • Page 54: Material, Finishing

    Any other requirements for the design shall be considered atypical and shall be addressed on an individual basis. IV. INSPECTION, TESTING The appliance is constructed and preset by the manufacturer, its operation is dependent on proper installation and ■ adjustment. Page 54 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...

  • Page 55: Transportation And Storage

    All effective safety standards and directives must be obse- ■ rved during damper assembly. Manual operation ■ Without power supply, the damper can be operated ■ manually and fixed in any required position. Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 55...

  • Page 56: Electrical Connection Of The Actuator In Protection Box

    Dimensions also apply to the top and bottom Drilling areas for routing the connection cable to the actuator example drilled holes Example of position of holes in the wall of the box, without pre-manufactured slot Page 56 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...

  • Page 57: Connection Of The Control Module Mdpm & Mdcm Interfaces Inside Protection Box

    Seal up the space around cable with fire resistant mastic (HILTI CFS-S ACR, PROMASTOP) or equivalent. ■ Let the mastic harden. ■ Drilling areas for routing the connection cable of modul to the actuator Dimensions of protection box Version 2022-12-20 SEDM-L - Smoke extraction damper - multi Page 57...

  • Page 58: Entry Into Service And Revisions

    Actuator housing cover detail Spare parts Spare parts are supplied only on basis of an order. ■ Page 58 SEDM-L - Smoke extraction damper - multi Version 2022-12-20...

  • Page 59: Product Data

    M2 - flange and grille over damper** design size AxB EXAMPLE: SEDM-L 1200x2030 - .44/M2/– 1200x2030-damper size, .44-damper design, M2-flange and grille over damper, –without flange and grile on right side Dampers design Additional digit with actuating mechanism BEN, BEE, BE for 230V...
