HLP-C Inverters
V. Wiring

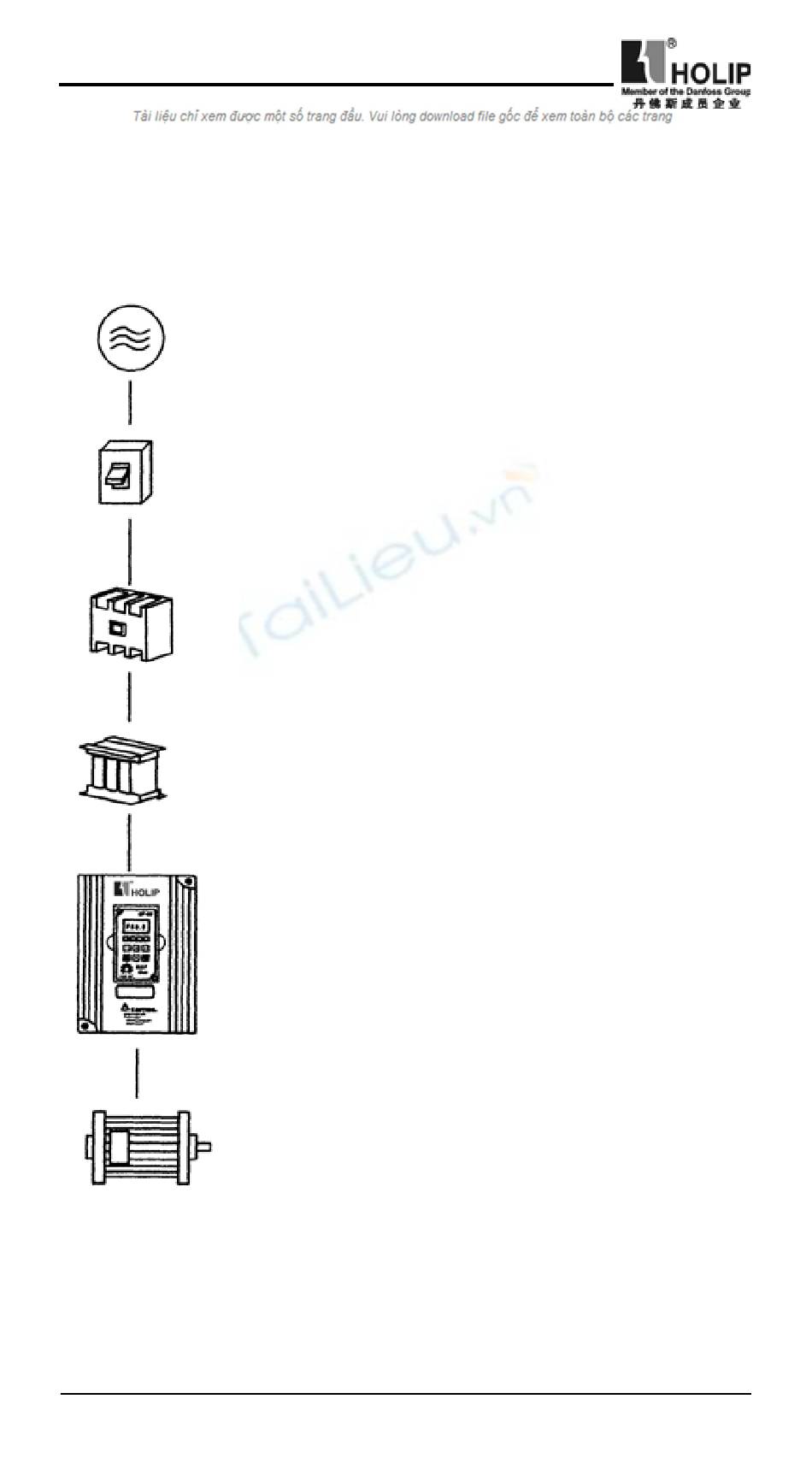

⑴ Main Circuit Schematic Diagram

Power supply: Verify that the inverter's rated
voltage coincides with AC power supply voltage
to avoid a damage of the inverter.
No fuse breaker: Refer to the related list.
Ground fault circuit interrupter ：
Use one of anti-high harmonic.
Magnetic contactor:
Note: Do not use the magnetic contactor as the
power supply on/off button for the inverter.
AC reactor: It is recommended to install a AC
reactor for power factor improvement if the
intput capacity is more than 1000KVA.
Inverter:
● Be sure to make correct connections of the
main circuit wires and control signal wires of
the inverter.
● Be sure to make correct setting of parameters
for the inverter.
-  -
