FOS-5152 Series
L2 Managed Fiber Switch with 48
100/1000Mbps SFP Ports and 4 1Gbps/10Gbps
SFP+ Uplink Ports
User's Guide
Version: 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOS-5152 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for CTS FOS-5152 Series

  • Page 1 FOS-5152 Series L2 Managed Fiber Switch with 48 100/1000Mbps SFP Ports and 4 1Gbps/10Gbps SFP+ Uplink Ports User’s Guide Version: 1.0...
  • Page 2: Revision History

    This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Trademarks CTS is a registered trademark of Connection Technology Systems Inc. All trademarks belong to their respective proprietors Contents subject to change without prior notice.
  • Page 3: Cts Contact Information

    421 32 Västra Frölunda, Sweden Hirschstettner Straße 19-21/Stiege I Tel: +46-31-221980 A-1220 Vienna, Austria info@ctsystem.se E-mail: Tel: +43-1-235 05 66-0 cts_ce@ctsystem.com E-mail: CTS Connection Technology Systems DE GmbH An den Bergen 17, 60437 Frankfurt am Main, Germany Tel: +491711051295 cts_de@ctsystem.com E-mail:...
  • Page 4: Table Of Contents

    Table of Contents Revision History ..............................ii CTS CONTACT INFORMATION ....................... III TABLE OF CONTENTS ..........................IV CHAPTER 1. INTRODUCTION ........................2 1.1 O FOS-5152 ..........................2 VERVIEW OF 1.2 K .............................. 3 EATURES 1.3 F & R ..........................5...
  • Page 5 4.1.1 Local Check ............................. 22 4.1.2 Remote Check ..........................23 4.2 H ....................23 ARDWARE EPLACEMENT ROCEDURES 4.3 F ..........................23 IRMWARE PGRADE...
  • Page 7 About this manual In this user’s guide, it will not only clearly introduce CTS FOS-5152 Managed Switch but tell you how to install this Managed Switch with detailed instructions. Organization of the Manual  Chapter 1 “Introduction” describes the features of the Managed Switch ...
  • Page 8: Chapter 1. Introduction

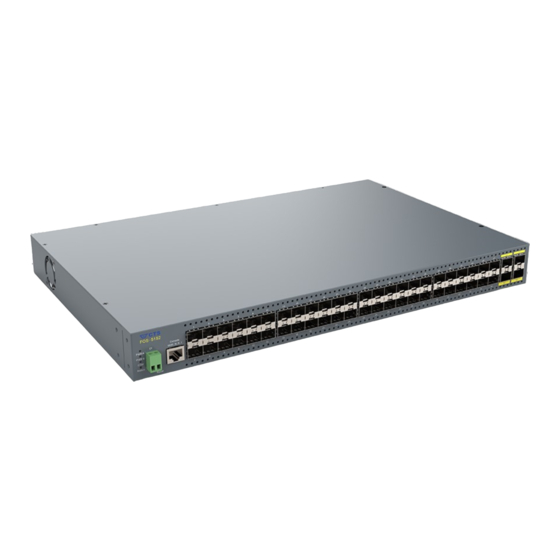

    Introduction Introduction CTS’s Managed Switch is designed to meet the emerging FTTX & Metro Ethernet requirements. Its low profile appearance with 1U height and the standard rack-mounted size achieve the highest density within a single rack. When massive fiber ports need to be deployed, the Managed Switch provides the best performance and price ratio.
  • Page 9: Key Features

    Introduction 1.2 Key Features  19 inch, 1U high  48 x 100/1000Base-X ports IEEE 802.3u/802.3z compliance SFP Slot  4 x 1G/10GBase-R SFP+ ports IEEE 802.3z compliance IEEE 802.3ae 10Gb/s Ethernet SFP+ Slot  Switching Features Store & forward switching Non-blocking switching fabric:176Gbps Mac address table:32K Packet buffer total 16Mbit...
  • Page 10 Introduction Support the fan speed and internal power voltage monitoring for the system diagnostics Support intelligent transceiver diagnostic (DDMI & threshold detection for the transceivers, which can also send alarm before the situation gets critical) Support MVR (Multicast VLAN Registration) Support Selective Q-in-Q Support DHCP Auto-Provision via DHCP option 60/43 for firmware and configuration ...
  • Page 11: Front & Rear Panels

    Introduction 1.3 Front & Rear Panels 1.3.1 Front Panel The Managed Switch provides one fixed power module or two fixed power modules for redundancy purpose. Depending on your physical environment requirements, the type of power module is selectable and could be either AC input or DC input. Figure 1-1.
  • Page 12 Introduction LEDs:  Includes Power LEDs, COM LED, Status LED, LEDs of SFP 1~48 ports and LEDs of SFP+ 49~52 ports. For more details on LEDs description, please refer to Section 1.4 LED Definitions. Publication date: August 19, 2020 Revision 1.0...
  • Page 13: Rear Panel

    Introduction 1.3.2 Rear Panel Figure 1-2. FOS-5152 Managed Switch Rear Panel The interface on the rear panel of the Managed Switch is described below: FANs (Fixed):  Used for device’s heat dissipation. For more details on these fans’ state and speed, please refer to FOS-5152 Network Management User’s Manual.
  • Page 14: Led Definitions

    Introduction 1.4 LED Definitions The Managed Switch is Plug & Play compliant. The real-time operational status can be monitored through a set of LED indicators located on the front panel. Figure 1-3. LEDs of FOS-5152 Managed Switch Power A/B LED The power status of the Managed Switch is indicated by the Power A/B LED on the front panel of the device.
  • Page 15 Introduction COM LED The console status is indicated by the COM LED on the front panel of the device. Color Operation Either the console port is not activated or no session exists. Green Lit when the console port is activated and the session exists. SFP 1~48 Port LEDs Color Operation...
  • Page 16: Cable Specifications

    Introduction 1.5 Cable Specifications The following table contains various cable specifications for the Managed Switch. Please make sure that you use the proper cable when connecting the Managed Switch. Cable Type Description Multi-mode fiber module(2km) / Single-mode fiber 100BASE-FX module 1000BASE-SX Multi-mode fiber module (550m) 1000BASE-LX...
  • Page 17: Chapter 2. Installation

    Installation Installation To properly install the FOS-5152 Managed Switch, please follow the procedures listed below. These procedures will be respectively described in detail in the following sections.  Installation Requirements  Checking the Package Contents  Installing the Managed Switch ...
  • Page 18: Installation Requirements

    Installation 2.1 Installation Requirements Basic requirements for installation are as follows:  Environmental conditions  One power outlet  Proper ventilation  Proper isolation to electrical noise, radio, etc.  Required SFP/SFP+ Transceiver  Rack mounting tools 2.2 Checking the Package Contents Unpack the package carefully and check the package contents.
  • Page 19: Installing The Managed Switch

    Installation 2.3 Installing the Managed Switch Multi-installation methods are provided for FOS-5152 switch. Either you can install the Managed Switch on a flat surface or mount it in a standard 19-inch network equipment rack/on the wall. CAUTION To prevent any damage or failure of the Managed Switch, please DO NOT block the ventilation FAN holes.
  • Page 20: Rack Installation

    Installation 2.3.2 Rack Installation In the following section, we will take FOS-5152 Managed Switch for example to install a 19-inch switch in a standard 19-inch network equipment rack. WARNING! Please mount the Switch firmly in rack, otherwise it may fall and cause the system damage and possible injury to personnel.
  • Page 21: Wall-Mounting Installation

    Installation 2.3.3 Wall-Mounting Installation Besides the aforementioned methods, to mount the Managed Switch on the wall is quite easy, please also follow the procedures listed below for step-by-step instructions. Step 1. Remove the supplied rack mounting brackets from the switch: 1.1.
  • Page 22 Installation Figure 2-3. FOS-5152 Switch Wall-mounting Step 4. Select a proper space to drill 2 holes on the wall upon the distance between mounting holes of the brackets at both sides of the switch. Step 5. Align the mounting holes in the brackets with the holes you drill on the wall, and insert the screws supplied through the mounting bracket and into the holes on the wall.
  • Page 23 Installation 2.4 Grounding the Managed Switch Grounding helps to limit the effects of noise due to electromagnetic interference (EMI). Be sure to install the ground connection from the ground screw to the grounding surface before connecting devices. Figure 2-5 Grounding Wiring for FOS-5152 Publication date: October 15, 2020 Revision 1.0...
  • Page 24: Powering On The Managed Switch

    Installation 2.5 Powering on the Managed Switch The Managed Switch can be used with AC power supply 100-240 V, 50–60 Hz, 0.77A~0.34A or DC power supply 48V (Range: 44~52V), 1.54A. After the Managed Switch is turned on, the Power LED indicators should light in green color and the FAN should spin.
  • Page 25: Removing Sfp/Sfp+ Modules

    Installation 2.7.2 Removing SFP/SFP+ Modules To disconnect an LC/SC connector, use the following guidelines: 1. Press down and hold the locking clips on the upper side of the optic cable. 2. Pull the optic cable out to release it from the transceiver. 3.
  • Page 26: Chapter 3. Peration

    Operation Operation A built-in management module of Managed Switch provides users flexible interfaces to configure, control and monitor the system remotely and locally. To know the further information about the operation of Managed Switch, please refer to FOS-5152 Network Management User’s Manual for the detailed management functions and required installation and operation procedures.
  • Page 27 Operation SNMP Management SNMP is also In-Band-Management and requires a network connection to the Managed Switch. The Managed Switch private Management Information Bases (MIB) is provided for SNMP-based network management program to configure, control and monitor the system. Web Management Web Management is done over the network.
  • Page 28: Chapter 4. Maintenance

    Maintenance Maintenance This Managed Switch is easy to maintain. The procedures are suggested when you would like to identify faults, perform hardware replacement and firmware upgrade. 4.1 Fault Identification Identifying faults can greatly reduce the times required to find problem and solution. Users may perform local check or remote check to find the problems.
  • Page 29 Maintenance 4.1.2 Remote Check Users may check the Managed Switch through SNMP manager remotely. For detailed procedures, please refer to the Network Management User’s Manual. 4.2 Hardware Replacement Procedures WARNING! The Managed Switch contains no user-serviceable parts. DO NOT, UNDER ANY CIRCUMSTANCES, open and attempt to repair it.
  • Page 31 18F-6, No.79, Sec.1, Xintai 5th Rd., XiZhi Dist., New Taipei City 221, Taiwan(R.O.C) Tel: +886-2-2698-9661 Fax: +886-2-2698-9662 Dir.Line:+886-2-2698-9201 www.ctsystem.com...
