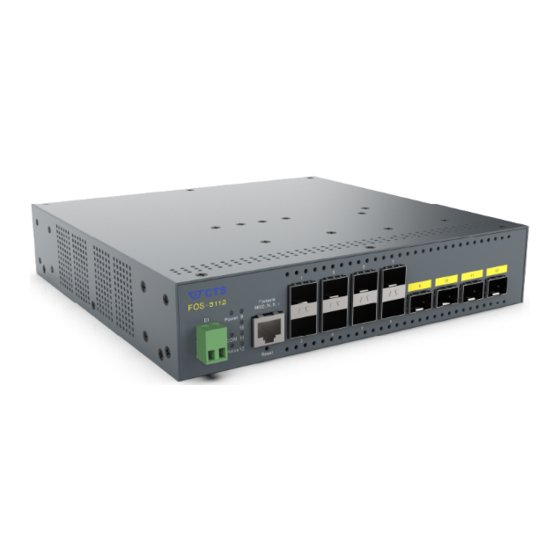

- Page 1 FOS-5112 8-port 100/1000Base-X SFP + 4-port 1G/10GBase-R SFP+ L2 Managed Fiber Switch User’s Guide Version:...
-
Page 2: Revision History
This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Trademarks CTS is a registered trademark of Connection Technology Systems Inc. All trademarks belong to their respective proprietor Contents subject to change without prior notice. -
Page 3: Cts Contact Information
CTS Contact Information Headquarters/Manufacturer: ▓ Connection Technology Systems Inc. 18F-6, No.79, Sec.1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan(R.O.C.) Tel: +886-2-2698-9661 Fax: +886-2-2698-3960 Sales Direct Line:+886-2-2698-9201 www.ctsystem.com Global Offices: ▓ Connection Technology USA Connection Technology Systems Japan 40538 La Purissima Way, Higobashi Bldg. -
Page 4: Table Of Contents
Table of Contents Revision History ..............................ii CTS CONTACT INFORMATION ....................III TABLE OF CONTENTS ........................IV CHAPTER 1. INTRODUCTION ....................... 7 1.1 O FOS-5112 ..........................7 VERVIEW OF 1.2 K ..............................8 EATURES 1.3 F & R ..........................10... - Page 5 CHAPTER 4. MAINTENANCE ..................... 31 4.1 F ..........................31 AULT DENTIFICATION 4.1.1 Local Check ............................31 4.1.2 Remote Check ..........................32 4.2 H ....................32 ARDWARE EPLACEMENT ROCEDURES 4.3 F ............................ 32 IRMWARE PGRADE...
- Page 6 About this manual In this user’s guide, it will not only clearly introduce CTS FOS-5112 Managed Switch but tell you how to install this Managed Switch with detailed instructions. Organization of the Manual Chapter 1 “Introduction” describes the features of the Managed Switch ...
-
Page 7: Chapter 1. Introduction
With the height of 1U and the half-size rack design in appearance, FOS-5112 can be used in closet wiring as well, which is especially suitable for the small cabinet and narrow space installation environment. -
Page 8: Key Features
Installation 1.2 Key Features 8.5 inch, 1U high 8 x 100/1000Base-X ports IEEE 802.3u/802.3z compliance SFP Slot 4 x 1G/10GBase-R SFP+ ports IEEE 802.3z compliance IEEE 802.3ae 10Gb/s Ethernet Support auto-speed for SFP+ fiber ports SFP+ Slot ... - Page 9 Installation Warm Reload Sticky MAC Address function Support internal power voltage monitoring for the system diagnostics Support MVR (Multicast VLAN Registration) Support Selective Q-in-Q Support DHCP Auto-Provision via DHCP option 60/43 for firmware and configuration Management Functions Console Telnet & SSH/CLI Web (HTTP &...
-
Page 10: Front & Rear Panels
Installation 1.3 Front & Rear Panels 1.3.1 Front Panel Figure 1-1. FOS-5112 Managed Switch Front Panel The interfaces on the front panel of the Managed Switch are described below: 8 x 100/1000Base-X SFP ports (Ports 1-8) 4 x 1G/10GBase-R SFP+ UPLINK ports (Ports 9-12) Reset Button: ... - Page 11 Installation LEDs: Includes Power LED, Status LED, COM LED, and LEDs of Fiber 1~12 ports. For more details on LEDs description, please refer to Section 1.4 LED Definitions.
-
Page 12: Rear Panel
The type of power module can be either AC or DC input. Figure 1-2. Rear Panel of FOS-5112 with 1 AC Power Module Figure 1-3. Rear Panel of FOS-5112 with 1 DC Power Module The interface on the rear panel of the Managed Switch is described below: Power module and Connector: ... -
Page 13: Led Definitions
The Managed Switch is Plug & Play compliant. The real-time operational status can be monitored through a set of LED indicators located in the front panel. Figure 1-4. LEDs of FOS-5112 Managed Switch Power LED The power status of the Managed Switch is indicated by the Power LED on the front panel of the device. - Page 14 Installation COM LED The console status is indicated by the COM LED on the front panel of the device. Color Operation Either the console port is not activated or no session exists. Lit when the console port is activated and the session Green exists.
-
Page 15: Cable Specifications
Installation 1.5 Cable Specifications The following table contains various cable specifications for the Managed Switch. Please make sure that you use the proper cable when connecting the Managed Switch. Cable Type Description Multi-mode fiber module(2km) / Single-mode fiber 100BASE-FX module 1000BASE-SX Multi-mode fiber module (550m) 1000BASE-LX... -
Page 16: Chapter 2. Installation
Installation Installation To properly install the Managed Switch, please follow the procedures listed below. These procedures will be respectively described in detail in the following sections. Installation Requirements Checking the Package Contents Installing the Managed Switch Grounding the Managed Switch ... -
Page 17: Installation Requirements
Installation 2.1 Installation Requirements Basic requirements for installation are as follows: Environmental conditions One power outlet Proper ventilation Proper isolation to electrical noise, radio, etc. Required SFP/SFP+ Transceiver Rack mounting tools 2.2 Checking the Package Contents Unpack the package carefully and check the package contents. -
Page 18: Installing The Managed Switch
Installation 2.3 Installing the Managed Switch You can install the Managed Switch on a flat surface or mount it in a standard 19-inch network equipment rack. CAUTION To prevent any damage or failure of the Managed Switch, please DO NOT block the ventilation holes. -
Page 19: Rack Installation
Installation 2.3.2 Rack Installation Either you can install an 8.5-inch switch or two 8.5-inch switches in a standard 19-inch network equipment rack. In the following sections, we will take a Managed Switch for example to separately demonstrate how to mount it or them in this size of rack space. WARNING! Please mount the Switch firmly in rack, otherwise it may fall and cause the system damage and possible injury to personnel. - Page 20 Installation Step 3. Then, tighten the screws with the screwdriver to secure each bracket. Step 4. Align the mounting holes in the brackets with the desired holes in the rack, and insert screws through each bracket and into the rack. Step 5.
-
Page 21: Install Two Managed Switches In A Rack Using The Combine Kit
Installation 2.3.2.2 Install Two Managed Switches in a Rack Using the Combine To install two sets of the 8.5-inch Managed Switch in a single rack space, you need the 19-inch rack-mount kit as well as the combine kit, supplied with the switch. Also follow the procedures listed below for step-by-step instructions to install your switches in this rack space: Step 1. - Page 22 Installation 2.4. On the left side of the switch, attach one ⼐-shaped fixed piece in the reverse direction by inserting the screws provided in the combine kit through this fixed piece and into the mounting holes in the switch. (See Figure 2-3) 2.5.
- Page 23 Installation Step 5. Tighten the screws with the screwdriver to secure each middle mount. Step 6. Align the mounting holes in the regular brackets on both sides (the left side of the left switch and the right side of the right switch) with the desired holes in the rack, and insert the screws through each bracket and into the rack.
-
Page 24: Install A Single/Two Managed Switches In A Rack Using 19-Inch Rack-Mount Bracket
Installation 2.3.2.3 Install a Single/Two Managed Switches in a Rack Using 19- inch Rack-mount Bracket Besides the mounting methods we previously mentioned, to install one or two sets of the Managed Switches in a single rack space; alternatively, you can use the 19-inch rack-mount bracket supplied with the switch. - Page 25 Installation 19-inch Rack- mount Bracket Figure 2-6. Install the19-inch rack-mount bracket for two-switch mounting Step 3. Align the mounting holes on both sides of this 19-inch rack-mount bracket with the desired holes in the rack, and insert the screws through this bracket and into the rack. Step 4.
-
Page 26: Grounding The Managed Switch
Grounding helps to limit the effects of noise due to electromagnetic interference (EMI). Be sure to install the ground connection from the ground screw to the grounding surface before connecting devices. Figure 2-7 Grounding Wiring for FOS-5112 with 1 AC Power Module Figure 2-8 Grounding Wiring for FOS-5112 with 1 DC Power Module... -
Page 27: Powering On The Managed Switch
Installation 2.5 Powering on the Managed Switch The Managed Switch can be used with AC power supply 100-240VAC, 50–60 Hz, 0.4~0.2A or DC power supply 48VDC, 0.4A. After the Managed Switch is turned on, the Power LED indicators should light in green color. For more details about the power LED description, please refer to Section 1.4 LED Definitions. -
Page 28: Removing Sfp/Sfp+ Modules
Installation 2.7.2 Removing SFP/SFP+ Modules To disconnect an LC/SC connector, use the following guidelines: 1. Press down and hold the locking clips on the upper side of the optic cable. 2. Pull the optic cable out to release it from the transceiver. 3. -
Page 29: Chapter 3. Operation
A built-in management module of Managed Switch provides users flexible interfaces to configure, control and monitor the system remotely and locally. To know the further information about the operation of Managed Switch, please refer to FOS-5112 Network Management User’s Manual for the detailed management functions and required installation and operation procedures. - Page 30 Operation SNMP Management SNMP is also In-Band-Management and requires a network connection to the Managed Switch. The Managed Switch private Management Information Bases (MIB) is provided for SNMP-based network management program to configure, control and monitor the system. Web Management Web Management is done over the network.
- Page 31 Maintenance Maintenance This Managed Switch is easy to maintain. The procedures are suggested when you would like to identify faults, perform hardware replacement and do the firmware upgrade. 4.1 Fault Identification Identifying faults can greatly reduce the times required to find problem and solution. Users may perform local check or remote check to find the problems.
- Page 32 Maintenance 4.1.2 Remote Check Users may check the Managed Switch through SNMP manager remotely. For detailed procedures, please refer to the Network Management User’s Manual. 4.2 Hardware Replacement Procedures WARNING! The Managed Switch contains no user-serviceable parts. DO NOT, UNDER ANY CIRCUMSTANCES, open and attempt to repair it.
- Page 33 18F-6, No.79, Sec.1, Xintai 5th Rd., XiZhi Dist., New Taipei City 221, Taiwan(R.O.C) Tel: +886-2-2698-9661 Fax: +886-2-2698-9662 Dir.Line:+886-2-2698-9201 www.ctsystem.com...
