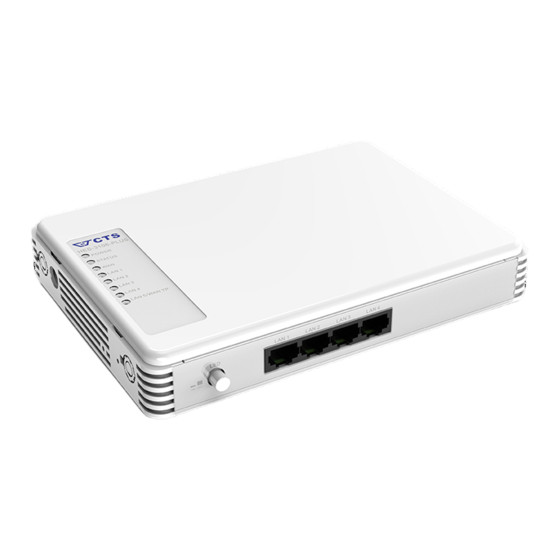

- Page 1 HES-3106-PLUS SERIES 5 PORTS 10/100/1000BASE-T ETHERNET MANAGED SWITCH WITH 1 PORT 1000BASE-X or 100/1000BASE-X UPLINK User’s Guide Version 0.92...
- Page 2 Trademarks CTS is a registered trademark of Connection Technology Systems Inc.. Contents subject to revision without prior notice. All other trademarks remain the property of their respective owners. Copyright Statement Copyright 2012 Connection Technology Systems Inc.. This publication may not be reproduced as a whole or in part, in any way whatsoever unless prior consent has been obtained from Connection Technology Systems Inc..
- Page 3 Revision History Version Date Description 0.90 2014/08/26 First Release 0.91 20150216 Add Non-Blocking Switching Fabric Section 1.1 0.92 20150806 Revise photo Section 1.2...
-
Page 4: Table Of Contents
Table of Contents 1. INTRODUCTION ................... 5 1.1 The Managed Ethernet Switch ..............5 1.2 Appearance ....................6 2. INSTALLATION ..................... 9 2.1 Installation Requirements ................. 9 2.2 Checking the Package Contents .............. 9 2.3 Installing the Managed Switch ..............10 2.4 Powering ON .................. -
Page 5: Introduction
1. INTRODUCTION Thank you for choosing this Managed Ethernet Switch. The Managed Switch can provide the best performance and price ratio when multiple copper ports need to be deployed in networking environment. 1.1 The Managed Ethernet Switch With 5 10/100/1000Mbps RJ-45 ports, this compact Managed Switch provides high performance store-and-forward switching capability plus other advanced features such as QoS, VLAN, etc.. -
Page 6: Appearance
Management: Telnet/SSH/SNMP/Web interface Storm Control DHCP Client DHCP Auto-Provisioning Text Based Config SFF-8472 (digital diagnostic management interface for SFP) Power Down Trap RMON: FTP/TFTP upgrade 1.2 Appearance Front Panel ➋ ➌... - Page 7 Rear Panel ➎ Figure 2. Rear Panel for 5-Port 10/100/1000Base-T plus 1-Port 1000Base-X or 100/1000Base-X Uplink Ethernet Managed Switch with CATV RF Module 100/1000Mbps or 1000Mbps F/O Port ➎ CATV Fiber Input (optional) Left and Right Panel ➏ Figure 3.
- Page 8 Top Panel ➑ Figure 5. Top Panel with LEDs ➑ LED: For detail definitions, please refer to chapter 3.1 LED Definitions Cable Specifications The following table contains various cable specifications for the Managed Switch. Please make sure that you use the proper cable when connecting the Managed Switch.
-
Page 9: Installation
2. INSTALLATION To properly install the Managed Switch, please follow the procedures listed below. Procedures covered in this chapter are described below in separate sections. Installation Requirements Unpacking the Managed Switch Installing the Managed Switch Powering on the Managed Switch ... -
Page 10: Installing The Managed Switch
2.3 Installing the Managed Switch CAUTION To prevent any damage or failure of the Managed Switch, please DO NOT block the ventilation FAN holes. Use the following guidelines when choosing a place to install the Switch: Firm and steady flat surface. ... -
Page 11: Connecting The Switch To Network
2.5 Connecting the Switch to Network Connect to Network This Managed Switch has 5 or 6 10/100/1000Mbps RJ-45 ports on the front panel. These ports can be inserted by 10/100/1000Base-T cables, connecting to the end devices. The connection of the fiber port on the rear panel must be matched, i.e. -
Page 12: Operation
3. OPERATION The Managed Switch is Plug & Play compliant. Real-time operational status can be monitored through a set of LED indicators located on the top panel. A built-in management module provides users with flexible interfaces to configure, control and monitor the complete system remotely. 3.1 LED Definitions Definition Color... -
Page 13: Maintenance
4. MAINTENANCE It is easy to use and maintain this Managed Switch. The procedures are suggested when you want to identify faults, perform hardware replacement and firmware upgrading. 4.1 Fault Identification Identifying faults can greatly reduce the time required to find the problem and solution. -
Page 14: Hardware Replacement Procedures
4.2 Hardware Replacement Procedures WARNING! The Managed Switch contains no user-serviceable parts. DO NOT, UNDER ANY CIRCUMSTANCES, open and attempt to repair it. Failure to observe this warning could result in personal injury or death from electrical shock. Failure to observe the above warning will immediately void any Warranty. 4.3 Firmware Upgrade This Managed Switch may perform firmware upgrading when required.
