- Page 1 FOS-5128 Series L2 Managed Fiber Switch with 24 100/1000Mbps SFP Ports and 4 1Gbps/10Gbps SFP+ Uplink Ports User’s Guide Version: 1.0...
-
Page 2: Revision History
This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Trademarks CTS is a registered trademark of Connection Technology Systems Inc. All trademarks belong to their respective proprietors Contents subject to change without prior notice. -
Page 3: Cts Contact Information
CTS Contact Information Headquarters/Manufacturer: ▓ Connection Technology Systems Inc. 18F-6, No.79, Sec.1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan(R.O.C.) Tel: +886-2-2698-9661 Fax: +886-2-2698-3960 Sales Direct Line:+886-2-2698-9201 www.ctsystem.com Global Offices: ▓ Connection Technology USA Connection Technology Systems Japan 40538 La Purissima Way, Higobashi Bldg. -
Page 4: Table Of Contents
Table of Contents Revision History ..................ii CTS CONTACT INFORMATION ..............III TABLE OF CONTENTS ................IV CHAPTER 1. INTRODUCTION ............... 2 1.1 O FOS-5128 ..............2 VERVIEW OF 1.2 K .................. 3 EATURES 1.3 F & R ................. 5... -
Page 5: About This Manual
About this manual In this user’s guide, it will not only clearly introduce CTS FOS-5128 Managed Switch but tell you how to install this Managed Switch with detailed instructions. Organization of the Manual Chapter 1 “Introduction” describes the features of the Managed Switch ... -
Page 6: Chapter 1. Introduction
Introduction Introduction CTS’s Managed Switch is designed to meet the emerging FTTX & Metro Ethernet requirements. Its low profile appearance with 1U height and the standard rack-mounted size achieve the highest density within a single rack. When massive fiber ports need to be deployed, the Managed Switch provides the best performance and price ratio. -
Page 7: Key Features
Introduction 1.2 Key Features 19 inch, 1U high 24 x 100/1000Base-X ports IEEE 802.3u/802.3z compliance Support Auto-Sensing for fiber ports SFP Slot 4 x 1G/10GBase-R SFP+ ports IEEE 802.3z compliance IEEE 802.3ae 10Gb/s Ethernet Support Auto-Sensing for fiber ports SFP+ Slot ... - Page 8 Introduction Support the fan speed and internal power voltage monitoring for the system diagnostics Management Functions Console Telnet & SSH/CLI Web (HTTP & HTTPS) RADIUS for authentication SNMP v1/v2c/v3 and network management SNMP Power-Down Trap Private, RFC-1213, RMON MIBs Port mirroring FTP, TFTP, HTTP server and client firmware upgrade TACACS+ for authentication...
-
Page 9: Front & Rear Panels

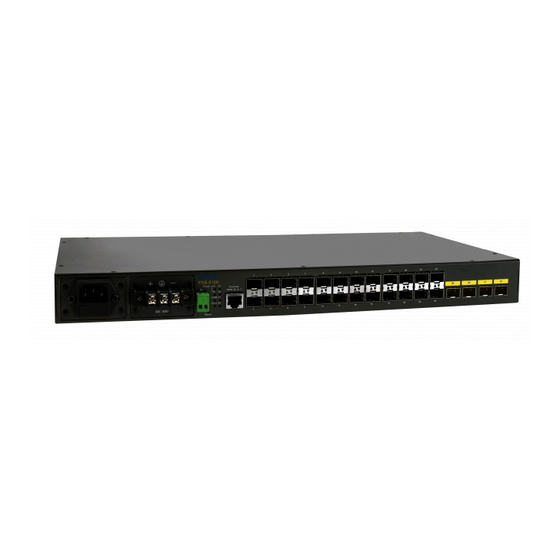

Introduction 1.3 Front & Rear Panels 1.3.1 Front Panel The Managed Switch provides one fixed power module or two fixed power modules for redundancy purpose. Depending on your physical environment requirements, the type of power module is selectable and could be either AC input or DC input. Figure 1-1. - Page 10 Introduction LEDs: Includes Power LEDs, COM LED, Status LED, LEDs of SFP 1~24 ports and LEDs of SFP+ 25~28 ports. For more details on LEDs description, please refer to Section 1.4 LED Definitions. Power module and Connector: AC power connection: 100-240V, 50/60Hz, 0.6A~0.4A ...
-
Page 11: Rear Panel
Introduction 1.3.2 Rear Panel Figure 1-2. FOS-5128 Managed Switch Rear Panel The interface on the rear panel of the Managed Switch is described below: FANs (Fixed): Used for device’s heat dissipation. For more details on these fans’ state and speed, please refer to FOS-5128 Network Management User’s Manual. -
Page 12: Led Definitions
Introduction 1.4 LED Definitions The Managed Switch is Plug & Play compliant. The real-time operational status can be monitored through a set of LED indicators located on the front panel. Figure 1-3. LEDs of FOS-5128 Managed Switch Power A/B LED The power status of the Managed Switch is indicated by the Power A/B LED on the front panel of the device. - Page 13 Introduction COM LED The console status is indicated by the COM LED on the front panel of the device. Color Operation Either the console port is not activated or no session exists. Green Lit when the console port is activated and the session exists. SFP 1~24 Port LEDs Color Operation...
-
Page 14: Cable Specifications
Introduction 1.5 Cable Specifications The following table contains various cable specifications for the Managed Switch. Please make sure that you use the proper cable when connecting the Managed Switch. Cable Type Description Multi-mode fiber module(2km) / Single-mode fiber 100BASE-FX module 1000BASE-SX Multi-mode fiber module (550m) 1000BASE-LX... -
Page 15: Chapter 2. Installation
Installation Installation To properly install the FOS-5128 Managed Switch, please follow the procedures listed below. These procedures will be respectively described in detail in the following sections. Installation Requirements Checking the Package Contents Installing the Managed Switch ... -
Page 16: Installation Requirements
Installation 2.1 Installation Requirements Basic requirements for installation are as follows: Environmental conditions One power outlet Proper ventilation Proper isolation to electrical noise, radio, etc. Required SFP/SFP+ Transceiver Rack mounting tools 2.2 Checking the Package Contents Unpack the package carefully and check the package contents. -
Page 17: Installing The Managed Switch
Installation 2.3 Installing the Managed Switch You can install the FOS-5128 switch on a flat surface or mount it in a standard 19-inch network equipment rack. CAUTION To prevent any damage or failure of the Managed Switch, please DO NOT block the ventilation FAN holes. -
Page 18: Rack Installation
Installation 2.3.2 Rack Installation In the following section, we will take the FOS-5128 Managed Switch for example to install a 19-inch switch in a standard 19-inch network equipment rack. WARNING! Please mount the Switch firmly in rack, otherwise it may fall and cause the system damage and possible injury to personnel. -
Page 19: Powering On The Managed Switch
Installation 2.4 Powering on the Managed Switch The Managed Switch can be used with AC power supply 100-240 V, 50–60 Hz, 0.6A~0.4A or DC power supply 48V (Range: 44~52V), 1A. After the Managed Switch is turned on, the Power LED indicators should light in green color and the FAN should spin. -
Page 20: Removing Sfp/Sfp+ Modules
Installation 2.6.2 Removing SFP/SFP+ Modules To disconnect an LC/SC connector, use the following guidelines: 1. Press down and hold the locking clips on the upper side of the optic cable. 2. Pull the optic cable out to release it from the transceiver. 3. -
Page 21: Chapter 3. Operation
Operation Operation A built-in management module of Managed Switch provides users flexible interfaces to configure, control and monitor the system remotely and locally. To know the further information about the operation of Managed Switch, please refer to FOS-5128 Network Management User’s Manual for the detailed management functions and required installation and operation procedures. - Page 22 Operation SNMP Management SNMP is also In-Band-Management and requires a network connection to the Managed Switch. The Managed Switch private Management Information Bases (MIB) is provided for SNMP-based network management program to configure, control and monitor the system. Web Management Web Management is done over the network.
-
Page 23: Chapter 4. Maintenance
Maintenance Maintenance This Managed Switch is easy to maintain. The procedures are suggested when you would like to identify faults, perform hardware replacement and firmware upgrade. 4.1 Fault Identification Identifying faults can greatly reduce the times required to find problem and solution. Users may perform local check or remote check to find the problems. -
Page 24: Remote Check
Maintenance 4.1.2 Remote Check Users may check the Managed Switch through SNMP manager remotely. For detailed procedures, please refer to the Network Management User’s Manual. 4.2 Hardware Replacement Procedures WARNING! The Managed Switch contains no user-serviceable parts. DO NOT, UNDER ANY CIRCUMSTANCES, open and attempt to repair it. - Page 25 18F-6, No.79, Sec.1, Xintai 5th Rd., XiZhi Dist., New Taipei City 221, Taiwan(R.O.C) Tel: +886-2-2698-9661 Fax: +886-2-2698-9662 Dir.Line:+886-2-2698-9201 www.ctsystem.com...
