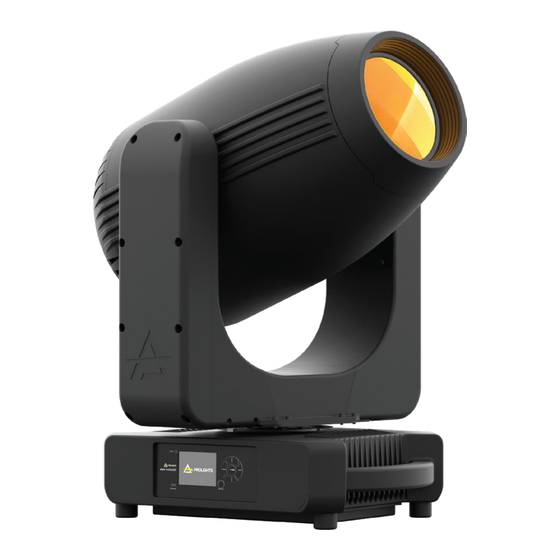

ProLights Astra Profile600IP User Manual

ProLights Astra Profile600IP User Manual

Ip65 led moving profile, with a 600w white source
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Astra Profile600IP
IP65 LED Moving Profile, with a 600W
White source
USER MANUAL
English version
REV.02-03/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Astra Profile600IP and is the answer not in the manual?

Questions and answers

Related Manuals for ProLights Astra Profile600IP

Summary of Contents for ProLights Astra Profile600IP

  • Page 1 Astra Profile600IP IP65 LED Moving Profile, with a 600W White source USER MANUAL English version REV.02-03/23...
  • Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.

  • Page 3: Table Of Contents

    20 - BLADE AND CMY MODULES REMOVAL 21 - TEST OF IP65 RATING 22 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............45 REPLACING THE FUSE ....................45 VISUAL CHECK OF PRODUCT HOUSING ..............45 TROUBLESHOOTING ..................... 46 PROLIGHTS - Astra Profile600IP...

  • Page 4: Safety Information

    • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •...
  • Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
  • Page 6 • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD). • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). • 2014/53/EU - Radio Equipment Directive (RED). Other approvals PROLIGHTS - Astra Profile600IP...

  • Page 7: Packaging

    • FCLASTRAH420IP: flight case for 2 pcs of ASTRAHYB420 / ASTRAHYB420IP / ASTRAPROFILE600IP. • IPTESTBOX: portable vacuum and pressure tester for ProLights IP fixtures. • C6002A/B: slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt, aluminium / black.

  • Page 8: Pan And Tilt Lock

    3 - PAN AND TILT LOCK PAN Mechanism lock and release TILT Mechanism lock and release Fig. 02 PROLIGHTS - Astra Profile600IP...

  • Page 9: Installation

    Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. RSR0670A/B C6002 A/B Steel security cable clamp OSIP 108 mm [4.2 in] Fig.03 PROLIGHTS - Astra Profile600IP...

  • Page 10: Connection To The Mains Supply

    • Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Astra Profile600IP...

  • Page 11: Product Overview

    8. ANTENNA of Wireless DMX Receiver internal module. 9. ETHERCON CONNECTORS IN / OUT signal. 10. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T10AL 250V). 11. GORE VALVE. Fig 04 PROLIGHTS - Astra Profile600IP...

  • Page 12: Dmx Connection

    ... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 06 - Example 54 DMX channels configuration PROLIGHTS - Astra Profile600IP...

  • Page 13: Construction Of The Dmx Termination

    (Protocol, Net, Subnet, Universe, Start Channel and IP Address, Ethernet to DMX No/Yes). • IP addresses recommended: 002.xxx.xxx.xxx or 010.xxx.xxx.xxx. • The submask net is fixed at 255.0.0.0. PROLIGHTS - Astra Profile600IP...

  • Page 14: Ethernet To Dmx Operations

    NOTE: Artnet and sACN have higher priority on DMX if they are connected to transmitter. NOTE: Do not use IN TO WDMX and ETH TO DMX simultaneously, this will cause data conflict on DMX output signal. PROLIGHTS - Astra Profile600IP...

  • Page 15: Operation As A Wireless Receiver

    • The wireless icon on the receiver display indicates the received signal strength. WDMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - Astra Profile600IP...

  • Page 16: Control Panel

    • Switch on the display using backup battery. Hold for 5s. • Switch off display by pressing button 4 for 5s while on being on Home screen. • LED indicator for Wireless dmx (color red and green). • LED indicator for Ethernet network.(color orange). PROLIGHTS - Astra Profile600IP...

  • Page 17: Menu Structure

    DMX out port. SET UP SCREEN BACKLIGHT ON/10S/20S/30S Allows you to select the timing after that display will switch automatically off when unactive. FLIP DISPLAY ON/OFF/AUTO Allows you to rotate the display by 180°. PROLIGHTS - Astra Profile600IP...
  • Page 18 VERSE SQUARE LAW AUTO/FAST/ DIMMER SPEED Linear dimmer behaviour. MEDIUM/SLOW Dimmer curve adding long fade. Dimmer curve adding medium fade. Dimmer curve adding little fade. LED FREQUENCY 600HZ/1200HZ/ Select PWM frequency. 2000 HZ/ 4000 HZ/ 6000HZ/25KHZ/50KHz PROLIGHTS - Astra Profile600IP...
  • Page 19 PRISM PRISM ROTATION FROST IRIS ZOOM FOCUS FRAME ROT BLADE 1 POSITON BLADE 1 ROT … BLADE 4 POSITON BLADE 4 ROT CALIBRA- For the calibration of these functions. PASSWORD TION 050 password for user reset. PROLIGHTS - Astra Profile600IP...
  • Page 20 ANIMATION FOCUS INDEX ANIMATION ROTA- TION BLADE 1 POSITION BLADE 1 ROT BLADE 2 POSITION BLADE 2 ROT BLADE 3 POSITION BLADE 3 ROT BLADE 4 POSITON BLADE 4 ROT ENCODER RESET FRAME ROT PAN ANGLE PROLIGHTS - Astra Profile600IP...
  • Page 21 COLOR WHEEL ROT GOBO ROT GOBO FINE 4F PRISM 4F PRISM ROT 4F PRISM ROT FINE FROST FROSTO FINE IRIS IRIS FINE ZOOM ZOOM FINE FOCUS FOCUS FINE ANIMATION INS ANIMATION ROTA- TION ANIMATION ROT FINE PROLIGHTS - Astra Profile600IP...
  • Page 22 LED PCB TEMP,… NEAR SOURCE FAN, FAN SPEED RPM AND % To see the speed of the fans. BASE FAN,… WIRELESS To check the wireless quality. QUALITY CHANNEL PAN... To see the dmx value of those channels. VALUE PROLIGHTS - Astra Profile600IP...

  • Page 23: Shortcut

    Directly flip display without enter inside menu. Reset without pan/tilt Fixture will be powered on without reset on pan/ DOWN then power on movements tilt movements. ENTER + UP then power on Bootloader Force firmware upgrade. PROLIGHTS - Astra Profile600IP...

  • Page 24: Rdm Functions

    CURVE_DESCRIPTION 0x0344 (Support required only if CURVE is supported) OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION (Support required only if OUTPUT_RESPONSE_ 0x0346 TIME is supported) MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION (Support required only if MODULATION_ FRE- 0x0348 QUENCY is supported) PROLIGHTS - Astra Profile600IP...
  • Page 25 0x0641 LOCK_STATE_DESCRIPTION 0x0642 Control IDENTIFY_DEVICE 0x1000 RESET_DEVICE 0x1001 POWER_STATE 0x1010 PERFORM_SELFTEST 0x1020 SELF_TEST_DESCRIPTION 0x1021 CAPTURE_PRESET 0x1030 PRESET_PLAYBACK 0x1031 IDENTIFY_MODE 0x1040 PRESET_INFO 0x1041 PRESET_STATUS 0x1042 PRESET_MERGEMODE 0x1043 POWER_ON_SELF_TEST 0x1044 IP & DNS IPV4_CURRENT_ADDRESS 0x0705 Configuration IPV4_STATIC_ADDRESS 0x0706 PROLIGHTS - Astra Profile600IP...

  • Page 26: Dmx Charts

    Tilt = 128 Tilt = 255 Tilt movement range: 270° Pan movement range: 540 Pan = 0 Pan = 128 Pan = 255 Tilt = 80 Tilt = 80 Tilt = 80 Display Display Display Fig. 09 PROLIGHTS - Astra Profile600IP...

  • Page 27: Dmx Chart Summary

    Blade 1 rotation Focus Blade 2 position Focus Fine Blade 2 rotation Animation Insertion Blade 3 position Animation Rotation Blade 3 rotation Animation Rot. Fine Blade 4 position Blade 1 position Blade 4 rotation Blade 1 position fine PROLIGHTS - Astra Profile600IP...
  • Page 28 Blade 3 position fine Blade 3 rotation Blade 3 rotation fine Blade 4 position Blade 4 position fine Blade 4 rotation Blade 4 rotation fine Frame rotation Frame rotation fine Frame macros Frame macros speed Control PROLIGHTS - Astra Profile600IP...
  • Page 29 FOREST GREEN + DEEP ORANGE DEEP ORANGE Color Wheel DEEP ORANGE + MAGENTA MAGENTA MAGENTA + CONGO BLUE CONGO BLUE CONGO BLUE + OPEN Reserved Reserved Forward Spin From fast to slow Stop Stop Reverse Spin From slow to fast PROLIGHTS - Astra Profile600IP...
  • Page 30 Effect 3 Open and close from slow to fast Iris Fine Lineary from 0% to 100% (Indexed) Zoom Lineary from in to out Zoom Fine Lineary from in to out Focus Lineary from in to out PROLIGHTS - Astra Profile600IP...
  • Page 31 Swivelling from 0 degrees to +30 degrees Blade 4 rotation fine Lineary from 0 to 100% Swivelling from -45 degrees towards 0 degrees Frame rotation 0 degrees Swivelling from 0 degrees to +45 degrees Frame rotation fine Lineary from 0 to 100% PROLIGHTS - Astra Profile600IP...
  • Page 32 MOVEMENT IN BLACKOUT OFF COLOR WHEEL BLACKOUT ON (index) COLOR WHEEL BLACKOUT OFF (index) COLOR WHEEL CONTINUOUS MOVEMENT (index) COLOR WHEEL STEP MOVEMENT (index) ROTATING GOBO WHEEL BLACKOUT ON (index) ROTATING GOBO WHEEL BLACKOUT OFF (index) PROLIGHTS - Astra Profile600IP...
  • Page 33 RESET COLOR WHEEL RESET GOBO WHEEL RESET GOBO ROTATION RESET ANIMATION RESET ANIMATION ROTATION RESET PRISM RESET PRISM ROTATION RESET FROST RESET IRIS RESET ZOOM RESET FOCUS RESET FRAME ROT RESET BLADE 1 POSITON RESET BLADE 1 ROT PROLIGHTS - Astra Profile600IP...
  • Page 34 Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved FACTORY DEFAULT OF CONTROL FUNCTIONS PROLIGHTS - Astra Profile600IP...

  • Page 35: Rotating Gobos Wheel

    • Ø of image (ID)= 22 mm. • Thickness= up to 3 mm. Up to 3 mm OD = Ø29.9 mm [1.2 in] [0.12 in] ATTENTION! Load with mirror surface toward the light source. Fig. 10 PROLIGHTS - Astra Profile600IP...

  • Page 36: Color Wheel

    15 - COLOR WHEEL Fig. 11 PROLIGHTS - Astra Profile600IP...

  • Page 37: Animation Wheel

    16 - ANIMATION WHEEL Fig. 12 PROLIGHTS - Astra Profile600IP...

  • Page 38: Error Messages

    This error message indicates that an overheating on the [LED TEMPERATURE lamp has occurred and the lamp has been switched OFF by ERROR] the product protection system. [LED TEMP. SENSOR LAMP sensor damaged (open or in short circuit). ERROR] PROLIGHTS - Astra Profile600IP...
  • Page 39 Failure detected during the reset of the ZOOM system, if [ZOOM ERROR] the focus lens is not located in its default position. [ANIMATION WHEEL Failure detected during the reset of the animation wheel, if ERROR] this wheel is not located in the default position. PROLIGHTS - Astra Profile600IP...
  • Page 40 MENT, if the focus lens is not located in its default position. [BLADE 4 ROTATION Failure detected during the reset of the BLADE 4 ROTA- ERROR] TION, if the focus lens is not located in its default position. PROLIGHTS - Astra Profile600IP...
  • Page 41 IDENTIFICATION OF ELECTRONIC BOARDS 7U PCB 6U PCB 5U PCB 4U PCB 3U PCB 2U PCB 1U PCB Fig. 13 PROLIGHTS - Astra Profile600IP...

  • Page 42: Periodical Cleaning

    AND TILT LOCK" paragrap (pag. 6). Loosen and remove the marked screws and open- ing the head covers (1) from both sides. Safety cable Unclip the safety cable on both sides (2). Fig. 14 PROLIGHTS - Astra Profile600IP...

  • Page 43: Gobos Replacement

    19 - GOBOS REPLACEMENT Open the head covers (see the "PERIODICAL CLEANING" paragraph, points 1 and 2). Gently remove the gobo holder from the gobo wheel (3, 4). Remove the spring and the gobo (5, 6). Fig. 15 PROLIGHTS - Astra Profile600IP...

  • Page 44: Blade And Cmy Modules Removal

    (1-B). Push up the focus lens (2-A) and then remove the Blade module (2-B). Unscrew the two marked screws on the other side(3-A) and disconnect the two connectors (3-B). Then remove the CMY module (4-A). Fig. 16 PROLIGHTS - Astra Profile600IP...

  • Page 45: Test Of Ip65 Rating

    21 - TEST OF IP65 RATING To check sealing after servicing use the IPTESTBOX. Remove the gore valve from the connections panel. Connect the air hose to the IPTESTBOX by inserting the quick-connect fitting into the coupler. PROLIGHTS - Astra Profile600IP...
  • Page 46 Remove the rear cover by unscrewing the six screws (4). Then remove the gore valve on the rear con- nection heatsilk module (5) and insert the hex socket cap head included in the IPTESTBOX box (6). For the operating procedure using the instrument, refer to the IPTESTBOX user manual. Fig. 17 PROLIGHTS - Astra Profile600IP...

  • Page 47: Maintenance

    WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.

  • Page 48: Troubleshooting

    • Check if the Fuse is intact and eventually replace it if fault necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in...
  • Page 49 Note...
  • Page 50 Note...
  • Page 52 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
