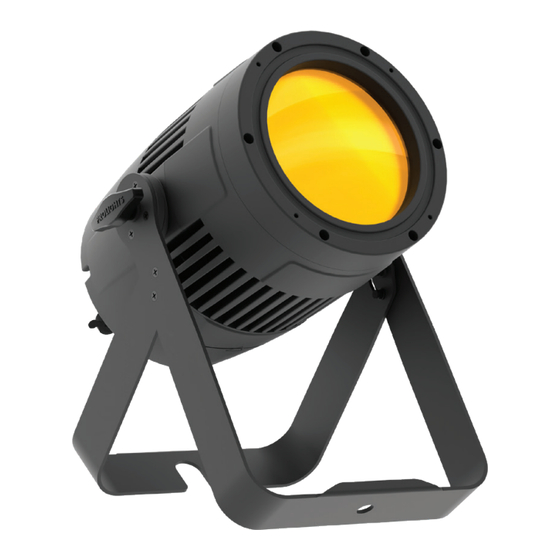

- Page 1 StudioCob PFC2 150W IP65 rated full colour COB LED Par USER MANUAL English version REV.01-09/21...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
-
Page 3: Table Of Contents
FILTER FRAME (CODE STUDIOCOBTPG - OPTIONAL) ..........17 BARN DOOR (CODE STUDIOCOBBD - OPTIONAL) ............. 18 OPTIC (CODE STUDIOCOBPLUSL18/30/60 - OPTIONAL) ..........19 13 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............20 VISUAL CHECK OF PRODUCT HOUSING ..............20 TROUBLESHOOTING ..................... 21 PROLIGHTS - StudioCob PFC2... -
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - StudioCob PFC2...
-
Page 7: Packaging
• STUDIOCOBBD: barn door 4 directional flaps to adjust the light beam, f. frame included; • FCLCOBPLUS: flight case for 8 STUDIOCOBPLUS; • UPBOX1U: firmware uploader kit, USB IN, 3p XLR DMX OUT. 2 - TECHNICAL DRAWING Weight: 5.6 kg - 12.34 lbs Fig. 01 PROLIGHTS - StudioCob PFC2... -
Page 8: Installation
Do not use any type of clamp that does not completely encircle the structure when fastened. RSR0630A/B C6002 steel security cable clamp 215 mm 8.5 in 45 mm 1.8 in Ø13 mm Ø0.5 in Fig. 02 PROLIGHTS - StudioCob PFC2... -
Page 9: Connection To The Mains Supply
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - StudioCob PFC2... -
Page 10: Product Overview
6. USER INTERFACE with display and buttons for access to the control panel functions. 7. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C; 8. POWER OUT: power output for connection of multiple units in series; 9. GORE VALVE. Fig. 03 PROLIGHTS - StudioCob PFC2... -
Page 11: Dmx Connection
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 05 - Example 10 DMX channels configuration PROLIGHTS - StudioCob PFC2... -
Page 12: Construction Of The Dmx Termination
2. Reach the addressing menu, then select the DMX ADDRESS settings. 3. Select the address from 1 to 512 using the navigation arrows/buttons and confirm by pressing ENTER. 4. Press Menu to exit and return to the Home screen. PROLIGHTS - StudioCob PFC2... -
Page 13: Control Panel
• UP: browse upwards through the menu list and increases the numeric value displayed. • DOWN: browse downwards through the menu list and decreases the numeric value displayed. • ENTER: used to confirm the current menu or confirm the current function value or option within a menu. PROLIGHTS - StudioCob PFC2... -
Page 14: Menu Structure
Manual Red (125-255) Green (125- 255) Blue (125-255) White (125- 255) 600 Hz Select PWM frequency. 1200 Hz Frequency 2000 Hz 4000 Hz 25 KHz Auto Speed Fan Mode Select the product Fan mode. High Speed PROLIGHTS - StudioCob PFC2... - Page 15 (password) in order to access to the user menu : UP, DOWN, UP, DOWN, ENTER 12 Information Fixture Hours 9999h To view infromation about the unit. Version V1.0 15D00207**** 13 Reset Factory To reset the unit to factory default settings. PROLIGHTS - StudioCob PFC2...
-
Page 16: Rdm Functions
Setup DMX_PERSONALITY_DESCRIPTION 0x00E1 DMX_START_ADDRESS 0x00F0 Dimmer CURVE 0x0343 Settings CURVE_DESCRIPTION 0x0344 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 Sensors SENSOR_DEFINITION 0x0200 SENSOR_VALUE 0x0201 Power/Lamp DEVICE_HOURS 0x0400 Settings LAMP_HOURS 0x0401 LAMP_STRIKES 0x0402 Display DISPLAY_INVERT 0x0500 Settings Control IDENTIFY_DEVICE 0x1000 PROLIGHTS - StudioCob PFC2... -
Page 17: Dmx Charts
11 - DMX CHARTS 4 Ch 6 Ch 10 Ch DIMMER DIMMER GREEN BLUE GREEN GREEN WHITE BLUE BLUE WHITE WHITE STROBE STROBE COLOR FUNCTION COLOR PRESETS WHITE PRESETS COLOR MACRO COLOR MACRO SPEED DIMMER FADE PROLIGHTS - StudioCob PFC2... - Page 18 Auto Program 5 (Auto program1 - 4) 211 ÷ 255 COLOR MACRO SPEED Color macro speed slow to fast 000 ÷ 255 DIMMER FADE Dimmer fade from fast to slow 000 ÷ 255 Slow is the same of DIMMER3 (the slowest) PROLIGHTS - StudioCob PFC2...
-
Page 19: Accessories Installation
Push the pin (A) and open upward the gel frame lock (B). Insert the filter frame (C) from above into the guides (DETAIL) of the previously mounted holder. Then close the gel frame lock. NOTE: To remove the accessory, reverse the procedure. Fig. 08 PROLIGHTS - StudioCob PFC2... -
Page 20: Barn Door (Code Studiocobbd - Optional)
Push the pin (A) and open upward the frame lock gel (B). Insert the barn doors (C) into from above by inserting the linking holders into the guides (DETAIL) of the previously mounted holder. Then close the frame lock gel. NOTE: To remove the accessory, reverse the procedure. Fig. 09 PROLIGHTS - StudioCob PFC2... -
Page 21: Optic (Code Studiocobplusl18/30/60 - Optional)
Remove the screws (A), washer (B), front cover (C), glass lens (D), filter (E). Insert the optic by replacing the one already present, and follow the reverse procedure to reassemble the parts. NOTE: To remove the accessory, reverse the procedure. Fig. 10 PROLIGHTS - StudioCob PFC2... -
Page 22: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 23: Troubleshooting
• Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in... - Page 24 Note...
