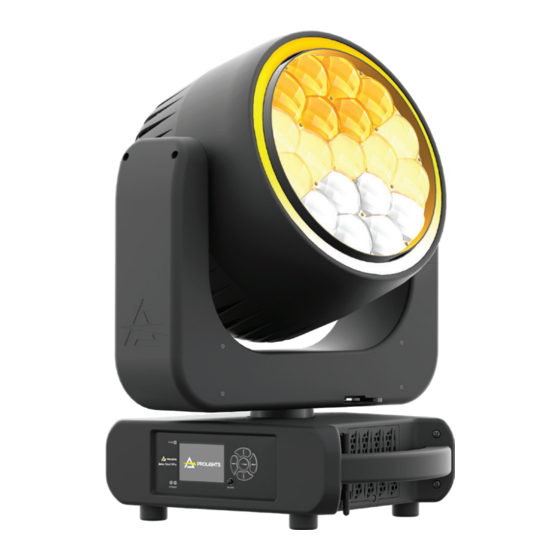

- Page 1 Astra Wash19Pix 19x40W RGBW moving wash light with 4°-54° zoom, pixel control and pixel ring USER MANUAL English version REV.01-04/21...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
-
Page 3: Table Of Contents
17 - ACCESSORIES INSTALLATION EGG CRATE (ASTRAW19PEC - OPTIONAL)..............33 18 - PERIODICAL CLEANING 19 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............35 REPLACING THE FUSE ....................35 VISUAL CHECK OF PRODUCT HOUSING ..............35 TROUBLESHOOTING ..................... 36 PROLIGHTS - Astra Wash19Pix... -
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •... - Page 5 • This device emits potentially dangerous optical radiation and is identified in the cat- egory of Risk Group 2 according to EN 62471. Radio receiver* • This product contains a radio receiver and/or transmitter: • Maximum output power: 17 dBm. • Frequency band: 2.4 GHz. PROLIGHTS - Astra Wash19Pix...
- Page 6 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
-
Page 7: Packaging
• UPBOX2: firmware uploader kit, USB IN, 3-pin XLR DMX OUT. 2 - TECHNICAL DRAWING 410 mm 250 mm 308 mm [16.1 in] [9.8 in] [12.1 in] * The measure includes the zoom. Fig. 01 Weight: 17.4 kg - 38.36 lbs PROLIGHTS - Astra Wash19Pix... -
Page 8: Pan And Tilt Lock
3 - PAN AND TILT LOCK PAN Mechanism lock and release TILT Mechanism lock and release Fig. 02 PROLIGHTS - Astra Wash19Pix... -
Page 9: Installation
Do not use any type of clamp that does not completely encircle the structure when fastened. C6002 RSR0630A/B clamp Steel security cable OSIP 94 mm [3.7 in] Dimensions are in mm / in - Fig.03 PROLIGHTS - Astra Wash19Pix... -
Page 10: Connection To The Mains Supply
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Astra Wash19Pix... -
Page 11: Product Overview
9. POWER IN: for connection to the Mains 100-240V~/50-60Hz; 10. POWER OUT: power output for connection of multiple units in series; 11. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T8A 250V). 8 10 11 Fig 04 PROLIGHTS - Astra Wash19Pix... -
Page 12: Dmx Connection
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 06 - Example 6 DMX channels configuration PROLIGHTS - Astra Wash19Pix... -
Page 13: Construction Of The Dmx Termination
(Protocol, Net, Subnet, Universe, Start Channel and IP Address, Ethernet to DMX No/Yes). • About the IP addresses is recommended to set 002.xxx.xxx.xxx or 010.xxx.xxx.xxx. • The submask net is fixed at 255.0.0.0. PROLIGHTS - Astra Wash19Pix... -
Page 14: Ethernet To Dmx Operations
If the ASTRAWASH19PIX protocol selected is ArtNet / sACN, the WDMX module will retransmit the DMX values contained in the ArtNet / sACN signal received from the ASTRAWASH19PIX. NOTE: Artnet and sACN have higher priority on DMX if they are connected to transmitter. PROLIGHTS - Astra Wash19Pix... -
Page 15: Operation As A Wireless Receiver
• The wireless icon on the receiver display indicates the received signal strength. WDMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - Astra Wash19Pix... -
Page 16: Control Panel
• Used to access the menu tree or to return a previous menu window. • To switch on the display throught the battery. • LED indicator for Wireless dmx (color red and green). • LED indicator for Ethernet network.(color orange). PROLIGHTS - Astra Wash19Pix... -
Page 17: Menu Structure
IN TO WDMX (TX) Enable/Disable the transmission of the dmx from the transmitter to the receiver via wdmx. WDMX TO DMX (RX) ON/OFF Enable/Disable retransmission from the receiver to the other units connected by cable to the receiver itself PROLIGHTS - Astra Wash19Pix... - Page 18 STANDARD HOME POSITION To choose the home position. CUSTOM 0° CUSTOM P DEGREE To choose pan values in case of Custom position. 315° CUSTOM T DEGREE To choose tilt values in case of Custom position. 100% PROLIGHTS - Astra Wash19Pix...
- Page 19 To transfer the same menu CONFIGURATION ADDRESS settings of one fixtures to all the other in the daisy chain, WITH DMX including or not the dmx ADDRESS address. ADVANCED RESET To reset these functions. PAN & TILT ZOOM PROLIGHTS - Astra Wash19Pix...
- Page 20 PAN, TILT... To see any error messages. MESSAGE FIXTURE XXXXXXXXXX View informations about fixture MODEL model. RDM UID (READ AND RESET) View ID for the RDM control. SOFTWARE 1U01 V1.0.00... View informations about soft- VERSION ware version. PROLIGHTS - Astra Wash19Pix...
-
Page 21: Shortcut
Directly flip display without enter inside menu. after power on DOWN Reset without Fixture will be powered on without reset on pan/tilt then power on pan/tilt movements movements. ENTER + UP Bootloader Force firmware upgrade. then power on PROLIGHTS - Astra Wash19Pix... -
Page 22: Rdm Functions
0x0140 DMX_FAIL_MODE 0x0141 DMX_STARTUP_MODE 0x0142 Dimmer DIMMER_INFO 0x0340 Settings MINIMUM_LEVEL 0x0341 MAXIMUM_LEVEL 0x0342 CURVE 0x0343 CURVE_DESCRIPTION 0x0344 OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 Sensors SENSOR_DEFINITION 0x0200 SENSOR_VALUE 0x0201 RECORD_SENSORS 0x0202 BURN_IN 0x0440 PROLIGHTS - Astra Wash19Pix... - Page 23 IP & DNS IPV4_CURRENT_ADDRESS 0x0705 Configuration IPV4_STATIC_ADDRESS 0x0706 Custom Pids FIX. ENGINE PROT. (0:W/DMX 1:sACN 2:ArtNet) PIX. ENGINE PROT. (0:W/DMX 1:sACN 2:ArtNet 3:sAK 4:ArtK) PIX. ENGINE ADDR. (1-512) PIX. ENGINE MODE (0:Off 1:Ring 2:Pixel) KLINGNET (0:Off 1:On) PROLIGHTS - Astra Wash19Pix...
-
Page 24: Dmx Charts
Ring Foreground Green Pattern Transition Ring Dimmer Ring Foreground Blue Foreground Intensity Ring Pattern Foreground Strobe Ring Pattern Speed Background Intensity Ring Pattern Fade Background Strobe Ring Pattern Transition Background Red Ring Foreground Intensity Background Green PROLIGHTS - Astra Wash19Pix... -
Page 25: Pixel Engine
Green 2 Green 2 Blue 2 Blue 2 White 2 White 2 Red 3 Red 3 Green 3 Green 3 Blue 3 Blue 3 White 3 White 3 Red 19 Green 19 Blue 19 White 19 PROLIGHTS - Astra Wash19Pix... - Page 26 044 ÷ 045 Deep Golden Amber 046 ÷ 047 Medium Blue 048 ÷ 049 Bright Pink 050 ÷ 051 Mauve 052 ÷ 053 Dark Green 054 ÷ 055 Lee Green 056 ÷ 057 Dark Blue 058 ÷ 059 PROLIGHTS - Astra Wash19Pix...
- Page 27 10000K 252 ÷ 253 Full On 254 ÷ 255 Linear from 2800K to 10000K 000 ÷ 255 ZOOM Lineary from 0% to 100% 000 ÷ 255 ZOOM FINE Lineary from 0% to 100% 000 ÷ 255 PROLIGHTS - Astra Wash19Pix...
- Page 28 114 ÷ 115 RESET ALL 116 ÷ 117 RESET PAN 118 ÷ 119 RESET TILT 120 ÷ 121 RESET PAN/TILT 122 ÷ 123 RESET ZOOM 124 ÷ 253 Reserved 254 ÷ 255 FACTORY DEFAULT OF CONTROL FUNCTIONS PROLIGHTS - Astra Wash19Pix...
- Page 29 Pulse in from slow to fast 065 ÷ 125 Open 126 ÷ 127 Pulse out from slow to fast 128 ÷ 188 Open 189 ÷ 190 Random from slow to fast 191 ÷ 251 Open 252 ÷ 255 PROLIGHTS - Astra Wash19Pix...
- Page 30 RING PATTERN SPEED Indexing 000 ÷ 127 CW from fast to slow 128 ÷ 190 Stop 191 ÷ 192 CCW from slow to fast 193 ÷ 255 RING PATTERN FADE Lineary from 0% to 100% 000 ÷ 255 PROLIGHTS - Astra Wash19Pix...
- Page 31 252 ÷ 255 RING BACKGROUND RED Lineary from 0% to 100% 000 ÷ 255 RING BACKGROUND GREEN Lineary from 0% to 100% 000 ÷ 255 RING BACKGROUND BLUE Lineary from 0% to 100% 000 ÷ 255 PROLIGHTS - Astra Wash19Pix...
-
Page 32: Ring Layout
14 - RING LAYOUT Fig. 09 15 - PIXEL LAYOUT Fig. 10 PROLIGHTS - Astra Wash19Pix... -
Page 33: Error Messages
One of the blowers for cooling the [LED FAN 1 ERROR] source failed, the source has been Blue switched OFF. One of the blowers for cooling the [LED FAN 2 ERROR] source failed, the source has been Blue switched OFF. PROLIGHTS - Astra Wash19Pix... - Page 34 [RING DRIVER RING DRIVER PCB not detected during Yellow ERROR] reset [LED PCB ERROR] LED PCB 1 not detected during reset Yellow IDENTIFICATION OF ELECTRONIC BOARDS 3U PCB 2U PCB 1U PCB Fig. 11 PROLIGHTS - Astra Wash19Pix...
-
Page 35: Accessories Installation
Before removing rear cover, place the head in a horizontal position and engage both the PAN and TILT locks for added stability. See the "PAN AND TILT LOCK" paragrap. Loosen and remove the marked six screws (1). Then insert the egg crate (2) and fix the six screws (3). Fig. 12 PROLIGHTS - Astra Wash19Pix... -
Page 36: Periodical Cleaning
18 - PERIODICAL CLEANING WARNING! Turn OFF power and allow approximately 20 minutes for the fixture to cool down. Use a soft cloth dampened with any detergent liquid for cleaning to remove the dirt from the optics. Fig. 13 PROLIGHTS - Astra Wash19Pix... -
Page 37: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 38: Troubleshooting
• Check if the Fuse is intact and eventually replace it if fault necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in... - Page 39 Note...
- Page 40 Note...
- Page 41 Note...
- Page 42 Note...
- Page 44 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
