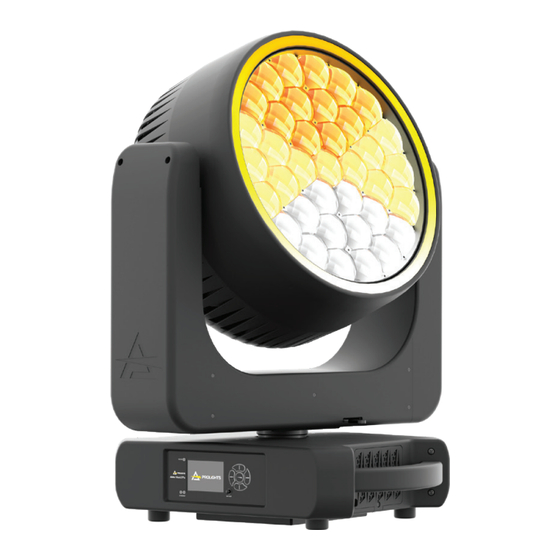

- Page 1 Astra Wash37Pix 37x40W RGBW moving wash light with 4°- 54° zoom, pixel control and pixel ring USER MANUAL English version REV.01-02/22...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
-
Page 3: Table Of Contents
17 - PERIODICAL CLEANING 18 - ACCESSORIES INSTALLATION EGG CRATE (ASTRAW37PEC - OPTIONAL)..............33 19 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............34 REPLACING THE FUSE ....................34 VISUAL CHECK OF PRODUCT HOUSING ..............34 TROUBLESHOOTING ..................... 35 PROLIGHTS - Astra Wash37Pix... -
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •... - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 2. This device must accept any interference received, including interference that may cause undesired operation. Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - Astra Wash37Pix...
-
Page 7: Packaging
• OS24: quick-lock omega bracket; • UPBOX2: firmware uploader kit, USB IN, 3-pin XLR DMX OUT. 2 - TECHNICAL DRAWING The measures include the zoom and the egg crate. Weight: 26.4 kg - 58.20 lbs Fig. 01 PROLIGHTS - Astra Wash37Pix... -
Page 8: Pan And Tilt Lock
3 - PAN AND TILT LOCK PAN Mechanism lock and release TILT Mechanism lock and release Fig. 02 PROLIGHTS - Astra Wash37Pix... -
Page 9: Installation
Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. C6002 RSR1235A/B clamp Steel security cable OS24 108 mm 4.2 in Fig. 02 PROLIGHTS - Astra Wash37Pix... -
Page 10: Connection To The Mains Supply
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Astra Wash37Pix... -
Page 11: Product Overview
8. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T15A 250V). 9. POWER IN: for connection to the Mains 100-240V~/50-60Hz. 10. ANTENNA of Wireless DMX Receiver internal module. 4 5 5 6 Fig. 03 PROLIGHTS - Astra Wash37Pix... -
Page 12: Dmx Connection
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 05 - Example 25 DMX channels configuration PROLIGHTS - Astra Wash37Pix... -
Page 13: Construction Of The Dmx Termination
(Protocol, Net, Subnet, Universe, Start Channel and IP Address, Ethernet to DMX No/Yes). • About the IP addresses is recommended to set 002.xxx.xxx.xxx or 010.xxx.xxx.xxx. • The submask net is fixed at 255.0.0.0. PROLIGHTS - Astra Wash37Pix... -
Page 14: Ethernet To Dmx Operations
If the ASTRAWASH37PIX protocol selected is ArtNet / sACN, the WDMX module will retransmit the DMX values contained in the ArtNet / sACN signal received from the ASTRAWASH7PIX. NOTE: Artnet and sACN have higher priority on DMX if they are connected to transmitter. PROLIGHTS - Astra Wash37Pix... -
Page 15: Operation As A Wireless Receiver
• The wireless icon on the receiver display indicates the received signal strength. WDMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - Astra Wash37Pix... -
Page 16: Control Panel
• Used to access the menu tree or to return a previous menu window. • To switch on the display throught the battery. • LED indicator for Wireless dmx (color red and green). • LED indicator for Ethernet network.(color orange). PROLIGHTS - Astra Wash37Pix... -
Page 17: Menu Structure
Set Universe for sACN protocol. OFF/HTP/ MERGE Set Merge Mode for sACN protocol. MODE ETHERNET TO DMX Enable / Disable DMX retrasmission from sACN/ArtNet signal to DMX out port. KLINGNET Enable / Disable Klingnet functionality for sACN / ArtNet protocols. PROLIGHTS - Astra Wash37Pix... - Page 18 To transfer the same menu settings of CONFIGURATION ADDRESS one fixtures to all the other in the daisy chain, including or not the dmx address. WITH DMX ADDRESS ADVANC- RESET To reset these functions. PAN & TILT ZOOM PROLIGHTS - Astra Wash37Pix...
-
Page 19: Shortcut
Directly flip display without enter inside menu. after power on DOWN Reset without Fixture will be powered on without reset on pan/tilt then power on pan/tilt movements movements. ENTER + UP Bootloader Force firmware upgrade. then power on PROLIGHTS - Astra Wash37Pix... -
Page 20: Rdm Functions
0x0140 DMX_FAIL_MODE 0x0141 DMX_STARTUP_MODE 0x0142 Dimmer DIMMER_INFO 0x0340 Settings MINIMUM_LEVEL 0x0341 MAXIMUM_LEVEL 0x0342 CURVE 0x0343 CURVE_DESCRIPTION 0x0344 OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 Sensors SENSOR_DEFINITION 0x0200 SENSOR_VALUE 0x0201 RECORD_SENSORS 0x0202 BURN_IN 0x0440 PROLIGHTS - Astra Wash37Pix... - Page 21 Custom Pids FIX. ENGINE PROT. (0:W/DMX 1:sACN 0x8010 2:ArtNet) PIX. ENGINE PROT. (0:W/DMX 1:sACN 0x8020 2:ArtNet 3:sAK 4:ArtK 5:K 6:sAN) PIX. ENGINE ADDR. (1-512) 0x8030 PIX. ENGINE MODE (0:Off 1:Ring 2:Pixel) 0x8040 KLINGNET (0:Off 1:On) 0x8050 PROLIGHTS - Astra Wash37Pix...
-
Page 22: Dmx Charts
Ring Foreground Green Pattern Transition Ring Dimmer Ring Foreground Blue Foreground Intensity Ring Pattern Foreground Strobe Ring Pattern Speed Background Intensity Ring Pattern Fade Background Strobe Ring Pattern Transition Background Red Ring Foreground Intensity Background Green PROLIGHTS - Astra Wash37Pix... - Page 23 Ring Background Green Ring Foreground Intensity Ring Background Blue Ring Foreground Strobe Ring Foreground Red Ring Foreground Green Ring Foreground Blue Ring Background Intensity Ring Background Strobe Ring Background Red Ring Background Green Ring Background Blue PROLIGHTS - Astra Wash37Pix...
-
Page 24: Pixel Engine
White 4 White 4 Red 5 Green 5 Blue 5 White 5 Red 6 Green 6 Blue 6 White 6 Red 7 Green 7 Blue 7 White 7 Red 37 Green 37 Blue 37 White 37 PROLIGHTS - Astra Wash37Pix... - Page 25 044 ÷ 045 Deep Golden Amber 046 ÷ 047 Medium Blue 048 ÷ 049 Bright Pink 050 ÷ 051 Mauve 052 ÷ 053 Dark Green 054 ÷ 055 Lee Green 056 ÷ 057 Dark Blue 058 ÷ 059 PROLIGHTS - Astra Wash37Pix...
- Page 26 Lineary from 0% to 100% 000 ÷ 255 ZOOM FINE Lineary from 0% to 100% 000 ÷ 255 CROSSFADE PIXEL ENGINE PROTOCOL Fades from 1 to 2 protocol according to the combination choosed 000 ÷ 255 PROLIGHTS - Astra Wash37Pix...
- Page 27 136 ÷ 137 IN TO WDMX ON (MAIN FIXTURE TO WDMX) 138 ÷ 139 IN TO WDMX ON (PIXEL ENGINE TO WDMX) 140 ÷ 141 Reserved 142 ÷ 253 FACTORY DEFAULT OF CONTROL FUNCTIONS 254 ÷ 255 PROLIGHTS - Astra Wash37Pix...
- Page 28 Pulse in from slow to fast 065 ÷ 125 Open 126 ÷ 127 Pulse out from slow to fast 128 ÷ 188 Open 189 ÷ 190 Random from slow to fast 191 ÷ 251 Open 252 ÷ 255 PROLIGHTS - Astra Wash37Pix...
- Page 29 RING PATTERN SPEED Indexing 000 ÷ 127 CW from fast to slow 128 ÷ 190 Stop 191 ÷ 192 CCW from slow to fast 193 ÷ 255 RING PATTERN FADE Lineary from 0% to 100% 000 ÷ 255 PROLIGHTS - Astra Wash37Pix...
- Page 30 252 ÷ 255 RING BACKGROUND RED Lineary from 0% to 100% 000 ÷ 255 RING BACKGROUND GREEN Lineary from 0% to 100% 000 ÷ 255 RING BACKGROUND BLUE Lineary from 0% to 100% 000 ÷ 255 PROLIGHTS - Astra Wash37Pix...
-
Page 31: Ring Layout
14 - RING LAYOUT Fig. 08 15 - PIXEL LAYOUT Fig. 09 PROLIGHTS - Astra Wash37Pix... -
Page 32: Error Messages
[LED DRIVER overheating in the head has occurred and the Yellow TEMPERATURE ERROR] lamp has been switched OFF by the product protection system. [LED PCB ERROR] LED PCB 1 not detected during reset Yellow PROLIGHTS - Astra Wash37Pix... -
Page 33: Identification Of Electronic Boards
IDENTIFICATION OF ELECTRONIC BOARDS 3U PCB 2U PCB 1U PCB Fig. 10 PROLIGHTS - Astra Wash37Pix... -
Page 34: Periodical Cleaning
17 - PERIODICAL CLEANING WARNING! Turn OFF power and allow approximately 20 minutes for the fixture to cool down. Use a soft cloth dampened with any detergent liquid for cleaning to remove the dirt from the optics. Fig. 11 PROLIGHTS - Astra Wash37Pix... -
Page 35: Accessories Installation
Before removing rear cover, place the head in a horizontal position and engage both the PAN and TILT locks for added stability. See the "PAN AND TILT LOCK" paragrap. Loosen and remove the marked six screws (1). Then insert the egg crate (2) and fix the six screws (3). Fig. 12 PROLIGHTS - Astra Wash37Pix... -
Page 36: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 37: Troubleshooting
• Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in... - Page 38 Note...
- Page 40 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
