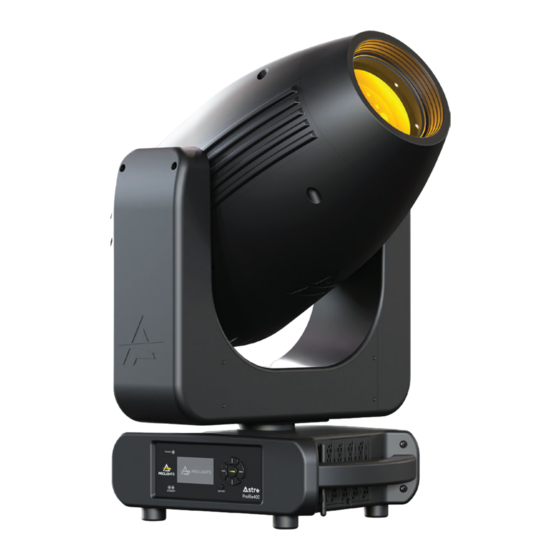

Astra Profile400
Indoor LED Moving Profile, with a
400W White source
USER MANUAL
English version
REV.01-12/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Astra Profile400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProLights Astra Profile400

Summary of Contents for ProLights Astra Profile400

  • Page 1 Astra Profile400 Indoor LED Moving Profile, with a 400W White source USER MANUAL English version REV.01-12/22...
  • Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.

  • Page 3: Table Of Contents

    19 - GOBOS REPLACEMENT 20 - MODULE REMOVAL (ANIMATION, COLOR, GOOS WHEEL) 21 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............43 REPLACING THE FUSE ....................43 VISUAL CHECK OF PRODUCT HOUSING ..............43 TROUBLESHOOTING ..................... 44 PROLIGHTS - Astra Profile400...

  • Page 4: Safety Information

    • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •...
  • Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
  • Page 6 2. This device must accept any interference received, including interference that may cause undesired operation. Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - Astra Profile400...

  • Page 7: Packaging

    • UPBOX2P5: firmware uploader kit, USB IN, 5-pin XLR DMX OUT. 2 - TECHNICAL DRAWING Ø538 mm [21.2 in] 410 mm Ø278 mm 455 mm [16.1 in] [10.9 in] [17.9 in] Fig. 01 Weight: 27,6 kg - 60,84 lbs PROLIGHTS - Astra Profile400...

  • Page 8: Pan And Tilt Lock

    3 - PAN AND TILT LOCK PAN Mechanism lock and release TILT Mechanism lock and release Fig. 02 PROLIGHTS - Astra Profile400...

  • Page 9: Installation

    Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. C6002 RSR0670A/B clamp Steel security cable OS24 108 mm [4.3 in] Fig.03 PROLIGHTS - Astra Profile400...

  • Page 10: Connection To The Mains Supply

    • Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Astra Profile400...

  • Page 11: Product Overview

    9. POWER OUT: power output for connection of multiple units in series. 10. POWER IN: for connection to the Mains 100-240V~/50-60Hz. 11. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T8A 250V). Fig 04 PROLIGHTS - Astra Profile400...

  • Page 12: Dmx Connection

    ... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 06 - Example 54 DMX channels configuration PROLIGHTS - Astra Profile400...

  • Page 13: Construction Of The Dmx Termination

    (Protocol, Net, Subnet, Universe, Start Channel and IP Address, Ethernet to DMX No/Yes). • IP addresses recommended: 002.xxx.xxx.xxx or 010.xxx.xxx.xxx. • The submask net is fixed at 255.0.0.0. PROLIGHTS - Astra Profile400...

  • Page 14: Ethernet To Dmx Operations

    NOTE: Artnet and sACN have higher priority on DMX if they are connected to transmitter. NOTE: Do not use IN TO WDMX and ETH TO DMX simultaneously, this will cause data conflict on DMX output signal. PROLIGHTS - Astra Profile400...

  • Page 15: Operation As A Wireless Receiver

    • The wireless icon on the receiver display indicates the received signal strength. WDMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - Astra Profile400...

  • Page 16: Control Panel

    • Switch on the display using backup battery. Hold for 5s. • Switch off display by pressing button 4 for 5s while on being on Home screen. • LED indicator for Wireless dmx (color red and green). • LED indicator for Ethernet network.(color orange). PROLIGHTS - Astra Profile400...

  • Page 17: Menu Structure

    DMX out port. SET UP SCREEN BACKLIGHT ON/10S/20S/30S Allows you to select the timing after that display will switch automatically off when unactive. FLIP DISPLAY ON/OFF/AUTO Allows you to rotate the display by 180°. PROLIGHTS - Astra Profile400...
  • Page 18 VERSE SQUARE LAW Linear dimmer behaviour. AUTO/FAST/ Dimmer curve adding long fade. DIMMER SPEED MEDIUM/SLOW Dimmer curve adding medium fade. Dimmer curve adding little fade. 600HZ/1200HZ/ Select PWM frequency. LED FREQUENCY 2000 HZ/ 4000 HZ/ 6000HZ/25KHZ/50KHz PROLIGHTS - Astra Profile400...
  • Page 19 PRISM PRISM ROTATION FROST IRIS ZOOM FOCUS FRAME ROT BLADE 1 POSITON BLADE 1 ROT … BLADE 4 POSITON BLADE 4 ROT CALIBRA- For the calibration of these functions. PASSWORD TION 050 password for user reset. PROLIGHTS - Astra Profile400...
  • Page 20 BLADE 1 POSITON BLADE 1 ROT … BLADE 4 POSITON BLADE 4 ROT CLEAR VALUE ON ENCODER RESET ENCODER PCB MANUAL For manual control of the unit. CONTROL PAN (16 BIT) TILT (16 BIT) DIMMER (16 BIT) CYAN PROLIGHTS - Astra Profile400...
  • Page 21 To check the current working hours of the unit. PARTIAL SOURCE HOURS TOTAL To see the total operating hours of the LED source. PARTIAL POWER ON CYCLE TOTAL To see the power cycles of the machine. PARTIAL PROLIGHTS - Astra Profile400...
  • Page 22 To see the dmx value of those channels. VALUE ERROR PAN, TILT... To see any error messages. MESSAGE FIXTURE XXXXXXXXXX View informations about fixture model. MODEL RDM UID View ID for the RDM control. SOFTWARE 1U01 V1.0.00... View informations about software version. VERSION PROLIGHTS - Astra Profile400...

  • Page 23: Shortcut

    0, All other 510 DMX channel value need to be 000. In any case of presence of other values on dmx line (also if out of luminaire range) shortcut mustn't be performed. PROLIGHTS - Astra Profile400...

  • Page 24: Rdm Functions

    CURVE_DESCRIPTION 0x0344 (Support required only if CURVE is supported) OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION (Support required only if OUTPUT_RESPONSE_ 0x0346 TIME is supported) MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION (Support required only if MODULATION_ FRE- 0x0348 QUENCY is supported) PROLIGHTS - Astra Profile400...
  • Page 25 0x0641 LOCK_STATE_DESCRIPTION 0x0642 Control IDENTIFY_DEVICE 0x1000 RESET_DEVICE 0x1001 POWER_STATE 0x1010 PERFORM_SELFTEST 0x1020 SELF_TEST_DESCRIPTION 0x1021 CAPTURE_PRESET 0x1030 PRESET_PLAYBACK 0x1031 IDENTIFY_MODE 0x1040 PRESET_INFO 0x1041 PRESET_STATUS 0x1042 PRESET_MERGEMODE 0x1043 POWER_ON_SELF_TEST 0x1044 IP & DNS IPV4_CURRENT_ADDRESS 0x0705 Configuration IPV4_STATIC_ADDRESS 0x0706 PROLIGHTS - Astra Profile400...

  • Page 26: Dmx Charts

    Tilt = 128 Tilt = 255 Tilt movement range: 270° Pan movement range: 540 Pan = 0 Pan = 128 Pan = 255 Tilt = 80 Tilt = 80 Tilt = 80 Display Display Display Fig. 09 PROLIGHTS - Astra Profile400...

  • Page 27: Dmx Chart Summary

    Blade 1 rotation Focus Blade 2 position Focus Fine Blade 2 rotation Animation Insertion Blade 3 position Animation Rotation Blade 3 rotation Animation Rot. Fine Blade 4 position Blade 1 position Blade 4 rotation Blade 1 position fine PROLIGHTS - Astra Profile400...
  • Page 28 Blade 3 position fine Blade 3 rotation Blade 3 rotation fine Blade 4 position Blade 4 position fine Blade 4 rotation Blade 4 rotation fine Frame rotation Frame rotation fine Frame macros Frame macros speed Control PROLIGHTS - Astra Profile400...
  • Page 29 Medium Blue Green 114 ÷ 120 Medium Blue Green + Open 121 ÷ 127 Forward Spin From fast to slow 128 ÷ 190 Stop Stop 191 ÷ 192 Reverse Spin From slow to fast 193 ÷ 255 PROLIGHTS - Astra Profile400...
  • Page 30 Lineary from narrow to wide 000 ÷ 255 ZOOM FINE 000 ÷ 255 FOCUS Linear from far to near 000 ÷ 255 FOCUS FINE 000 ÷ 255 ANIMATION INSERTION Linear insertion from 0% to 100% 000 ÷ 255 PROLIGHTS - Astra Profile400...
  • Page 31 000 ÷ 255 FRAME ROTATION Swivelling from -30 degrees towards 0 degrees 0 ÷ 127 0 degrees 128 ÷ 128 Swivelling from 0 degrees to +30 degrees 129 ÷ 255 FRAME ROTATION FINE 000 ÷ 255 PROLIGHTS - Astra Profile400...
  • Page 32 214 ÷ 220 Macro 32 221 ÷ 227 Macro 33 228 ÷ 234 Macro 34 235 ÷ 241 Macro 35 242 ÷ 248 Macro 36 249 ÷ 255 FRAME MACROS SPEED Slow to fast 000 ÷ 255 PROLIGHTS - Astra Profile400...
  • Page 33 RESET PRISM 132 ÷ 133 RESET PRISM ROTATION 134 ÷ 135 RESET FROST 136 ÷ 137 RESET IRIS 138 ÷ 139 RESET ZOOM 140 ÷ 141 RESET FOCUS 142 ÷ 143 RESET FRAME ROT 144 ÷ 145 PROLIGHTS - Astra Profile400...
  • Page 34 154 ÷ 155 RESET BLADE 3 ROT 156 ÷ 157 RESET BLADE 4 POSITON 158 ÷ 159 RESET BLADE 4 ROT 160 ÷ 161 Reserved 162 ÷ 253 FACTORY DEFAULT OF CONTROL FUNCTIONS 254 ÷ 255 PROLIGHTS - Astra Profile400...

  • Page 35: Rotating Gobos Wheel

    14 - ROTATING GOBOS WHEEL Gobo dimensions: • Type B • Ø external (OD)= 25.7 mm • Ø of image (ID)= 19 mm • Thinckness= 1.1 mm ATTENTION! Load with mirror surface toward the light source. Fig. 10 PROLIGHTS - Astra Profile400...

  • Page 36: Color Wheel

    15 - COLOR WHEEL Fig. 11 PROLIGHTS - Astra Profile400...

  • Page 37: Animation Wheel

    16 - ANIMATION WHEEL Fig. 12 PROLIGHTS - Astra Profile400...

  • Page 38: Error Messages

    This error message indicates that an overheating on the [LED TEMPERATURE lamp has occurred and the lamp has been switched OFF by ERROR] the product protection system. [LED TEMP. SENSOR LAMP sensor damaged (open or in short circuit). ERROR] PROLIGHTS - Astra Profile400...
  • Page 39 Failure detected during the reset of the ZOOM system, if [ZOOM ERROR] the focus lens is not located in its default position. [ANIMATION WHEEL Failure detected during the reset of the animation wheel, if ERROR] this wheel is not located in the default position. PROLIGHTS - Astra Profile400...
  • Page 40 MENT, if the focus lens is not located in its default position. [BLADE 4 ROTATION Failure detected during the reset of the BLADE 4 ROTA- ERROR] TION, if the focus lens is not located in its default position. PROLIGHTS - Astra Profile400...
  • Page 41 IDENTIFICATION OF ELECTRONIC BOARDS 6U PCB 5U PCB 3U PCB 1U PCB 7U PCB 4U PCB 2U PCB Fig. 13 PROLIGHTS - Astra Profile400...

  • Page 42: Periodical Cleaning

    AND TILT LOCK" paragrap (pag. 6). Loosen and remove the marked screws and opening the head covers (1) from both sides. Safety cable Unclip the safety cable on both sides (2). Fig. 14 PROLIGHTS - Astra Profile400...

  • Page 43: Gobos Replacement

    19 - GOBOS REPLACEMENT Open the head covers (see the "PERIODICAL CLEANING" paragraph, point 1). Gently remove the gobo holder from the gobo wheel (3, 4). Remove the spring and the gobo (5, 6). Fig. 15 PROLIGHTS - Astra Profile400...

  • Page 44: Module Removal (Animation, Color, Goos Wheel)

    Open the head covers (see the "PERIODICAL CLEANING" paragraph, point 1). Unscrew the two screws marked on the front view (1). Unscrew the screw and raise the fan, on the rear side (2). Disconnect the two connectors (3). Then lift the module and remove it (4). PROLIGHTS - Astra Profile400...

  • Page 45: Maintenance

    WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.

  • Page 46: Troubleshooting

    • Check if the Fuse is intact and eventually replace it if fault necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in...
  • Page 48 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
