TV-Free
Video-in-motion Interface
TF-E65
for BMW E65 Professional navigation systems
with 8.8" monitor
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 31.08.2010
TF-E65
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Caraudio-Systems TV-Free TF-E65
Summary of Contents for Caraudio-Systems TV-Free TF-E65
- Page 1 TV-Free Video-in-motion Interface TF-E65 for BMW E65 Professional navigation systems with 8.8” monitor Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product.
- Page 2 Contents 1. Prior to installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 1.3. Setting the Dip-switches of the CAN-Box TV-401 1.4. Pin-assignments 2. Installation 3. Activation of the video-in-motion function 4. Specifications 5. Technical support 1. Prior to installation Read the manual prior to installation.
- Page 3 1.2. Check compatibility of vehicle and accessories Requirements Vehicle 7series (E65/E66) Navigation Navigation system Professional E65 with 8.8” monitor 1.3. Setting the Dip-switches of the Can-Box TV-401 All vehicles Dip 1 ON, Dip 2 OFF, Dip 3 OFF 1.4. Pin-assignments Pin-assignment vehicle connector ●●...
- Page 4 The video-in-motion interface is connected to the backside of the OEM screen. Remove 3 TORX screws at the OEM screen. Remove cover grill (only plugged). Place soft towel beneath the navigation monitor to avoid scratches Flip down the board monitor. NOTE: The OEM screen gets stuck with its connector at the upper side of the cockpit.

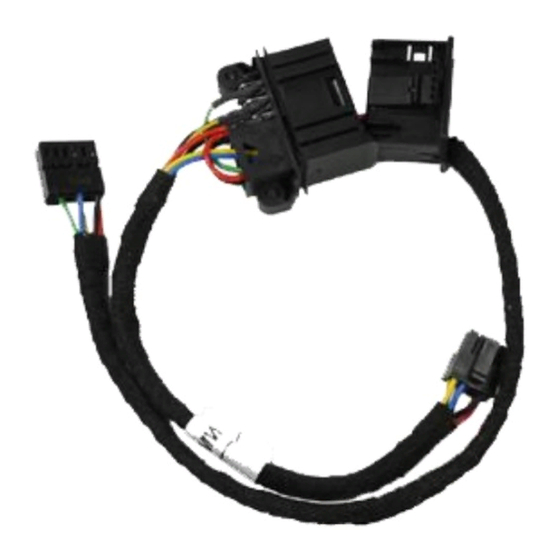

- Page 5 Remove 12-pin insert from black vehicle harness connector. Insert 12-pin insert into black connector of the harness TV-BMW65. Insert the completed black connector into harness TV-BMW65. Connect 12-pin insert from TV-BMW65 into black connector from vehicle harness. Insert completed connector into the plug on the backside of the navigation monitor. Connect 8pin Molex connector of TV-BMW65 to CAN-box TV-401.
- Page 6 ~0,72W Temperature range -30°C bis +80°C Weight Measurements (box only) B x H x T 70 x 20 x 47 mm 5. Technical Support Caraudio-Systems Vertriebs GmbH NavLinkz GmbH manufacturer/distribution corporate sales/tech support Rheinhorststr. 22 Eurotec-Ring 45 D-67071 Ludwigshafen am Rhein...
