Power (PWR) Indicator

To turn the POWER PRO on or off, press and hold the power button until the indicator changes from white to blue.
• The Power LED flashes rapidly red – green – blue for a few seconds when the POWER PRO is turning ON.
• When the POWER PRO is OFF and input power is not present, briefly press the ON/OFF switch to display the
battery capacity.
• When the POWER PRO is OFF and input power is present, the Power LED reports the battery capacity (one blink
every 2 seconds).
• When the POWER PRO is ON and input power is present, the Power LED reports the battery capacity (one blink
per 0.5 second).

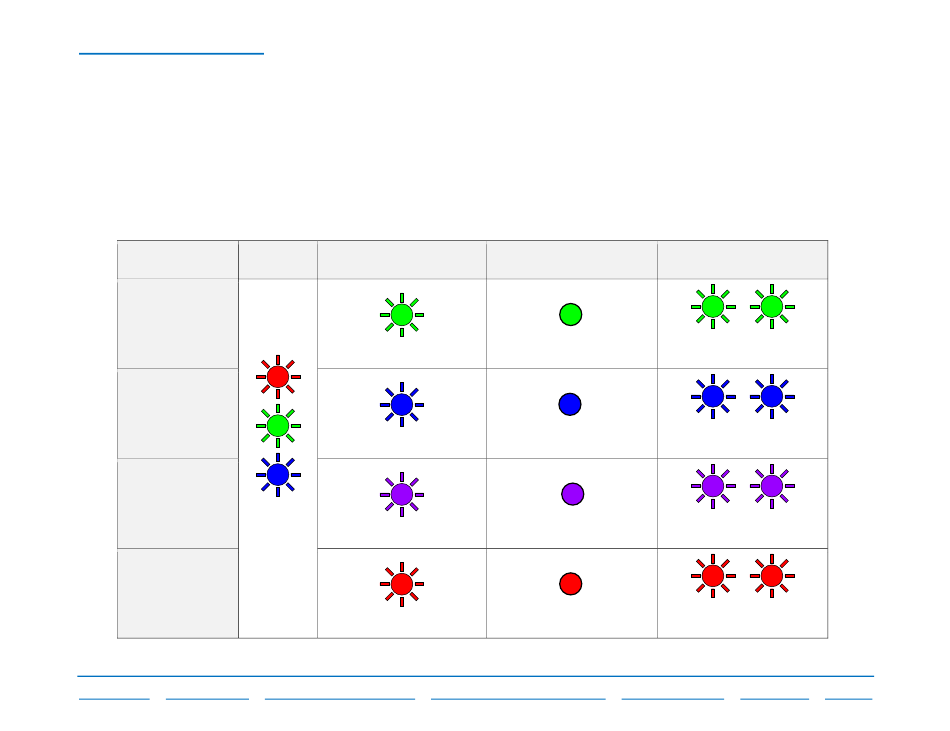

Battery Charge Initializing
>90%
50%–90%
20%–50%
Blinking
red, green,
and blue
<20%
–or–
fault
• •
