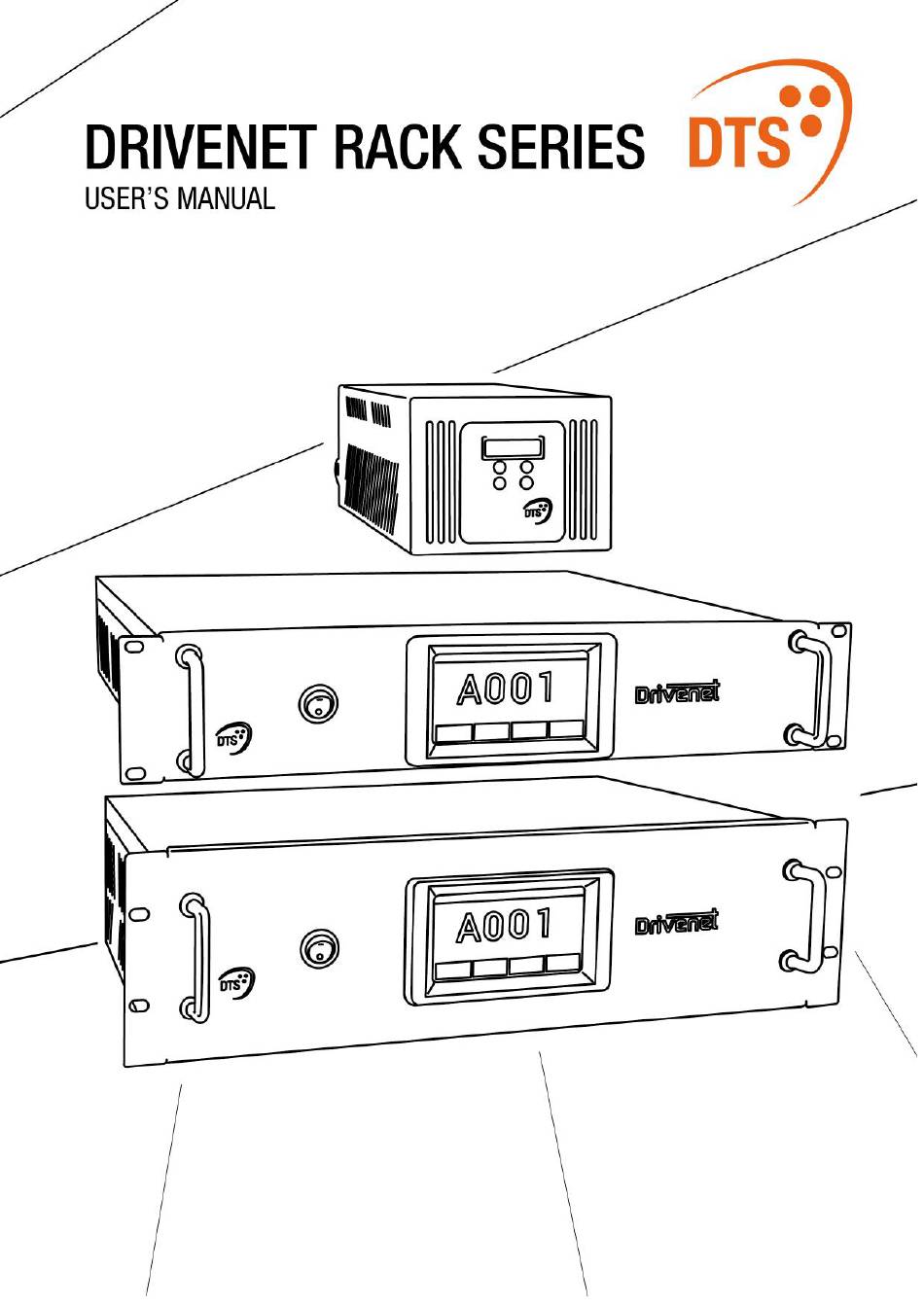

DTS DRIVENET RACK Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRIVENET RACK Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DTS DRIVENET RACK Series

Summary of Contents for DTS DRIVENET RACK Series

  • Page 3 DRIVENET Release For more information Language Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd All other trademarks, both marked and not marked, are the property of their respective owners. User Manual Ver. 1.00 1 di 43...
  • Page 4 DRIVENET Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S. Illuminazione.

  • Page 5: Table Of Contents

    DRIVENET Table of Contents Symbols................................ 5 General Warning ............................5 Important Safety Information ........................6 Fire prevention: ............................ 6 Prevention from electric shock: ......................6 Level of Protection IP ........................... 6 Safety: ..............................7 Waste Electrical and Electronic Equipment (WEEE) Directive ............7 General Warranty Conditions ........................
  • Page 6 DRIVENET 14.1 Fans and Air Passages ........................41 14.2 Electrical Components ........................41 Troubleshooting ............................42 NOTES ................................43 User Manual Ver. 1.00 4 di 43...

  • Page 7: Symbols

    DRIVENET Symbols General risk Electric shock risk Burn risk – hot surface T 40°C Maximum operating ambient temperature Suitable for indoor use only. Never throw with regular waste General Warning Carefully read the instruction contained in this User Manual, as they give important information regarding your safety and others during installation, use, and maintenance of the product.

  • Page 8: Important Safety Information

    DRIVENET Important Safety Information Fire prevention: It is permissible to place the unit on normally flammable surfaces. • Suitable for mounting on normally flammable materials surfaces greater than • 200°C with some combustion time lag. Prevention from electric shock: DRIVENET do not have parts that can be repaired by the user. •...

  • Page 9: Safety

    DRIVENET Safety: These products must be installed by qualified personnel only, following national laws • and local regulation regarding construction and electrical systems. This product can only be installed by personnel qualified for the installation of electrical appliances. They must ensure that: •...

  • Page 10: Dimensions

    DRIVENET Dimensions DRIVENET 28 EZ DRIVENET 2U RACK DRIVENET 416 / DRIVENET 416 POWER / DRIVENET 832 / DRIVENET 832 24Vdc DRIVENET 3U RACK DRIVENET 832 POWER / DRIVENET 832 POWER 24Vdc / DRIVENET 1664 / DRIVENET 1664 24Vdc Model DRIVENET 111,8 294,6...

  • Page 11: Technical Specifications

    • • 1 x PowerCON female cable connector (code 0520P014); DTS Dongle Firmware Uploader (code 03.LA.206) (OPTIONAL, ON REQUEST) • OPTIONAL for DRIVENET 28 EZ, ON REQUEST: ALISCAF CLAMP D=48-51 MM (Max Load 220 Kg) (code 0521A033) (OPTIONAL, ON REQUEST);...

  • Page 12: Installation

    DRIVENET Installation Before the installation • Prepare all cables and necessary accessories • Pay attention not to damage cables/connectors during check-up. • Ensure that all check-ups described within this document are thoroughly followed. • Report any operational defects to D.T.S. Illuminazione Srl or their official distributor or dealer. •...
  • Page 13 DRIVENET Wall mounting with two brackets on long sides: Truss mounting installation User Manual Ver. 1.00 11 di 43...

  • Page 14: Connection Panel

    DRIVENET Connection Panel DRIVENET 28 EZ: • • DRIVENET 416 and 416 POWER: User Manual Ver. 1.00 12 di 43...
  • Page 15 DRIVENET • DRIVENET 832 and 832 24Vdc: DRIVENET 832 POWER and 832 POWER 24Vd • DIVENET 1664 and 1664 24Vdc: • User Manual Ver. 1.00 13 di 43...

  • Page 16: Dmx Signal Connection

    DRIVENET DMX Signal Connection The unit operates using a digital DMX 512 signal. ∅ 0.5 mm cable and a XLR 5 pins connector. Connection between the controller and the unit or between units must be carried out using a two pair screened Ensure that the conductors do not touch each other.

  • Page 17: Dmx Modes

    DRIVENET For installations where long distance DMX cable connections are needed, we suggest to use a DMX terminator. The DMX terminator is a male XLR 5-pins connector with a 120 Ω resistor between pin 2 and pin 3. The DMX terminator must be plugged in into the last unit’s DMX OUT panel connector of the DMX line. Place a 120 Ω...

  • Page 18: Setting Up The Dmx Address

    DRIVENET DRIVENET 1664 and 1664 24Vdc can be used in eight different DMX modes: 64 ch (default), 128 ch, 10 ch, 14 ch, 160 ch, 224 ch, 96 ch or 1 ch mode. If you want to use the DRIVENET 1664 / 1664 24Vdc in 64 channels mode, select the “Full type – 8 bit 64ch” mode from the DMX MODE menu, under DMX SETUP, and set the following addresses on the mixer: Device 1 A001...

  • Page 19: Rdm Functions

    To perform the update, please follow the procedure as described below: Connect the DTS Firmware Uploader Dongle to a spare USB port on the PC. Connect the unit’s DMX IN to the DTS Firmware Uploader Dongle’s DMX OUT with a standard DMX cable and turn on the fixture.

  • Page 20: Dali Signal Connection (Only For Drivenet 28 Ez)

    DRIVENET 10 DALI Signal Connection (only for DRIVENET 28 EZ) The unit operates using a digital DALI signal. minimum ∅ 0.5 mm. Connection between the controller and the unit or between units can be made by using any standard cable Connect the mixer signal to the DALI 2-pole In/Out screw terminals panel connector and re-send it to the next units.
  • Page 21 DRIVENET COMMAND NUMBER DESCRIPTION Query Content DTR Query Device Type Query Actual Level Query Max Level Query Min Level Query Power On Level Query System Failure Level Query Fade Time / Fade Rate 176-191 Query Scene level Query Groups [0-7] Query Groups [8-15] Query Random Address High Query Random Address Middle...

  • Page 22: Display Functions

    DRIVENET 11 Display Functions 11.1 LCD Display Functions The DRIVENET 416 / 416 POWER / 832 / 832 24Vdc / 832 POWER / 832 POWER 24Vdc / 1664 / 1664 24Vdc display panel shows all the available control menus. By selecting the available functions on these menus, you will be able to change the fixture’s settings and behavior.
  • Page 23 DRIVENET MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Z1 type – 8 bit = 10 DMX ch mode with all the outputs automatically set on DMX starting channel 1: 1=Shutter, Z1 TYPE 8 BIT 10 CH 2=Dimmer, 3=Red, 4=Green, 5=Blue, 6=White, 7=White control, 8=CTC, 9=Macro, 10=Function.
  • Page 24 DRIVENET MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION following DMX modes: Full Type 8 bit 16 ch, Full Type 16 bit 32 ch, Z1 Full 8 bit 10x4 = 40 ch, Z1 Short Full 8 bit 6x4 = 24 ch, Z1 Short Full 16 bit 10x4 = 40 ch.
  • Page 25 DRIVENET MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Allows to select the maximum OUT. CHANNEL LED current (peak) CURRENT independently for each output channel. Automatic mode without DMX controller. Chase with 16 steps previously created in REC STEP 01/16 01/16 mode.
  • Page 26 DRIVENET MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION through even if not programmed. Slave mode. SLAVE The unit is forced to DMX address 1 receiving signal (solo 416 e 1664 SURE from the unit set in Auto mode. e 1664 24Vdc) Esc from slave mode.

  • Page 27: Display Functions For Drivenet 28 Ez

    DRIVENET MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION FIXED = Fixed setting of the network parameters; COSTUM = Manual setting of the network parameters. Default = USE DHCP Shows the IP address of the DRIVENET. You can set up all IP ADDRESS 192.168.55.152 bytes of the IP address only if...
  • Page 28 DRIVENET MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Reverses display's reading ON THE GROUND depending on the mounting POSITION position. On the ground or SUSPENDED suspended. Default = ON THE GROUND DISPLAY Display stand-by disabled. (Default) STANDBY Display goes OFF after 30 seconds (10 seconds for DRIVENET 416) Allows to select 10 DMX...

  • Page 29: Dmx Protocol

    DRIVENET 12 DMX Protocol 12.1 DMX Personality 1 12.1.1 DMX Personality 1 for DRIVENET 416 for DRIVENET 416 and 416 POWER “Full type – 8 bit ” mode (16 DMX channels) (default) Red 1 Green 1 Blue 1 White 1 Red 2 Green 2 Blue 2...

  • Page 30: Dmx Personality 1 For Drivenet 1664

    DRIVENET 12.1.3 DMX Personality 1 for DRIVENET 1664 for DRIVENET 1664 and 1664 24Vdc “Full type – 8 bit ” mode (64 DMX channels) (default) The same as for DRIVENET 832, but in addition: 33. Red 9 34. Green 9 35.
  • Page 31 DRIVENET RED 2 DMX value Function 000-255 Proportional color from min to max GREEN 2 DMX value Function 000-255 Proportional color from min to max BLUE 2 DMX value Function 000-255 Proportional color from min to max WHITE 2 DMX value Function 000-255 Proportional color from min to max...
  • Page 32 DRIVENET BLUE 5 DMX value Function 000-255 Proportional color from min to max WHITE 5 DMX value Function 000-255 Proportional color from min to max RED 6 DMX value Function 000-255 Proportional color from min to max GREEN 6 DMX value Function 000-255 Proportional color from min to max...
  • Page 33 DRIVENET GREEN 9 DMX value Function 000-255 Proportional color from min to max BLUE 9 DMX value Function 000-255 Proportional color from min to max WHITE 9 DMX value Function 000-255 Proportional color from min to max RED 10 DMX value Function 000-255 Proportional color from min to max...
  • Page 34 DRIVENET RED 13 DMX value Function 000-255 Proportional color from min to max GREEN 13 DMX value Function 000-255 Proportional color from min to max BLUE 13 DMX value Function 000-255 Proportional color from min to max WHITE 13 DMX value Function 000-255 Proportional color from min to max...

  • Page 35: Dmx Personality 2

    000-055 No Function 056-105 Full (Red – Green – Blue at Full) 106-255 White DTS If channel 10 (functions) = CUSTOM WHITE RECALL (DMX range value 0-79) 156-205 Custom white recall 206-255 White CTC (Channel 8 CTC enabled, 43 color temp. Correction Macros: User Manual Ver.
  • Page 36 DRIVENET WHITE PRE-PROGRAMMED DMX value Function 2700K-8000K only for DRIVENET 416 • 2000K-7200K • If channel 10 (functions) = CUSTOM WHITE CREATE (DMX range value 80-160) 156-205 Custom white create (RGB levels selectable by DMX) White CTC (Channel 8 CTC enabled, 43 color temp. Correction Macros: 206-255 •...

  • Page 37: Dmx Personality 1 For Drivenet 28 Ez

    DRIVENET 12.3 DMX Personality 1 for DRIVENET 28 EZ DMX Personality 1: 10 CHANNELS mode (10 DMX channels) Shutter Dimmer Output Channel 1 Output Channel 2 Output Channel 3 Output Channel 4 Output Channel 5 Output Channel 6 Output Channel 7 10 Output Channel 8 SHUTTER DMX value...

  • Page 38: Dmx Personality 2 For Drivenet 28 Ez

    DRIVENET OUTPUT CHANNEL 6 DMX value Function 000-255 Proportional dimmer from min to max OUTPUT CHANNEL 7 DMX value Function 000-255 Proportional dimmer from min to max OUTPUT CHANNEL 8 DMX value Function 000-255 Proportional dimmer from min to max 12.4 DMX Personality 2 for DRIVENET 28 EZ DMX Personality 2: 8 CHANNELS mode (8 DMX channels) (Default)

  • Page 39: Dmx Personality 3 For Drivenet 28 Ez

    DRIVENET 12.5 DMX Personality 3 for DRIVENET 28 EZ DMX Personality 3: 4 CHANNELS mode (4 DMX channels) Output Channel 1 + Output Channel 2 Output Channel 3 + Output Channel 4 Output Channel 5 + Output Channel 6 Output Channel 7 + Output Channel 8 OUTPUT CHANNEL 1 + OUTPUT CHANNEL 2 DMX value Function...

  • Page 40: Dmx Personality 6 For Drivenet 28 Ez

    DRIVENET 12.8 DMX Personality 6 for DRIVENET 28 EZ DMX Personality 6: “D8CH” mode (9 DMX channels) Dimmer Output Channel 1 Output Channel 2 Output Channel 3 Output Channel 4 Output Channel 5 Output Channel 6 Output Channel 7 Output Channel 8 DIMMER DMX value Function...

  • Page 41: Dmx Personality 7 For Drivenet 28 Ez

    DRIVENET 12.9 DMX Personality 7 for DRIVENET 28 EZ DMX Personality 7: “D4CH” mode (5 DMX channels) Dimmer Output Channel 1 + Output Channel 2 Output Channel 3 + Output Channel 4 Output Channel 5 + Output Channel 6 Output Channel 7 + Output Channel 8 DIMMER DMX value Function...

  • Page 42: Dmx Personality 9 For Drivenet 28 Ez

    DRIVENET 12.11 DMX Personality 9 for DRIVENET 28 EZ DMX Personality 9: “CUSTOM 8 CHANS” mode (8 DMX channels) Output Channel 1 with independent DMX address Output Channel 2 with independent DMX address Output Channel 3 with independent DMX address Output Channel 4 with independent DMX address Output Channel 5 with independent DMX address Output Channel 6 with independent DMX address...

  • Page 43: Maintenance

    DRIVENET 14 Maintenance WARNING! Disconnect from mains powers before servicing. D.T.S. Illuminazione Srl’s products are of higher quality and design, therefore must be treated with care. The following recommendations will help you keep your warranty intact, to make the best possible use of the product, and to maximize their lifespan: •...

  • Page 44: Troubleshooting

    DRIVENET 15 Troubleshooting Warning: Make sure to unplug the devices from their power supply when connecting/disconnecting cables. Problem Probable cause Possible solutions • Check the DRIVENET’s correct connection to the mains. • Plug the DRIVENET power cable into a known The DRIVENET, after working power outlet.

  • Page 45: Notes

    DRIVENET NOTES User Manual Ver. 1.00 43 di 43...
