SEA UNIGATE 1I Quick Start Manual

Hide thumbs Also See for UNIGATE 1I:

Advertisement

Quick Links

Download this manual

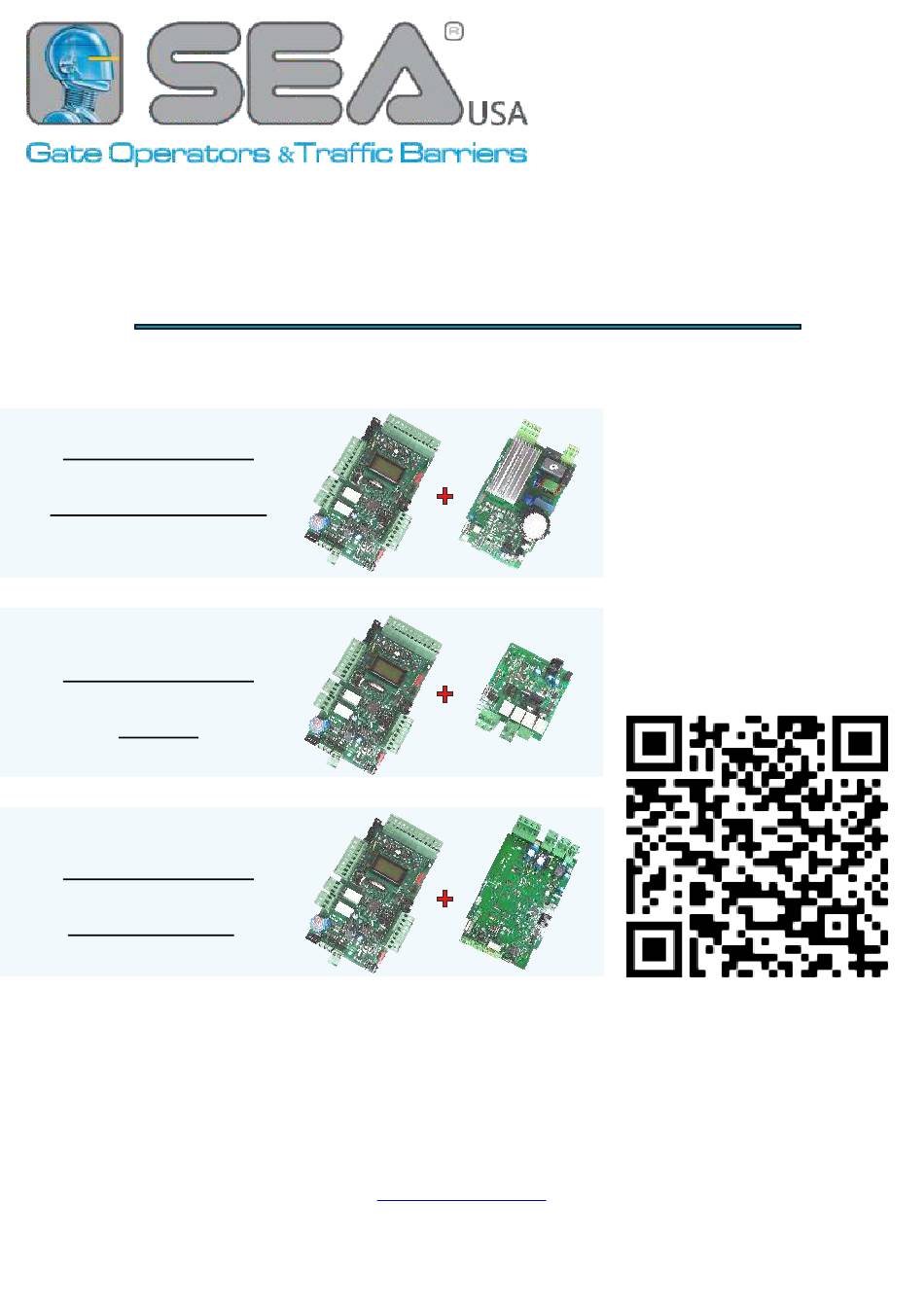

QUICK START
UNIGATE
FULL MANUAL
INVERTER
(Rev. 02)
(1I - 2I - 1I BIG - 2I BIG)
and
SAFETY
UNIGATE
INFORMATION
24V
UNIGATE
BR (36V)
SEA USA Inc.
10850 N.W. 21st - unit 160 - DORAL - MIAMI
Florida (FL) 33172
Phone: ++1-305.594.1151
www.sea-usa.com
67412245
REV. 01 - 02/2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the UNIGATE 1I and is the answer not in the manual?

Questions and answers

Related Manuals for SEA UNIGATE 1I

Summary of Contents for SEA UNIGATE 1I

  • Page 1 (Rev. 02) (1I - 2I - 1I BIG - 2I BIG) SAFETY UNIGATE INFORMATION UNIGATE BR (36V) SEA USA Inc. 10850 N.W. 21st - unit 160 - DORAL - MIAMI Florida (FL) 33172 Phone: ++1-305.594.1151 www.sea-usa.com 67412245 REV. 01 - 02/2023...
  • Page 2 INDEX 1 - COMPONENTS « » 2 - QUICK START SEQUENCE: WIRINGS « » « », « » « » « », « », « », « » « » BASIC MENU SETTINGS C MOTORS OPERATION TEST (MENU 192 193) D ACTIVATION OF ENCODER POTENTIOMETER (IF INSTALLED)
  • Page 3 1 - COMPONENTS 1.1 - «UNILOGIC» MODULE COMPONENTS ANT COM START STPD STOP COM PH1 PH2 EDGE1 EDGE2 COM AUX FL(-) DISPLAY 14 15 16 17 18 19 20 21 22 LSO1 LSC1 COM LSO2 LSC2 24V+ COMIS LOCK 23 24 25 26 27 28 29 30 +PG E1/D1 COM E2/D2 GP1 GP2 COM 24V MODULE 2 PRIMARY...
  • Page 4 2 - QUICK START SEQUENCE A - B - C - D - E WIRINGS « » Make all wirings when the unit is not powered! Do not jumper the N.C. inputs not in use! HOTOCELL LampFL(-) Photo1 AFETY EDGE AFETY EDGE For the limit switches wirings of «big fast», «joint 4 ls»...
  • Page 5 According to the UNIGATE model in use, make the operator (or operators) wirings on the corresponding module type by following the wiring diagrams below Motor wiring on «FV» inverter module (or two motors wiring on two «FV» inverter modules) UNIGATE - 1I UNIGATE - I 2 MOTOR 1 (115V) MOTOR 2 (115V)
  • Page 6 «UNILOGIC» module connection to the main power supply MAIN TERMINAL SWITCHING POWER SUPPLY ON «UNILOGIC» BLACK WHITE GREEN XAMPLE OF WITCHING BLACK «FV» inverter module connection to the main power supply POWER BLACK WHITE GREEN - - - - - - - - - - - - - - - - XAMPLE OF - - - - - - - -...

  • Page 7: Basic Menu Settings

    « » OWER SOFTWARE INPUTS STATUS REVISION Turn on the control unit and check for the correct status of the inputs SECONDS 0 0 11111 0 03.16 N.O. (0) 11111111 XAMPLE N.C. (1) Every input corresponds to a START (**) MOTOR 1 OPENING LIMIT SWITCH 1 2 3 4 5 6 7 8 PARTIAL START...
  • Page 8 MOTORS OPERATION TEST (MENU 192 193) If the gate opens by pressing UP and if the gate closes by pressing DOWN, so the motor TIMER TO MOVE runs correctly, otherwise swap the motor GATE 1 CLOSE cables. In case of 2 operators, test the DOWN second one on menu 193 in the same way ENCODER...
  • Page 9 The limit switches are automatically detected LEAF ON HALFWAY OWER OWER XAMPLE XAMPLE SOFTWARE REVISION 03.16 XAMPLE OF F UNLOCK LOCK INPUT STATUS 00111110 PROGRAM- LANGUAGE 11111111 MING THE LEARNING CYCLE STARTS: CLOSE - OPEN - CLOSE If the motor starts closing, reaches the limit switch lever and stops, then swap the limit switch cables and repeat the procedure; If the motor starts opening, reaches the limit switch lever and stops, then swap the motor cables and repeat the procedure;...
  • Page 10 UNIGATE - MENU FUNCTIONS TABLE LEGEND INVERTER - FUNCTION AVAILABLE ON MODEL UNIGATE WITH "FV" INVERTER MODULE (1I - 2I - 1I BIG - 2I BIG) 24V - FUNCTION AVAILABLE ON MODEL UNIGATE WITH 24V MODULE BR - FUNCTION AVAILABLE ON MODEL UNIGATE WITH BR MODULE ALL - COMMON FUNCTIONS - AVAILABLE ON ALL UNIGATE MODELS MENU DESCRIPTION...
  • Page 11 MENU DESCRIPTION DEFAULT MODEL NOTE 32- ORION BOX FAST 24Vdc electromechanic operator 35- SURF 24Vdc electromechanic operator SURF 39- HT 270/390 24VDC 24Vdc hydraulic operator 43- SURF FAST 24Vdc electromechanic operator 65 KITE LS 24Vdc electromechanic operator 50- HALF TANK BR Hydraulic operator - Series BR (BRUSHLESS) 51- SURF BR Electromechanic swing operator -...
  • Page 12 MENU DESCRIPTION DEFAULT MODEL NOTE If "ON" the operator complies with the pause time set INVERTER 13 LATCH PAUSE when the function "LATCH OPENING" is disabled. When "OFF" the pause time set is not respected A count-down of 5 seconds will start by holding the UP button; at its end "INIT" will appear on the display as 14 RESET confirmation of the control board reset Allows the movement of the gate in a temporary "dead man"...

  • Page 13: Special Menu

    SPECIAL MENU PRESS AT THE SAME TIME FOR 5 SECONDS TO ENTER OR TO EXIT THE SPECIAL MENU LEGEND INVERTER - FUNCTION AVAILABLE ON MODEL UNIGATE WITH "FV" INVERTER MODULE (1I - 2I - 1I BIG - 2I BIG) 24V - FUNCTION AVAILABLE ON MODEL UNIGATE WITH 24V MODULE BR - FUNCTION AVAILABLE ON MODEL UNIGATE WITH BR MODULE ALL - COMMON FUNCTIONS - AVAILABLE ON ALL UNIGATE MODELS SPECIAL MENU...
  • Page 14 50 ENCODER TOT. 2 xxx. Impulses stored during programming (Motor 2) Position Gate To enable the reading of the potentiometer INVERTER To enable the reading of the SEA absolute Encoder ENCODER INVERTER RS 485 To enable the reading of the absolute rotative Encoder To show the current position of the potentiometer on the leaf moved by Motor I.PAR.M1 *...
  • Page 15 SPECIAL MENU DESCRIPTION MODEL DEFAULT NOTE 10% (Fast intervention) To adjust the amperometric sensitivity in slowdown 99% (Slow intervention) Function available only on electro-mechanic operators SLOWDOWN SENSITIVITY MOTOR To set the inversion time in slow-down from 0 to 5 With potentiometer seconds (= 99%) - Only with potentiometer enabled POTENTIOMETER 1 THRESHOLD...
  • Page 16 SPECIAL MENU DESCRIPTION MODEL DEFAULT NOTE To disable the anti-overlapping control of the leaves allowing their separate control 69 ANTI OVERLAP To enable the anti-overlapping control of the leaves OPENING POSITION To retrieve the inertia of the motor in opening after the 20 seconds depends RECOVERY...
  • Page 17 SPECIAL MENU DESCRIPTION MODEL DEFAULT NOTE Normal Normal Light Warning lamp function 86 FLASHING LIGHT Normal Always Always ON Buzzer Buzzer The flashing light will be OFF with enabled timer and open gate FLASHING LIGHT AND TIMER The flashing light will be ON with enabled timer and open gate Disabled 88 COURTESY LIGHT...
  • Page 18 SPECIAL MENU DESCRIPTION MODEL DEFAULT NOTE Photo 1 Self-test enabled only on photocell 1 Photo 2 Self-test enabled only on photocell 2 95 PHOTO-TEST Photo 1 and 2 Self-test enabled on photocells 1 and 2 Disabled Edge 1 Self-test enabled only on safety edge 1 Edge 2 Self-test enabled only on safety edge 2 SAFETY EDGE...
  • Page 19 SPECIAL MENU DESCRIPTION MODEL DEFAULT NOTE If the photocell is occupied during closing, the gate Closing reverses the movement; If the photocell is occupied during the pause, it prevents the gate reclosing If the photocell is occupied during opening or closing, it Opening and closing stops the gate movement;...
  • Page 20 SPECIAL MENU DESCRIPTION MODEL DEFAULT NOTE Opening and closing Safety edge enabled in opening and closing Opening SAFETY EDGE 1 Only opening Safety edge enabled only in opening DIRECTION Closing Only closing Safety edge enabled only in closing Opening and closing Safety edge enabled in opening and closing Opening SAFETY EDGE 2...
  • Page 21 SPECIAL MENU DESCRIPTION MODEL DEFAULT NOTE Disabled The gate opens and stay open till a new Start input. Opening The latch function uses the "Safety Edge 1" N.O. input (Safety Edge 1 function is so disabled) The gate closes and stay closed till a new Start input. 118 LATCH Closing The latch function uses the "Safety Edge 2"...
  • Page 22 SPECIAL MENU DESCRIPTION MODEL DEFAULT NOTE Disabled To connect an opening button that the operation in "Dead Open Man" logic. The button will only work when the gate is closed or after a Stop command To connect an opening button that the operation in "Dead Emergency open Man"...
  • Page 23 SPECIAL MENU DESCRIPTION MODEL DEFAULT NOTE Disabled To enable the Relay 2 for 3 seconds at every Start or Start 3s reopening command Traffic light management: the green light is switched-on Traffic light 1 only when the gate is open By a Start command the traffic light in entrance turns green and the access priority is acquired while the Traffic light in entrance...
  • Page 24 SPECIAL MENU DESCRIPTION MODEL DEFAULT NOTE Disabled Positive brake Positive electric-brake (The relay FV2 will be ON only management with stopped gate) Negative electric-brake (The relay FV2 will be ON only MAGLOCK - Negative during operator cycle, 1 second before start and in brake management case of photocell intervention) RELAY FV 2...
  • Page 25 NOTES...
  • Page 26 NOTES...
  • Page 28 SEA USA Inc. 10850 N.W. 21st - unit 160 - Doral - MIAMI FLORIDA (FL) 33172 Phone: ++1 - 305 594 1151 www.sea-usa.com...
