SEA GATE 1 DG R1 Instruction Manual

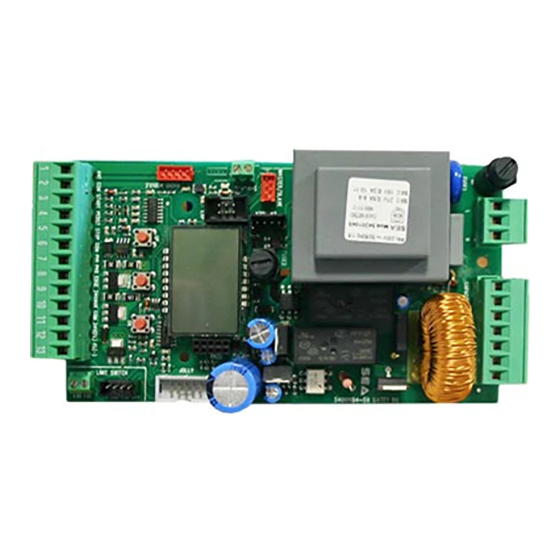

Control unit for sliding gates, swing gates, barriers and garage doors
Hide thumbs Also See for GATE 1 DG R1:
Table of Contents

Advertisement

Quick Links

See also: Manual
International registered trademark n. 2.777.971

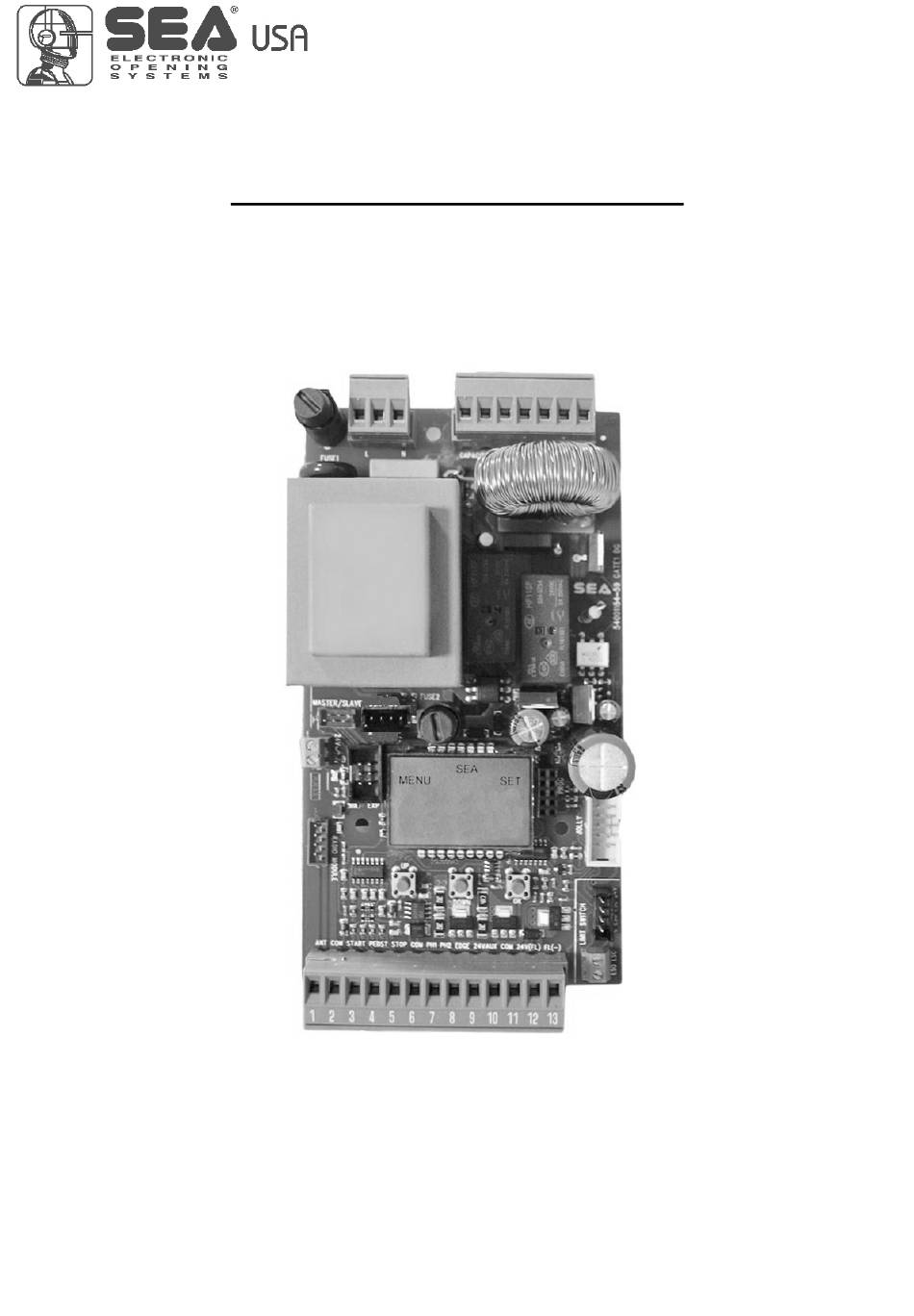

GATE 1 DG R1
CONTROL UNIT FOR SLIDING GATES,
SWING GATES, BARRIERS AND GARAGE DOORS
tras
SEA USA Inc.
10850 N.W. 21st unit 160 DORAL MIAMI
Florida (FL) 33172 USA
Tel.
:++1-305.594.1151 ++1-305.594.7325
-
Toll free:
800.689.4716
web site: www.sea-usa.com
e-mail: sales@sea-usa.com
67410179
Rev.04 - 06/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GATE 1 DG R1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEA GATE 1 DG R1

Summary of Contents for SEA GATE 1 DG R1

  • Page 1 International registered trademark n. 2.777.971 GATE 1 DG R1 CONTROL UNIT FOR SLIDING GATES, SWING GATES, BARRIERS AND GARAGE DOORS tras SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Tel. :++1-305.594.1151 ++1-305.594.7325 Toll free: 800.689.4716...
  • Page 2 GATE 1 DG R1 International registered trademark n. 2.777.971 DETAILS General An appliance shall be provided with an instruction manual. The instruction manual shall give instructions for the installation, operation, and user maintenance of the appliance. The installation instructions shall specify the need for a grounding-type receptacle for connection to the supply and shall stress the importance of proper grounding.

  • Page 3: Important Safety Instructions

    GATE 1 DG R1 International registered trademark n. 2.777.971 g) The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset control shall not cause the operator to start. h) A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible.
  • Page 4 GATE 1 DG R1 International registered trademark n. 2.777.971 COMPONENTS TECHNICAL SPECIFICATIONS Control unit power supply: 115Vac 50/60 Hz Absorption in stand by: 30 mA Environment temperature : -4°F +176°F Specifications of external enclosure: 183 X 238 X 120 - Ip55...
  • Page 5 GATE 1 DG R1 International registered trademark n. 2.777.971 CONNECTIONS 24V (Red) Limit switch Closing 1 (Yellow) 14 15 16 17 18 19 20 24Vac Limit switch Opening 1 (Green) LIGHT LIGHTN MCL MN MOP CAPACITOR Max 150 mA Common (White)
  • Page 6 GATE 1 DG R1 International registered trademark n. 2.777.971 PROGRAMMING QUICK START PROGRAMMING MENU MENU BUTTONS LANGUAGE ITALIANO DOWN Skip this step if you do not want to program a transmitter OK to exit Menu Press the MENU MENU MENU...
  • Page 7 GATE 1 DG R1 International registered trademark n. 2.777.971 MENU FUNCTIONS TABLE GATE 1 DG R1 Set value MENU Description Default tal ano Italian engl sk English 1 - langvage tal ano fran(a s French espanol Spanish dut(k Dutch start...
  • Page 8 GATE 1 DG R1 International registered trademark n. 2.777.971 WORKING TIMES SELF LEARNING The control unit is pre-set with the default settings, to start the control unit with the DEFAULT settings just keep pressed the UP and DOWN buttons at the same time power supplying the control unit the display shows the message init.

  • Page 9: Function Logic

    GATE 1 DG R1 FUNCTION LOGIC International registered trademark n. 2.777.971 AUTOMATIC LOGIC A start impulse opens the gate. A second impluse during the opening will not be accepted. A start impulse during closing reverses the movement. NOTE 1: To have the automatic closing it is necessary to set a pause time, otherwise all the logic will be semi- automatic.

  • Page 10: Special Menu

    PRESS AT THE SAME TIME FOR 5 SECONDS TO ENTER OR TO EXIT THE SPECIAL MENU DOWN SPECIAL MENU FUNCTIONS TABLE GATE 1 DG R1 For entering into the special menu move on one of the menu and press the UP and DOWN buttons at the same time for 5 s.
  • Page 11 GATE 1 DG R1 International registered trademark n. 2.777.971 Set value MENU SP Description Default Setting from 20 to 100 15 - pedestr an open ng Pause in pedestrian = start opening same as in total opening = start 16 - pedestr an PAvSE Disabled Setting from 1s to 4 min.
  • Page 12 GATE 1 DG R1 International registered trademark n. 2.777.971 Description Set value MENU SP Default Photocell active in closing (LOS NG OPEN NG Photocell active in opening Photocell active before stop opening The photocell stops in closing Stop AND (LOSE...
  • Page 13 GATE 1 DG R1 International registered trademark n. 2.777.971 Description Set value MENU SP Default Only on limit switch in opening. If the limit switch is freed ONLY OPEN NG manually it forces the reopening of the gate Only on limit switch in closing.
  • Page 14 If the password has been forgotten, the only way to unlock the control unit is to contact the SEA technical assistance, which will assess whether to provide the procedure to unlock the control unit or not.
  • Page 15 Photocell 1 Edge DOWN Photocell 2 MENU FUNCTION TABLE CHECK GATE 1 DG R1 INPUTS To access the Menu for input check keep pressed OK for about 5 seconds. Description Description MENU The contact must be a N.O. Contact . When activating the related command start on the display SET lights up, the input works.
  • Page 16 GATE 1 DG R1 International registered trademark n. 2.777.971 RADIO TRANSMITTER SELF LEARNING WITH RECEIVER ON BOARD OF CONTROL UNIT WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CMR connector (if available) with turned off control unit.
  • Page 17 GATE 1 DG R1 International registered trademark n. 2.777.971 START - STOP - PEDESTRIAN START - ANTENNA - PHOTOCELL Photocell 1 and Photocell 2 Connections Note: If the photocells are not connected, it is not necessary put a jumper between the clamps (6 and 7...
  • Page 18 GATE 1 DG R1 International registered trademark n. 2.777.971 ENCODER OR AMPEROMETRIC MANAGEMENT AMPEROMETRIC DEVICE FOR ELECTROMECHANICAL OPERATORS This control unit comes with an obstacle detection system working only on electromechanical operators allowing to have the reversing on obstacles and the automatic detection of the stops.

  • Page 19: Courtesy Light

    GATE 1 DG R1 International registered trademark n. 2.777.971 COURTESY LIGHT, MOTORS, CAPACITY AND POWER SUPPLY CONNECTIONS COURTESY LIGHT 14 15 16 17 18 19 20 Timing from 0 to 4 min (115V~ 100W Max) Capacitor Example Motor Motor connection...

  • Page 20: Master-Slave Function

    GATE 1 DG R1 International registered trademark n. 2.777.971 MASTER-SLAVE FUNCTION To set an installation with two motors in MASTER-SLAVE function it is recommended to do as follows: 1) Set the two motors as if they were two independent installations, make sure that the individual motor works properly and that the limit switches (when present) are read properly.

  • Page 21: Alarm Description

    GATE 1 DG R1 International registered trademark n. 2.777.971 THREE-PHASE MODULE CONNECTION Motor wiring connector for control unit (115V) (GATE 1 DG R1) Power supply connector 14 15 16 17 18 19 20 for control unit (115V) (GATE 1 DG R1)

  • Page 22: Troubleshooting

    Materials handling must be made with appropriate vehicles.. WARRANTY LIMITS For the guarantee see the sales conditions on the official SEA price list. SEA reserves the right to make any required modification or change to the products and/or to this manual without any advanced notice obligation. 67410179...
  • Page 23 PAYMENT: Method of payments and terms are notified by SEA and displayed on the commercial invoice. DELIVERY: The delivery time on the invoice is not binding and represents an estimated delivery. Shipments costs will be charged to the buyer and SEA is not responsible for delays and/or damages occurred to the products during shipment.
  • Page 24 International registered trademark n. 2.777.971 SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Tel. ++1-305.594.1151 ++1-305.594.7325 Toll free: 800.689.4716 web site: www.sea-usa.com e-mail: sales@sea-usa.com...
