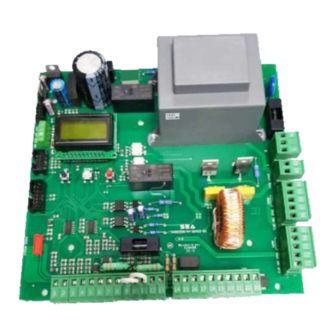

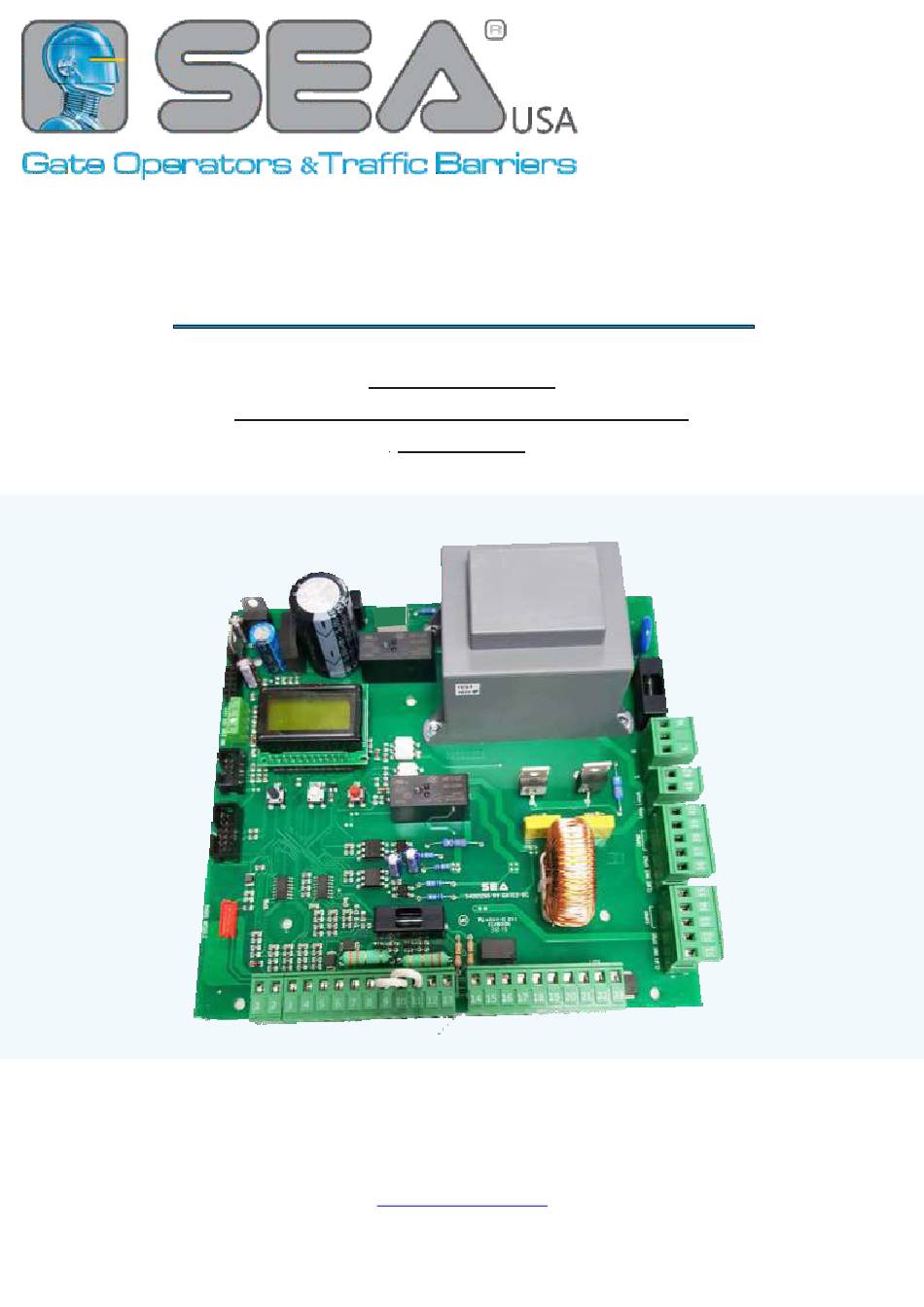

GATE 2 DG R1B
CONTROL UNIT
TO MANAGE ONE or TWO OPERATORS
(230V/110V)
SEA USA Inc.
10850 N.W. - 21st - unit 160 - Doral - MIAMI - Florida (FL) - 33172 - USA
Telephone: ++1-305.594.1151
www.sea-usa.com
67411387
REV. 18 - 10/2023
