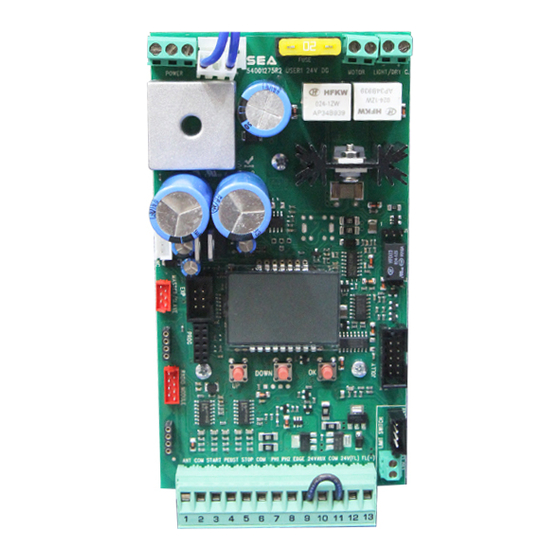

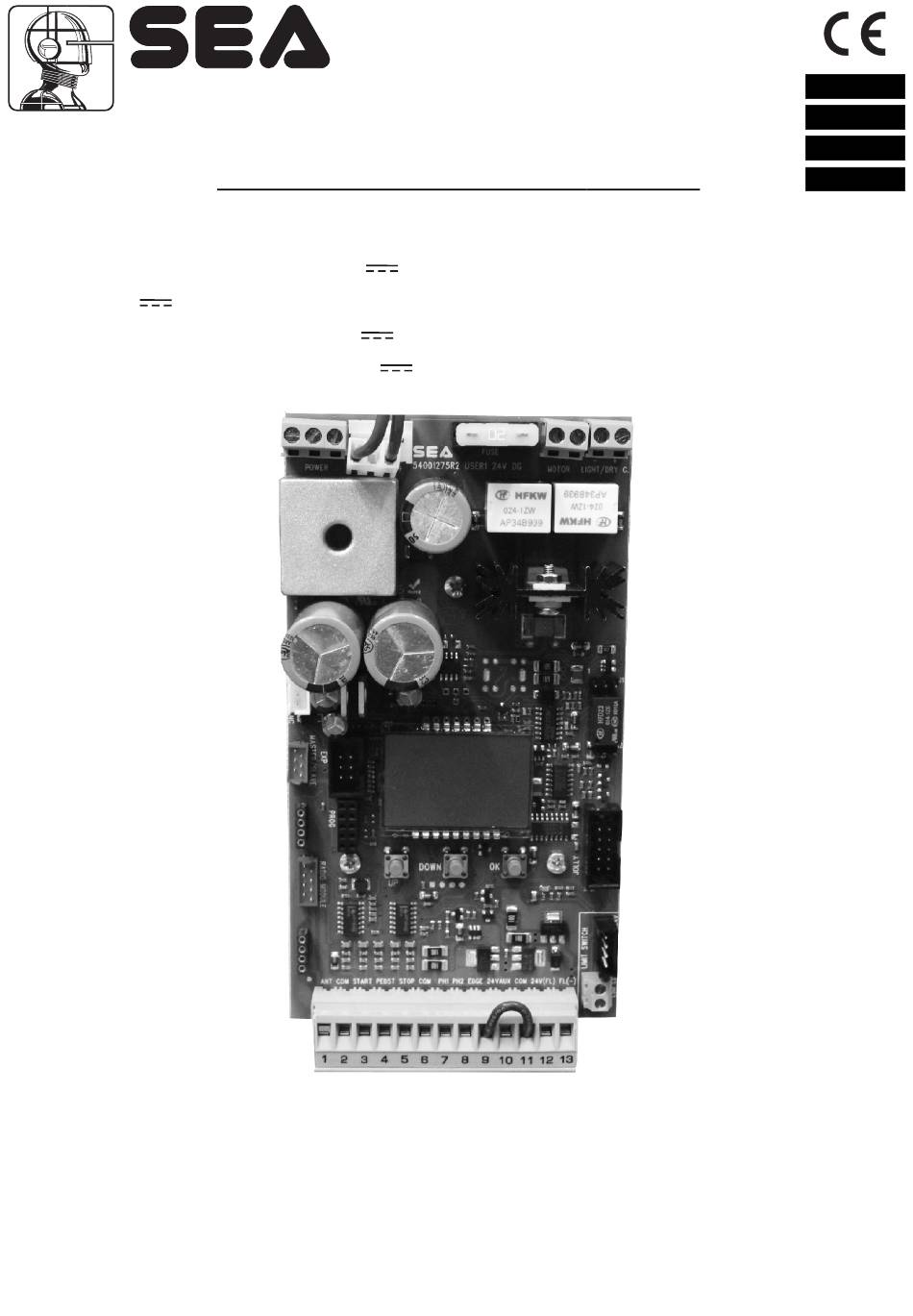

  • Page 1 Sistemi Elettronici Italiano di Apertura Porte e Cancelli International registered trademark n. 804888 English Français USER 1 - 24V DG MAXI Español 23024074 APPAR. ELETTRONICA 24V PER CANCELLI SCORREVOLI E BARRIERA ELECTRONIC CONTROL UNIT FOR SLIDING GATES AND BARRIERS ARMOIRE ELECTRONIQUE 24V POUR PORTAILS COULISSANTS ET BARRIERES DISPOSITIVO ELECTRÓNICO 24V...

  • Page 2: Description Of The Components

    English USER 1 - 24V DG MAXI DESCRIPTION OF THE COMPONENTS TECHNICAL SPECIFICATIONS Control unit power supply: 24 V~ Absorption in stand by: 30 mA Maximum motor current: 20A Environment temperature: -20°C +50°C Specifications of external enclosure: 305 x 225 x 125 mm - Ip55...
  • Page 3 English USER 1 - 24V DG MAXI CONNECTIONS POWER (CN8) MOTOR (CN6) LIGHT (CN5) 24V (Red) Brown Limit switch Cl.1 (Yellow) White Limit switch Op.1 (Green) Green Common (White) Max 400W Max 100mA 24V~ Limit switch Cl.1 (Yellow) Limit switch Op.1 (Green)
  • Page 4 English USER 1 - 24V DG MAXI QUICK SELF-EARNING PROGRAMMING “Input check DISPLAY menu" -- --- DOWN DOWN Fast self-learning START command by Start quick programming radio control You can start the quick programming by You can store the START button of the holding UP for 5 s in the “Input check...
  • Page 5 English USER 1 - 24V DG MAXI PROGRAMMING QUICK START PROGRAMMING BUTTONS MENU MENU LANGUAGE ITALIANO DOWN Skip this step if you do not want to program a transmitter OK to exit Press the Menu or press MENU MENU MENU...
  • Page 6 English USER 1 - 24V DG MAXI MENU FUNCTIONS TABLE USER1 24V DG MAXI MENU Description Default Set value Italiano Italian English English 1 - LANGUAGE Italiano French Français Spanish Español Olandese Dutch Start Start Pedestrian Start Pedestrian Start External module...

  • Page 7: Function Logic

    English USER 1 - 24V DG MAXI WORKING TIMES SELF LEARNING NOTE: When using a magnetic limit switches in general; make sure that the control unit is set on magnetic limit switch before learning. MENU 104 - SELECT LIMIT SWITCH - “Magnetic”...
  • Page 8 English USER 1 - 24V DG MAXI SPECIAL MENU PRESS AT THE SAME TIME FOR 5 SECONDS TO ENTER OR TO EXIT THE SPECIAL MENU DOWN SPECIAL MENU FUNCTIONS TABLE USER 1 24V DG MAXI For entering into the special menu move on one of the menu and press the UP and DOWN buttons at the same time for 5 s.
  • Page 9 English USER 1 - 24V DG MAXI MENU SP Description Default Set Value Disabled 59 - OPENING * 30 SLOWDOWN 1 * Setting from 5 to 100 Disabled 60 - CLOSING * 30 SLOWDOWN 1 * Setting from 5 to 100...
  • Page 10 English USER 1 - 24V DG MAXI MENU SP Description Default Set Value With J1 between 2 and 3, and J2 inserted on CN5, you will 1 240 have 24 volts only during the cycle plus for the set time.
  • Page 11 English USER 1 - 24V DG MAXI MENU SP Description Default Set Value Auto-test active only on Photo1 Photo1 Auto-test active only on 95 - FOTOTEST Photo1-2 Photo2 Photo2 Auto-test active on Photo1-2 Photo1 and Photo2 Closing Photocell active in closing...
  • Page 12 English USER 1 - 24V DG MAXI MENU SP Description Default Set Value For applications with two motors in master-slave, it Master allows to set the control unit as master For applications with two 105 - MASTER-SLAVE motors in master-slave,...
  • Page 13 English USER 1 - 24V DG MAXI INPUT CHECK MENU The settings of the control unit are made through the UP, DOWN and OK buttons. The UP and DOWN buttons to scroll through the MENUS and SUBMENUS. By pressing OK you enter from MENU into SUBMENU and confirm the choice.
  • Page 14 English USER 1 - 24V DG MAXI RADIO TRANSMITTER SELF LEARNING WITH RECEIVER ON BOARD OF CONTROL UNIT WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CMR connector (if available) with turned off control unit.
  • Page 15 English USER 1 - 24V DG MAXI RADIO TRANSMITTER SELF LEARNING WITH RF FIX RECEIVER ON BOARD OF CONTROL UNIT WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CNS connector (if available) with turned off control unit.
  • Page 16 English USER 1 - 24V DG MAXI START - STOP - PEDESTRIAN START - ANTENNA - PHOTOCELL Photocell 1 and Photocell 2 Connections + = 24V (Accessories) max 750mA COM = 0V PH1 = Photocell contact 1 PH2 = Photocell contact 2 1 2 3 4 5 6 7 8 Note: For the autotest connect the TX to the AUX clamp and activate the Autotest function.
  • Page 17 The first movement in selflearning must always be executed in closing. ATTENTION: When using SEA magnetic limit switches, make sure that the motor is set on “Magnetic” present in the special menu 104-SELECT LIMIT 9 10 11 12 13 SWITCH.

  • Page 18: Motor Power Supply

    English USER 1 - 24V DG MAXI MOTOR POWER SUPPLY TRANSFORMER 115V~ 230V~ 3,6 A blow fuse on 230V ~ power supply 6,3A blow fuse on 115V ~ power supply POWER (CN8) Power input Input for the connection of the electric power.

  • Page 19: Master-Slave Function

    English USER 1 - 24V DG MAXI MASTER-SLAVE FUNCTION To set an installation with two motors in MASTER-SLAVE function it is recommended to do as follows: 1) Set the two motors as if they were two independent installations, make sure that the individual motor works properly and that the limit switches (when present) are read properly.
  • Page 20 If the password has been forgotten, the only way to unlock the control unit is to contact the SEA technical assistance, which will assess whether to provide the procedure to unlock the control unit or not.
  • Page 21 Materials handling must be made with appropriate vehicles.. WARRANTY LIMITS For the guarantee see the sales conditions on the official SEA price list. SEA reserves the right to make any required modification or change to the products and/or to this manual without any advanced notice obligation.
  • Page 22 SEA. 4) PAGAMENTI Le forme di pagamento ammesse sono quelle comunicate o accettate di volta in volta dalla SEA. Il tasso di interesse sul ritardo da pagamento è del 1,5% mensile e comunque non oltre il tasso massimo legalmente consentito.
  • Page 23 The recognized defects, whatever their nature, shall not produce any responsibility and/or damage claim on the part of the Buyer against SEA. The guarantee is in no case recognized if changes are made to the goods, or in the case of improper use, or in the case of tampering or improper assembly, or if the label affixed by the manufacturer has been removed including the SEA registered trademark No.
  • Page 24 14. Transit through the leaves is allowed only when the gate is fully open. 15. The User must not attempt to repair or to take direct action on the system and must solely contact qualified SEA personnel or SEA service centers. User can apply only the manual function of emergency.
  • Page 25 3. Este producto fue diseñado y construido exclusivamente para el uso especificado en esta documentación. Cualquier otro uso no expresamente indicado puede afectar la integridad del producto y ser una fuente de peligro. El uso inadecuado es también causa de anulación de la garantía. SEA S.p.A. se exime de toda responsabilidad causadas por uso inapropiado o diferente de aquel para el que el sistema automatizado fue producido.
  • Page 26 è stato testato singolarmente al fine di garantire i più alti livelli qualitativi e la vostra soddisfazione. Vi ringraziamo per aver scelto SEA. This item has been produced following strict production procedures and has been singularly tested for the highest quality levels and for your complete satisfaction.
