SEA Orion Manual

CN3
CN4
1
2
3
4
5
F2
CN6
LD1: Start Led
LD2: Stop Led
LD3: Photocell Led
LD4: Pedestrian Start Led
LD5: Close Limit Led (with DIP3 = ON)
Open Limit Led (with DIP3 = OFF)
LD6: Open Limit Led (with DIP3 = ON)
Close Limit Led (with DIP3 = OFF)
LD7: Indicator Led
F1: Accessory Fuse 2 A
F2: Motor Fuse 5 A (T)
T1: Transformer
CN1: Rev. Sensor Terminals
CN2: Motor Terminals
Cod. 67410170
SEA S.r.l. Zona Ind.le S. Atto – Teramo – Italia
Sito Internet: http://www.seateam.com
E-mail: seacom@rgn.it (Uff. Commerciale)
MPU/EO ORION WITH REVERSE LOGIC
(cod. 23005005)

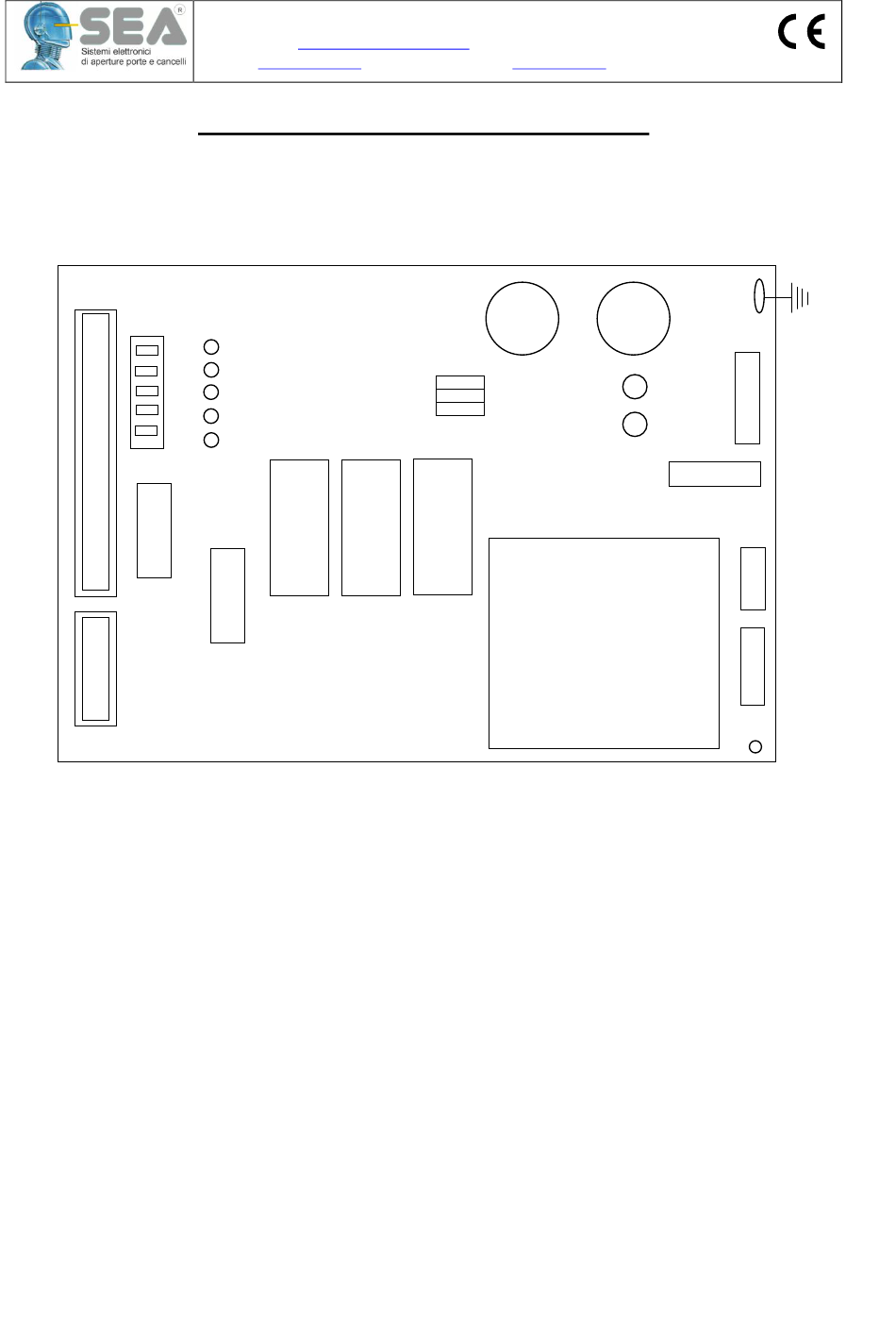

Circuit board layout
LD1
LD2
LD3
LD4
LD7
RL2 RL3
F1
Rev. 02 , 06/2001
seatec@rgn.it
TR1
DIP1
DIP2
DIP3
RL1
Fig. 1
CN3: Main Terminals
CN4: Radio Receiver Terminals
CN5: Limit Terminals
CN6: Power Supply Connector 220/240V
CN7: Motor Condenser Terminals
FST1: Earth Tag
RL1: Brake Relay
RL2: Motor Relay
RL3: Direction Relay
DIP1: Excludes Reverse
DIP2: Selects Functioning Logic
DIP3: Selects Gate Direction
TR1: Time regulation Trimmer
TR2: Brake regulation Trimmer
(Uff. Tecnico)
FST1
TR2
CN5
LD5
LD6
CN1
CN7
T1
CN2
Pag. 1 di 4
