Johnson Controls METASYS Zone Terminal Installation Sheet page 9

Option 1: Job Site
To download a ZT for a VAV/UNT through the TE-6100 Zone Sensor
Downloading With
(Figure 4), use a AS-CBLCON-0, AS-CBLPRO-1, and a laptop.
UNT/VAV Using
CBLCON-0
TE-6100
Notes:
All manuals and user guides at all-guides.com
AS-CBLCON-0
8 8
6 6 6
ZONE TERMINAL

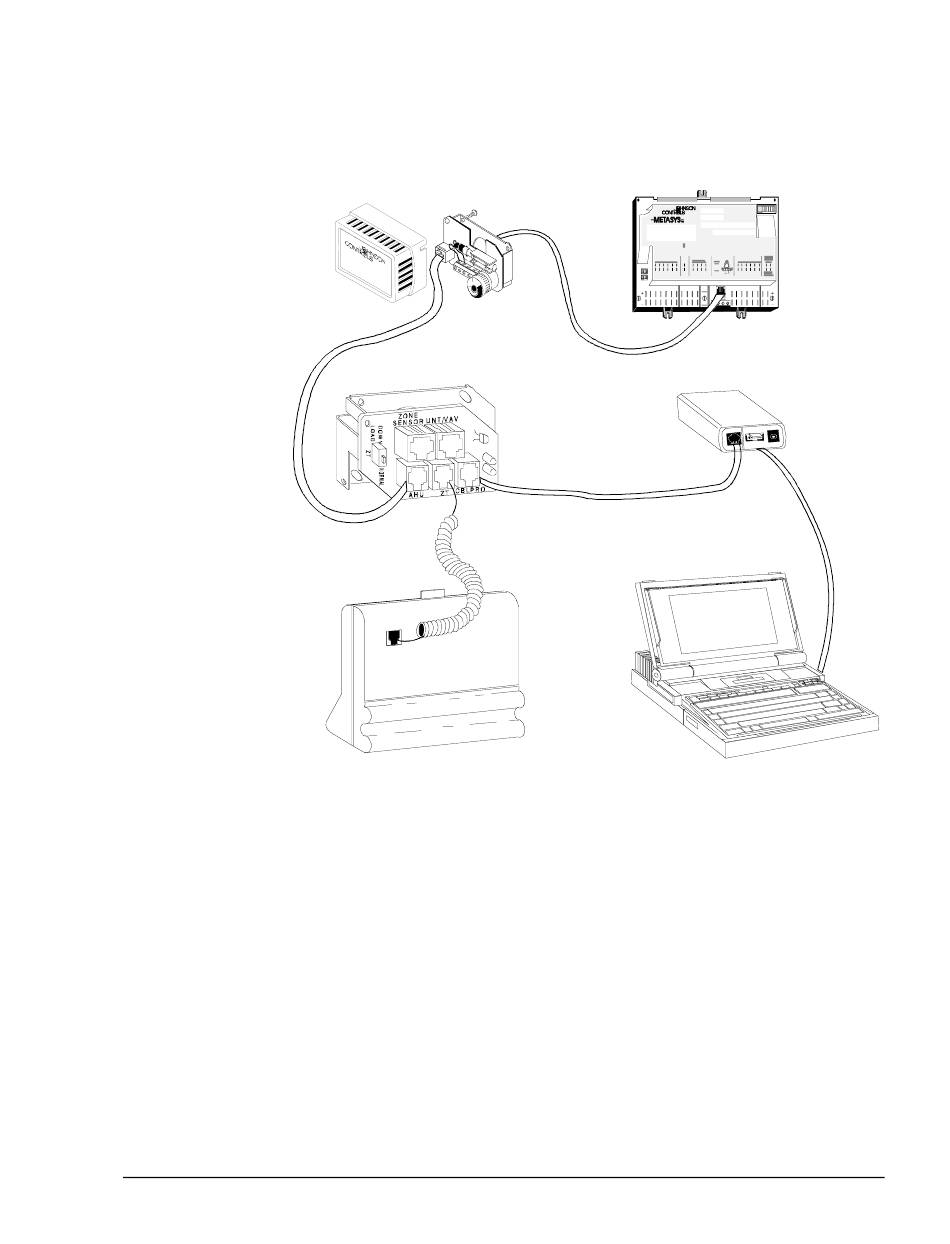

Figure 4: Job Site Downloading With UNT/VAV Using AS-CBLCON-0
It is assumed that 24 VAC power has been applied to the
controller.
The AS-CBLCON-0 switch must be in the download position.
UNT or VAV
AS-UNT101-0
ANALO G INPUTS BINAR Y O U TPU T
P WR
IN
2 4 V
A NA LO G INP UTS BI N AR Y CO M A C 24 VAC T O L OADS
COM MON
ANALOG INP UTS BINAR Y IN BINA RY OUT PUTS ANA OUT
AS-CBLPRO-1
LAPTOP
Zone Terminal
DWNL
