Johnson Controls METASYS Zone Terminal Installation Sheet page 17

Attach the base, pulling the telephone jack type cord through the opening
as shown below. Plug the cord into the back of the ZT and snap the ZT
into position.
Wall Mount
For office or other types of remote connections, attach the Wall Mount to a
Installation
flat surface or wall. Use three screws and plastic anchors (not provided).
For easy reading, mount the ZT at least 65 inches from the floor to the top
of the ZT. Insert the telephone-type cord from the controller into the back
of the ZT.
All manuals and user guides at all-guides.com

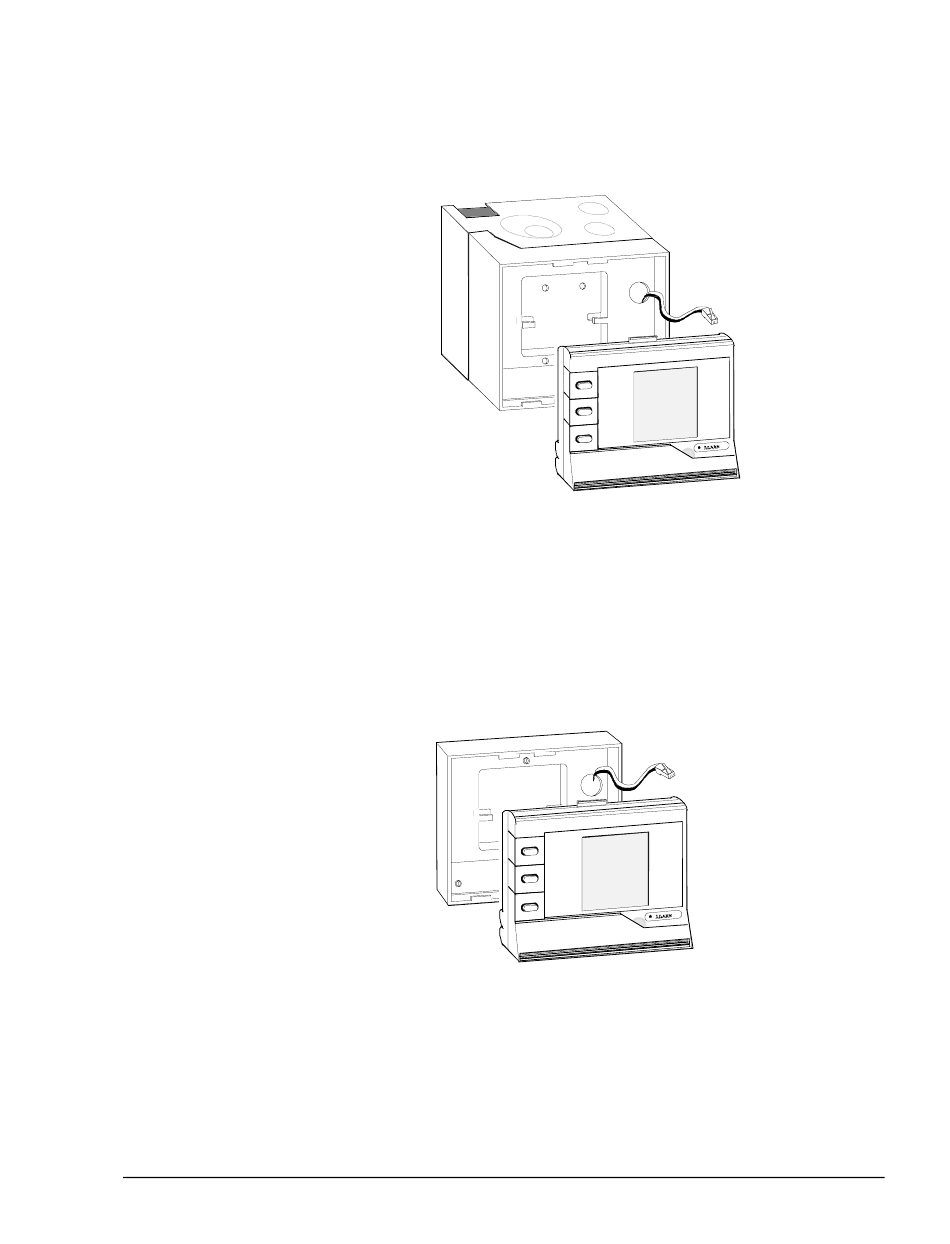

Figure 11: Connecting and Mounting the ZT
Figure 12: Attaching ZT and Wall Mount
WALMTZT
Zone Terminal 17
