Other connections for remote hook-ups include permanently connecting to
a UNT or VAV using the AS-CBLCON-0 and TE-6100 Zone Sensor
(Figure 15).
20 Zone Terminal
All manuals and user guides at all-guides.com
Connect TE-6100 here.
Switch must be in
normal position.

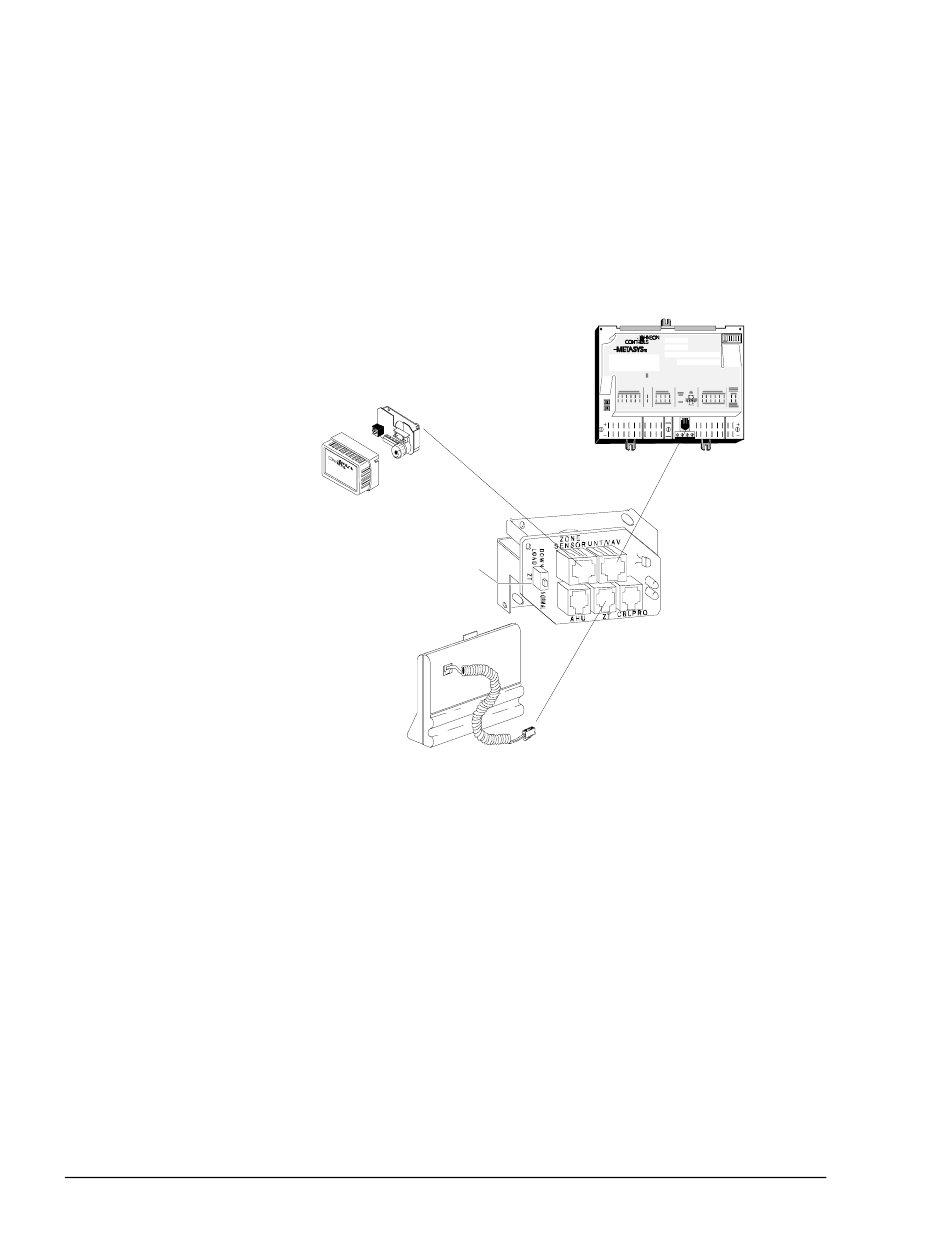

Figure 15: Connecting Remote ZT to UNT/VAV With AS-CBLCON-0 and
AS-UNT101-0
ANALO G I N PU T S
COM MON
ANALOG INPUTS BINARY IN
Connect VAV/UNT here.
8 8
6 6
6
CONCT2J
Connect ZT here.
Zone Sensor
P WR
IN
2 4 V
A C
BINARY OUTPUTS ANA OUT
