Before attaching the Enclosure Kit (AS-ENC100-0) to the wall, remove
Physical
the rectangular knockouts at either the top or the bottom, depending on
Installation of Wall
which end the wires will run through.
Mountings and
Bases
Enclosure Kit and
Attach the Enclosure Kit (AS-ENC100-0) to a flat surface or wall for
Base Installation
direct connection of the ZT to an Application Specific Controller. Pull
wire through before attaching screws for the plastic base.
16 Zone Terminal
All manuals and user guides at all-guides.com
Knock wire
passage out
on top or
bottom.

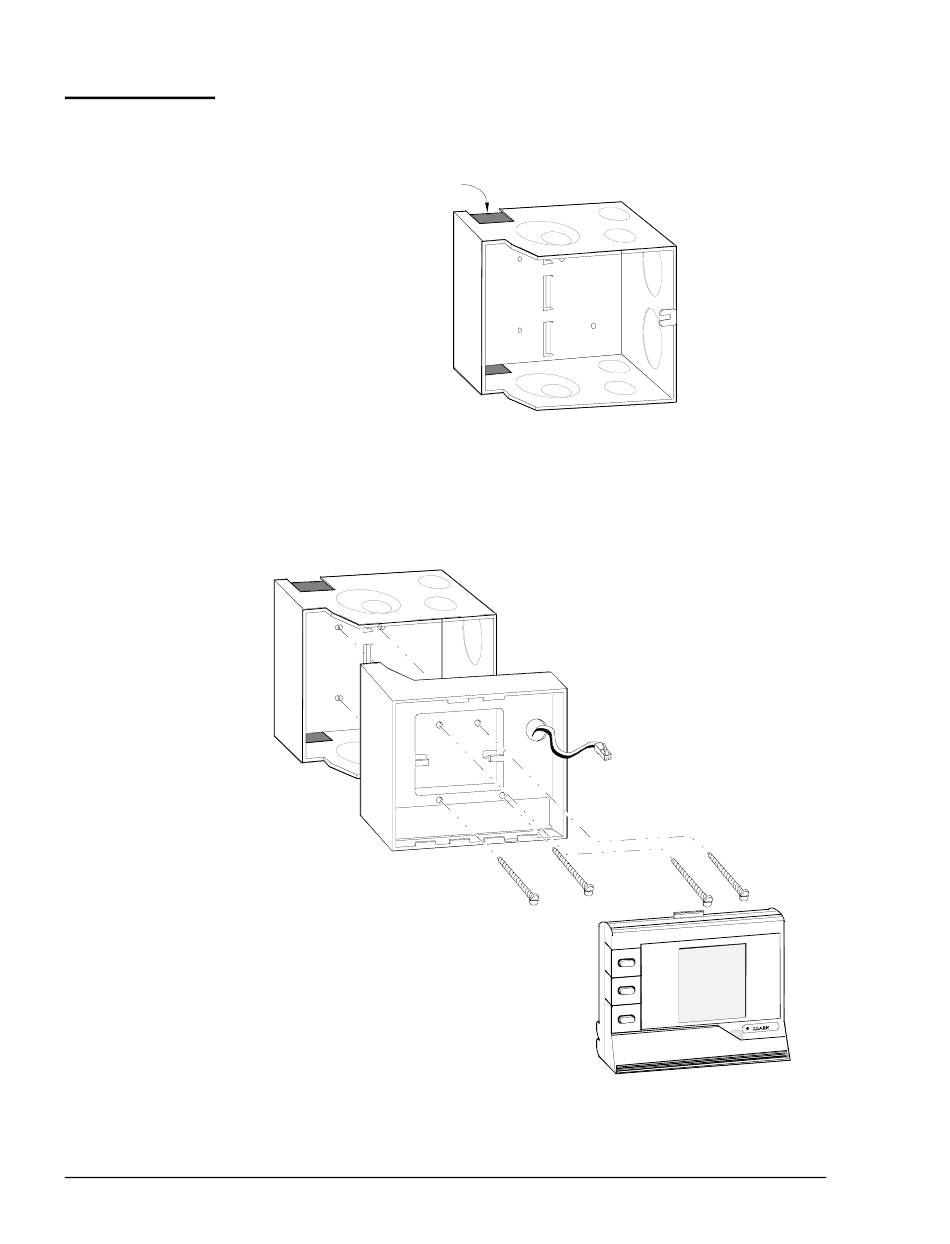

Figure 9: Remove Knockouts
Figure 10: Attaching the Enclosure Kit and Utility Mounting Base
KNOCKOUT
MT&BASE
