Prior to connection, the ZT must be downloaded using the ZT PRO
Connecting the
software tool which is part of the HVAC PRO Rev. 3.0. Refer to the
Zone Terminal
HVAC PRO User's Manual, ZT PRO Section.
Wiring
If ZT is connected 50 feet or less from the controller, install 24 AWG
Considerations
telephone cable between the controller and the ZT.
If ZT is connected up to 500 feet from the controller, install 18 AWG wire.
The ZT requires 24 VAC, Common, and Zone Bus.
Before you mount the ZT or connect it to a controller, the clear plastic
Installing the
insert that describes the displayed values must be in place.
Inserts
1. Lay the ZT flat and press the white tab on the top of the ZT while
2. Align the insert to the lower left front of the ZT.
3. Press the pieces back together.
14 Zone Terminal
All manuals and user guides at all-guides.com
pulling the front cover towards you.

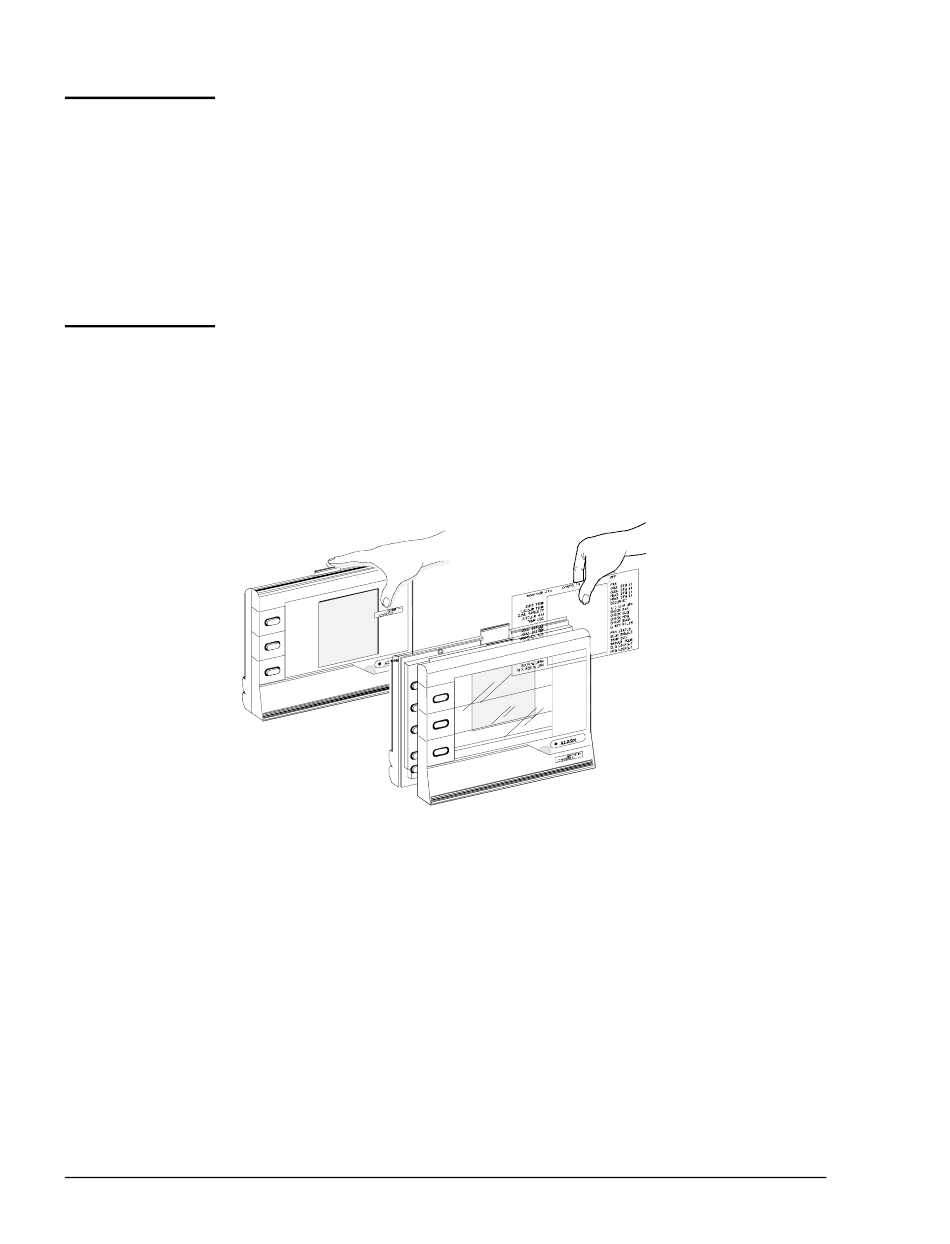

Figure 7: Template Installation
