- Page 1 User Manual Article No: RGB-RD-UM- X8 E005 Revision No: V1.5...
-
Page 2: Table Of Contents
5.1 Contact Us ..............................42 Chapter 6 Appendix ..............................43 6.1 Specification ..............................43 6.2 Terms & Definitions ............................44 6.3 Revision History .............................. 49 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 3: Declarations
RGBlink. If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. -
Page 4: Operators Safety Summary
The AC Socket-outlet should be installed near the equipment and be easily accessible. Please refer to and follow the instruction for the save device installation and connection of device. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 5 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 6: Chapter 1 Your Product
Chapter 1 Your Product 1.1 Packing Configuration HDMI Cable Network Cable AC Power Cord Note: AC Power Cable supplied as standard according to destination market. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 7: Product Overview

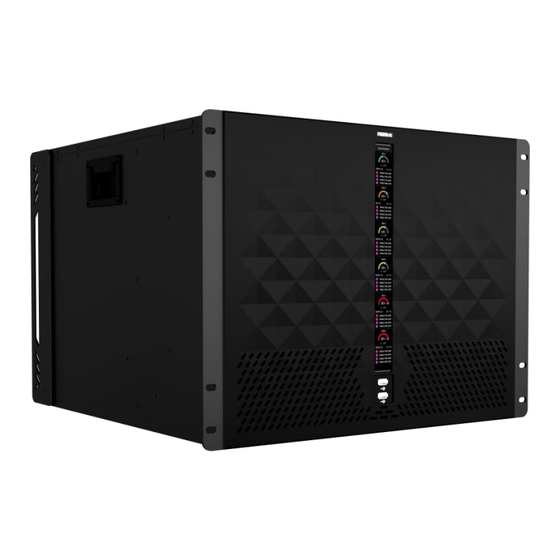

X8 is an HDCP compliant, scalable and extendable routing and video wall processor configurable to support a variety of inputs and outputs. It features RGBlink 3rd generation high performance video scaling technology for excellent image reproduction. The most outstanding feature of it is its throughly modular design, the card frame style, SmartSlot system allowing installation of up to 24 inputs and 12 outputs. - Page 8 LED & LCD Compatible Multi-4K Source to Different Screens Multi-Control © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 9: Rear Panel
● Optional Output modules: Dual HDMI 2.0 Output Module,Dual DP 1.2 Output Module (preliminary). Communication ports including GENLOCK,LAN,RS232,CTL,USB 3.0 and HDMI. CXP ports (to be developed). 2 slots for power supply modules and power switch. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 10: Front Panel
TFT-LCD panel to show the info of input and output modules, device status, weather and so on. ● 1×USB 2.0 port for upgrade; ● 1×USB 3.0 port(blue) to be developed. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 11: Dimension
1.2.3 Dimension Following is the dimension of X8 for your reference: Dimension: 522mm×484mm×355.6mm © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 12: Chapter 2 Install Your Product
The system begins to work,and the TFT-LCD screen shows the input slot and output slot information, device status, COM. Versions. IP address and serial number. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 13: Chapter 3 Use Your Product
,it will pop-up the installer language box, select the language, for example, select “English”, and click “OK” to confirm. Click “Next” to install: Click “Browse...” to select the XPOSE software install location: © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 14 During installation, it will pop up the window of Install Shield Wizard for Virtual Com port: Click “Next": Then click “Install", as shown in the figure below: © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 15 Click “Finish” and complete the installation, as shown in the figure below: Click “Finish” and is ready to run the XPOSE : © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 16: Xpose Controls X8
Management, Preset Management, Keyboard Settings. The details of each hierarchy will be described hereafter. 3.2.2 Input and Output Settings Connect the Device Click the icon to open【System Setting】, and select X8 in【Find Device】. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 17 Click any input port in purple area, the board where the port locates is selected. Users can do settings to the board now. A red rectangle flashes around the chosen port when it is clicked. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 18 Width/Height: Vertical and horizontal size Crop Left: Crop left Top: Crop top Width: Horizontal size after crop Height: Vertical size after crop SDR to HDR © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 19 Format Range: Select ALL or Module. All means this setting is applied to all output ports, Module means this setting is only valid on this module. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 20 Format for Module: 1024×768@60 to 7680×1080@60 DE Setting Port: Choose current port or Port All Bits: 8bits/10bits/12bits Color Space: RGB/YUV 4:2:2/YUV 4:4:4 HDR: SDR/HDR 10/HLG OSD Setting © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 21 Input Text: The exact content of the text After setting, users choose Save OSD, Clear OSD (if the setting is not desired) or Close All OSD. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 22 IP Setting Select Auto IP address or manually type in the IP address, MASK and Gateway. Fan Control Auto Adjustment: ON/OFF Fan Speed: 0-100 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 23: Display Management
Save IP: No change of IP after reset 3.2.3 Display Management Display System is for users to set layout of outputs. Click this icon first enter the interface as follow: © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 24 Mode and Edge Blending. Rotation and Edge blending is valid only when ARO rotation module is installed to the device. Each mode is marked in different color and provided with fitted templates. Container (dragged from Template) under Presentation Mode. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 25 Fill in the H Total, V Total, Row and Column, then click a customized containers is created. If this container need to be saved, click For example create a , 1×2 ,7680×2160 container as follows. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 26 Show all the output ports on the device. Once the monitor is dragged into container, it means this output is used and the output port gets dark. Click this icon on Display to cancel the display in Display Area. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 27 Parameter is designed to set size ( Width, Height ) and position (X,Y) of each display. There are two ways to adjust the display, by Parameter or by the bar below the window. Parameter © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 28 Bar under XPOSE window Swap : Swap two output ports if needed. Hotkey © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 29: Layer Management
Display Area. Signal To show the signal list of all inputs. Drag source from signal list to each display or Container. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 30 There are two ways to adjust layer. 1. Use the bar under the interface Choose one layer and the bar shows its signal source, type in position and size. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 31 Layer Max Click this icon to cover up all monitors in the same Display Area with the one signal, as the following: © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 32 When layer setting of one BANK is done, click next or other BANK, this BANK can be saved automatically. Blending Width:the width of blending Turn ON blending. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 33: Preset Management
Preset Management is designed to switch bank (scene setting done in last step). Preset Management Mode: 1. Manual Mode; 2. Schedule Mode Manual Mode © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 34 BANK. Fade Time: 0.0 ~10.0S Black out: Slide to ON or OFF The tick on the bank indicates that the bank is selected. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 35 Click Load Page, pages with bank saved are green, select one from them and the selected one becomes red. The bank is loaded from page to PST. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 36 Click the color block after Color Selection and choose a new color for the boarder of chosen bank. For example change Bank1to RBGlink, with pink boarder © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 37: System Setting
After settings done, turn on “Loop Switch” . Users can click to edit and 3.2.6 System Setting Click this icon and enter System Setting interface © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 38 Drag Input, Output, Layer and Preset from the list to the keys you desired as follow: Please note the keyboard area where allows to set short cut keys as follow: © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 39 New version of XPOSE 2.0 is blank default in Find Device. Users are supposed to choose the device needed in System Setting. Communication Setting Search by Serial Port, Ethernet Connection or Both. Default communication by both. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 40 Delete: Delete user name and password already built. Permission: Functions on this XPOSE 2.0 on this computer that the created users are allowed to operate. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 41 3. click ON,the tow device are connected when the red pot turns to be green one 4. click OFF to disconnect, it could not control two device at the same time. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 42: Chapter 4 Order Codes
4.2.2 Output Modules 190-0008-21-0 X8 Dual HDMI 2.0 Output Module 190-0008-22-0 X8 Dual DP 1.2 Output Module (preliminary) 4.2.3 Others 950-0006-00-0 X8 Power Supply Module 1200W © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 43: Chapter 5 Support
Chapter 5 Support 5.1 Contact Us © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 44: Chapter 6 Appendix
2160p@25/29.97/30/50/59.94/60 VESA 640×480@60|800×600@75|1280×768@50/60| 1280×1024@60|1360×768@60|1600×1200@60| 1920×1080@60|2048×1152@60|2560×812@60| 2560×816@60|2560×1600@60|3840×1080@30/60| 3840×2160@30/50/60 Format Standard HDMI 2.0 Color Space RGB/YUV444 | YUV422 Indicator Light White Light:normal signal connection;Unlit:no signal connection © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... -
Page 45: Terms & Definitions
29 pins that handles both digital and analog video. ●SDI：Serial Digital Interface. Standard definition video is carried on this 270 Mbps data transfer rate. Video pixels are © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com... - Page 46 120 Hz with 30 bit/px RGB color and HDR. 4K at 60 Hz 30 bit/px RGB/HDR can be achieved without the need for DSC. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 47 Gen 2x2 (original name USB 3.2) with speed up to 5Gbps,10Gbps,20Gbps respectively. USB version and connectors figure: Type A Type B Mini A Mini B Micro-A Micro-B Type C USB 2.0 USB 3.0 USB 3.1&3.2 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 48 ●H.264: Also known as AVC (Advanced Video Coding) or MPEG-4i is a common video compression standard. H.264 was standardized by the ITU-T Video Coding Experts Group (VCEG) together with the ISO/IEC JTC1 Moving Picture Experts Group (MPEG). © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
- Page 49 This serves as a colour synchronizing signal to establish a frequency and phase reference for the Chroma signal. Colour burst is 3.58 MHz for NTSC and 4.43 MHz for PAL. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
-
Page 50: Revision History
Aster 2. Update order codes All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd. While all efforts are made for accuracy at time of printing, we reserve the right to alter otherwise make change without notice.
