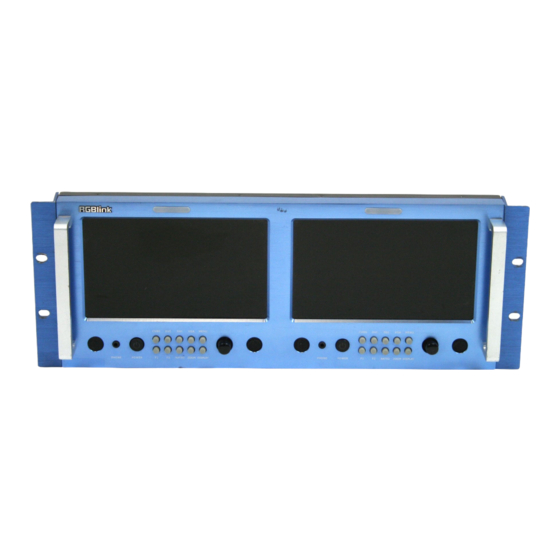

- Page 1 RMS 8424S USER MANUAL Article No: RGB-RD-UM-RMS 8424S E001 Revision No: V1.4...
-
Page 2: Table Of Contents
Chapter 5 Support ............................27 5.1 Contact Us ............................. 27 Chapter 6 Appendix ............................. 28 6.1 Specification ..........................28 6.2 Installing Input Options ......................... 30 6.3 Terms & Definitions ........................32 6.4 Revision History ..........................36 RMS 8424S User Manual... -
Page 3: Declarations
RGBlink. If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. -
Page 4: Operators Safety Summary
Installation Safety Summary Safety Precautions For all RMS 8424S processor installation procedures, please observe the following important safety and handling rules to avoid damage to yourself and the equipment. To protect users from electric shock, ensure that the chassis connects to earth via the ground wire provided in the AC power Cord. -
Page 5: Site Preparation
Site Preparation The environment in which you install your RMS 8424S should be clean, properly lit, free from static, and have adequate power, ventilation, and space for all components. -
Page 6: Chapter 1 Your Product
Chapter 1 Your Product 1.1 In the Box AC Power Cord Screen Film Warranty Card Screw Driver & USB Files Antistatic Bag QC Declaration Note: USB is contained on the Warranty/Registration Card. Please keep. RMS 8424S User Manual... -
Page 7: Product Overview
There are 2 function keys on the monitor front panel, and users could define the functions to achieve shortcut. User defined video title User can edit a video title for the current camera, and the title will display on the top of screen. RMS 8424S User Manual... -
Page 8: Back Panel
Output Connectors DVI-I – DVI LOOP Connect to the DVI input of the next RMS 8424S or the device with DVI input. BNC – 3G-SDI LOOP Connect to the SDI input of the next RMS 8424S or the device with SDI input. -
Page 9: Power Connection
Chapter 1: Your Product 0.5V-1.3V Indeterminate state USB-B – USB Used to software upgrade and video playing. Power Connection Power Input Connect with DC12V power adapter. And the power polarity is negative inside and cathode outside. RMS 8424S User Manual... -
Page 10: Front Panel
This button used for menu selections and confirmation. Note: Push the knob to adjust volume when exit the menu system. Buttons F1/F2 Button 3. 4 User defined function key. RATIO Button Push the button, user can choose the ration 16:9 or 4:3. RMS 8424S User Manual... - Page 11 This button used for menu selections – refer to Using the Menu. Push the button again will return to the last level menu or exit the menu. TALLY Light TALLY Light Red, Green and Yellow TALLY indicator. RMS 8424S User Manual...
-
Page 12: Dimension
Chapter 1: Your Product Dimension 1.2.3 Following is the dimension of RMS 8424S for your reference: RMS 8424S User Manual... -
Page 13: Chapter 2 Installing Your Product
Connect IEC cable to device and plug into wall socket. Turn on power at wall socket. 2.3 Turning on Your Product Push “POWER” button and the power indicator is turned on, and after 10 seconds, the monitor will be switched on and get into working status. RMS 8424S User Manual... -
Page 14: Chapter 3 Using Your Product
Push the knob (select yellow ) to enter the selected item, rotate the knob to select the parameter. 3. Under menu system, push the “MENU” button to back to previous menu, then push the “MENU” button to exit. RMS 8424S User Manual... -
Page 15: Using The Menu
Yellow is the selected letters, rotate the knob to select the letters, and push the knob to input. Max 10 letters are supported. After setting, push the knob to confirm, the system will display the user defined title. RMS 8424S User Manual... -
Page 16: Picture Submenu
5. COLOR TEMP: Color temperature, the selections includes: cool, medium, warm and user. 6. PIC MODE: User defined and preset picture modes, including dynamic, standard, mild and user. 7. HUE: 0~100 (Only available under CVBS NTSC input, other signal display gray and can not be adjusted). RMS 8424S User Manual... -
Page 17: Osd Submenu
3. V-POSITION: Adjust the vertical position of the menu window, the adjustment range is 0~100. 4. DURATION: Menu timeout setting, the adjustment range is 5-60s, choose “Off”, it will automatically exit if no operation, system default “Off”. RMS 8424S User Manual... -
Page 18: Display Submenu
5. MARKER 4:3: Choose “ON”, then 4:3 scale mark on image. 6. AUTO TP: Choose “ON”, and open the auto test pattern function. 7. AUTO TIME: The auto switch time adjustment range is 5 to 30S. RMS 8424S User Manual... -
Page 19: F Key Submenu
USB PLAYER: “ON” or “OFF”, choose “ON”, user can open USB player. SN NUM: Display the serial number (For read only). MCU VER: Display the software version information (For read only). SDI Version: Display the SDI version information (For read only). RMS 8424S User Manual... -
Page 20: Vga Setup Submenu
Chapter 3: Using Your Product 3.2.6 VGA Setup Submenu Enter to “VGA Setup” submenu to adjust VGA-HPOS (0~100), VGA-VPOS (0~100), CLOCK (0~100), PHASE (0~100). Also can select “ON” at “AUTO ADJUST” to adjust when input VGA signal. RMS 8424S User Manual... -
Page 21: Turn On/Off The Monitor
The monitor will memory the state before shutdown, and will keep the state when start the computer next time. Note Disconnect with power cable if the monitor will not be used for a period of time. RMS 8424S User Manual... -
Page 22: Monitor The Audio
1. Push the “SDI” or “DVI” button, user can monitor SDI and HDMI (supported by DVI input) embedded audio. 2. Push the knob, (or wait for about 5 seconds when out of menu system), rotate the knob to choose the desired volume. RMS 8424S User Manual... -
Page 23: User Defined The Function Key
1. Push the “MENU” button, and enter to “MENU” system. Rotate the knob, and choose “FKEY” option, push the knob to confirm. 2. Rotate the knob, and choose “F1 KEY” or “F2 KEY”, push the knob to confirm. 3. Rotate the knob to choose items, push the knob to confirm. RMS 8424S User Manual... -
Page 24: Display Aspect Ratio
First, ensure the monitor power on and in normal operation. Specific operations are as follows: 1. Push the “RATIO” button. 2. Rotate the knob to choose the aspect ratio, aspect ratio has two options, 16:9 and 4:3. 3. Push the knob to confirm. RMS 8424S User Manual... -
Page 25: Display Current Settings
2. Push the “DISPLAY” button, the LCD screen displays the current input signal information, including: RATIO SCAN MARKER FLIP ZOOM MARKER: Push the “F1” button to adjust the width of the marker, and push the “F2” button to adjust the height of the marker. As shown below: RMS 8424S User Manual... -
Page 26: Using Tally Light
4. The GREEN light is on when connecting the terminal “G” with “GND”, and goes out when disconnecting. 5. The YELLOW light is on when connecting the terminal “Y” with “GND”, and goes out when disconnecting. RMS 8424S User Manual... -
Page 27: Chapter 4 Ordering Codes
Chapter 4 Ordering Codes 4.1 Product 400-8424-01-0 Dual LCD Preview Monitors 400-8424-02-0 Dual LCD Preview Monitors w/SDI 4.2 Options 4.2.1 Input Options 490-5353-01-0 SDI Input Module Option RMS 8424S User Manual... -
Page 28: Chapter 5 Support
Chapter 5 Support 5.1 Contact Us RMS 8424S User Manual... -
Page 29: Chapter 6 Appendix
250m at 1.485Gb/s 480m at 270Mb/s DVI Input Number of Inputs Connector Standard DVI-I socket Supported Resolution SMPTE：480i@60|480p@60|576p@50|720p@50/60|1080i@@50/60 1080p@50/60 VESA：640x480@60|800x600@60|1024x768@60 1280x1204@60|1440x1440@60|1440x1530@60|1523x1536@60 1600x1200@60|1920x1200@60|2048x1152@60|2560x816@60 2688x896@60|2700x1000@60|2800x990@60|2900x959@60 2986x931@60|3840x670@60|3840x733@60 Signal Level TMDS pwl, single pixel input,165MHz bandwidth Format Standard HDMI 1.3 VGA Input RMS 8424S User Manual... - Page 30 SMPTE 422, SMPTE 259M-C, SMPTE 292M Supported Resolution 480i@60 | 576i@50 | 720p@50/60 | 1080i@@50/60 | 1080p@50/60 Extras Power 5.4mm DC Socket Max Power Temperature 0°C~40°C Humidity 10% to 85% Product Warranty 3 years parts and labor warranty RMS 8424S User Manual...
-
Page 31: Installing Input Options
Chapter 6: Appendix 6.2 Installing Input Options SDI is the optional module for RMS 8424S Rack Mount Monitor, it can be installed based on user’s requirements. The following is the picture of SDI input module: Specific installation steps are as follows: Step 1: Unscrew the screw above the rear panel with the screwdriver, take the rear panel apart. - Page 32 Step 3: Install the SDI input module in the area as shown above, then tighten the screws, install it one by one. Step 4: When SDI input module installation complete, assemble the two circuit boards, and lock the rear panel, adding SDI input module finished. RMS 8424S User Manual...
-
Page 33: Terms & Definitions
Color burst is 3.58 MHz for NTSC and 4.43 MHz for PAL. “Color temperature”: The color quality, expressed in degrees Kelvin(K), of a light source. The higher the color temperature, the bluer the light. The lower the temperature, the RMS 8424S User Manual... - Page 34 JPEG typically achieves 10:1 compression with little perceptible loss in image quality. Produces blocking artifacts. “MPEG”: Motion Picture Expect Group. A standard committee under the auspices of the RMS 8424S User Manual...
- Page 35 Low saturation is like adding white to the color. For example, a low-saturated red looks pink. “Scaling”: A conversion of a video or computer graphic signal from a starting resolution to a new resolution. Scaling from one resolution to another is typically done to optimize the RMS 8424S User Manual...
- Page 36 640×480 with a color palette of 16 bits and 256,000 colors. “YCrCb”: Used to describe the color space for interlaced component video. “YPbPr”: Used to describe the color space for progressive-scan (non-interlaced) component video. RMS 8424S User Manual...
-
Page 37: Revision History
2. Update the front and back panel. V 1.3 2015-10-27 0003 Vira 3. Update the dimension drawing. V 1.4 2016-10-17 0004 1. Update the style and structure of the Vira user manual. 2. Update the specification. RMS 8424S User Manual...
