Summary of Contents for Kramer TP-600TRxr

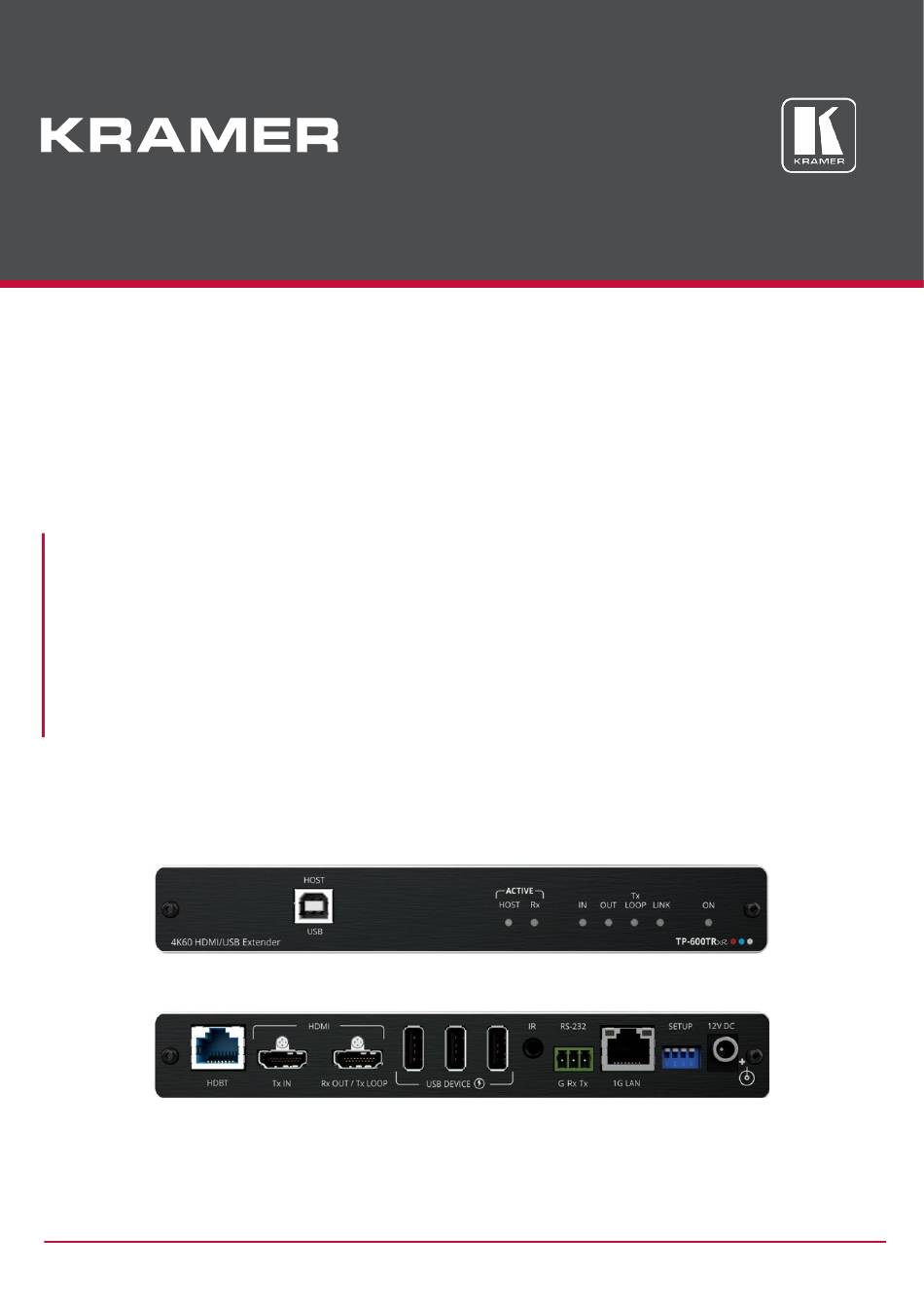

- Page 1 USER MANUAL MODELS: TP-600TRxr TP-600TR 4K60 HDMI/USB Extender P/N: 2900-301503 Rev 1 www.kramerAV.com...
-
Page 2: Table Of Contents
Kramer Electronics Ltd. Contents Introduction Getting Started Overview Typical Applications Defining TP-600TRxr 4K60 HDMI/USB Extender Mounting TP-600TRxr Connecting the 4K60 HDMI/USB Extender Connecting TP-600TRxr Connecting TP-600TR Connecting to TP-600TRxr via RS-232 Setting the DIP-Switches Technical Specifications TP-600TRxr Specifications TP-600TR Specifications... -
Page 3: Introduction
Kramer Electronics Ltd. Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we... -
Page 4: Overview
European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/il/quality/environment. -
Page 5: Typical Applications
• Corporate – Hybrid and online meetings. • Education – Hybrid and online learning and training. • Any AV, Ethernet (TP-600TRxr only) and USB room extension applications such as conference rooms, boardrooms, and training facilities. TP-600TRxr – Introduction... -
Page 6: Defining Tp-600Trxr 4K60 Hdmi/Usb Extender

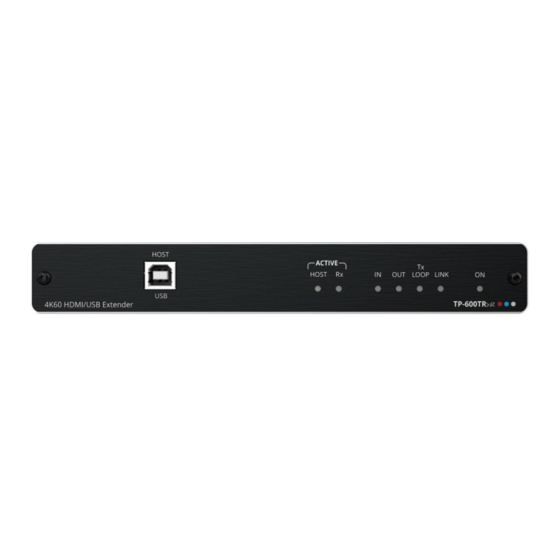

The extender device functions as a transmitter or receiver as defined by the SETUP DIP-switch 1 setting on the rear panel (see Setting the DIP-Switches on page 11). Figure 1: TP-600TRxr 4K60 HDMI/USB Extender Front Panel Figure 2: TP-600TR 4K60 HDMI/USB Extender Front Panel Feature Function HOST USB B 2.0... - Page 7 Kramer Electronics Ltd. Figure 3: TP-600TRxr 4K60 HDMI/USB Extender Rear Panel Figure 4: TP-600TR 4K60 HDMI/USB Extender Rear Panel Feature Function ENTER Button Press to move to the next level in the OSD screen or to accept a new parameter.
-
Page 8: Mounting Tp-600Trxr
Kramer Electronics Ltd. Mounting TP-600TRxr This section provides instructions for mounting TP-600TRxr. Before installing, verify that the environment is within the recommended range: • Operation temperature – 0 to 40C (32 to 104F). • Storage temperature – -40 to +70C (-40 to +158F). -
Page 9: Connecting The 4K60 Hdmi/Usb Extender
Error! Reference source not found. on page Error! Bookmark not defined.. • Setting the DIP-Switches on page 11. Always switch off the power to each device before connecting it to your TP-600TRxr. After connecting your TP-600TRxr, connect its power and then switch on the power to each device. Connecting TP-600TRxr Figure 5: Connecting to TP-600TRxr TP-600TRxr –... - Page 10 Kramer Electronics Ltd. To connect TP-600TRxr as illustrated in the example in Figure 1. Use the DIP-switches to define one device as a transmitter and the other as a receiver (see Setting the DIP-Switches on page 11). 2. Connect the HDBT port...
-
Page 11: Connecting Tp-600Tr
Connect the USB DEVICE ports on the transmitter side to USB devices (for example, the room microphone, mouse, and keyboard). ▪ Connect the USB DEVICE ports on the receiver side to USB devices (for example, a smart board, soundbar and camera). TP-600TRxr – Connecting the 4K60 HDMI/USB Extender... - Page 12 PTZ camera. Send serial commands from SL-240C to the camera via RS-232. 9. Connect the power adapter to TP-600TR and to the mains electricity (not shown in Figure TP-600TR is connected. TP-600TRxr – Connecting the 4K60 HDMI/USB Extender...
-
Page 13: Connecting To Tp-600Trxr Via Rs-232
ON (down) – Add IR modulation (38kHz) to the IR output signal (applies only when the IR port is connected to an IR emitter cable). Off (up) – Normal operation mode is enabled (FW programming RS-232 is inactive). Programing RS-232 On (down) – FW programming RS-232 is active. TP-600TRxr – Connecting the 4K60 HDMI/USB Extender... -
Page 14: Technical Specifications
On a 3.5mm mini jack for IR link extension 1 RS-232 On a 3-pin terminal block for serial link extension Extension Line Reach Up to 100m (330ft), when using Kramer HDBaseT cables Standards Compliance HDBaseT 3.0 Video Max Data Rate... -
Page 15: Tp-600Tr Specifications
Extension Line Reach Up to 40m (130ft) at 4K@60Hz (4:4:4), when using Kramer HDBaseT cables Up to 70m (230ft) at up to 4K@30Hz (4:4:4), when using Kramer HDBaseT cables Standards Compliance HDBaseT 3.0 Video Max Data Rate 18Gbps bandwidth (6Gbps per graphic channel) - Page 16 This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller.
- Page 17 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our website where updates to this user manual may be found. We welcome your questions, comments, and feedback.
