Summary of Contents for Kramer PT-5R/T

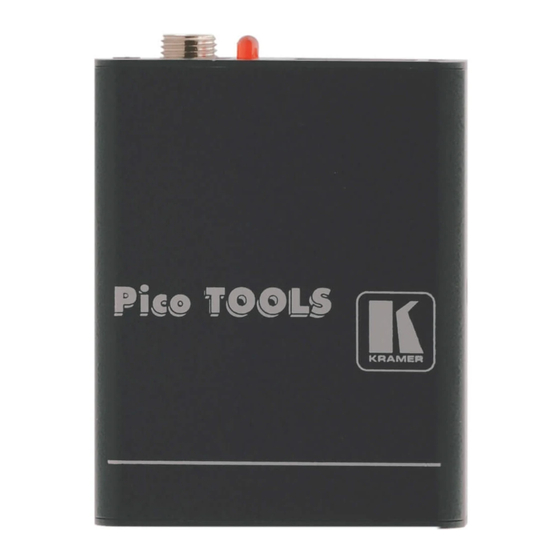

- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: PT-5T/R IR Extender/Repeater P/N: 2900-300010 Rev 3...
-
Page 3: Table Of Contents
Contents Introduction Getting Started Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the PT-5T/R IR Extender/Repeater Connecting and Using the PT-5T/R IR Extender/Repeater Identifying the IR Receiver and IR Emitters Connecting the PT-5T/R IR Extender/Repeater Using the PT-5T/R IR Extender/Repeater... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The PT-5T/R is an IR transmitter and receiver pair that lets you control up to five devices via their own remote control transmitters from an extended distance over TP (twisted pair) cable. In particular, the PT-5T/R: Lets you operate IR devices that are stacked away in closets, cabinets and even other rooms ... -
Page 8: Figure 2: Pt-5R Ir Extender/Repeater
Figure 2 defines the front and rear panels of the PT-5R. Figure 2: PT-5R IR Extender/Repeater Feature Function OUT 1 3.5mm Mini Jack Plug in the third IR emitter (see Section 4.1) OUT 2 3.5mm Mini Jack Plug in the fourth IR emitter OUT 3 3.5mm Mini Jack Plug in the fifth IR emitter IN (CAT 5) RJ-45 TP... -
Page 9: Connecting And Using The Pt-5T/R Ir Extender/Repeater
Connecting and Using the PT-5T/R IR Extender/Repeater Identifying the IR Receiver and IR Emitters The receiver and emitters can be identified by their size and shape. The receiver is large and trapezoidal in shape; the emitters are small and rectangular in shape with a rounded top. -
Page 10: Using The Pt-5T/R Ir Extender/Repeater
6. Connect the PT-5T and the PT-5R together, using TP cable, via the RJ-45 connectors on the rear panel of both devices. 7. Connect the power adapter to the 5V DC connector on the rear panel of the PT-5T or the PT-5R and to the mains electricity. Note: Only one of the devices needs to be connected to a power adapter. -
Page 11: Technical Specifications
Technical Specifications INPUTS: PT-5T: 1 IR receiver on a PT-5R: 1 RJ-45 3.5mm mini jack OUTPUTS: PT-5T: 2 IR emitters on PT-5R: 3 IR emitters on 3.5mm mini jacks, 1 RJ-45 3.5mm mini jacks MAXIMUM OPERATING 250m (820ft) DISTANCE: CARRIER FREQUENCY: 36-40kHz POWER CONSUMPTION: 5V DC;... - Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
