AXIOMTEK FAB109-5A3 Quick Installation Manual

FAB109-5A3 Quick Installation Guide

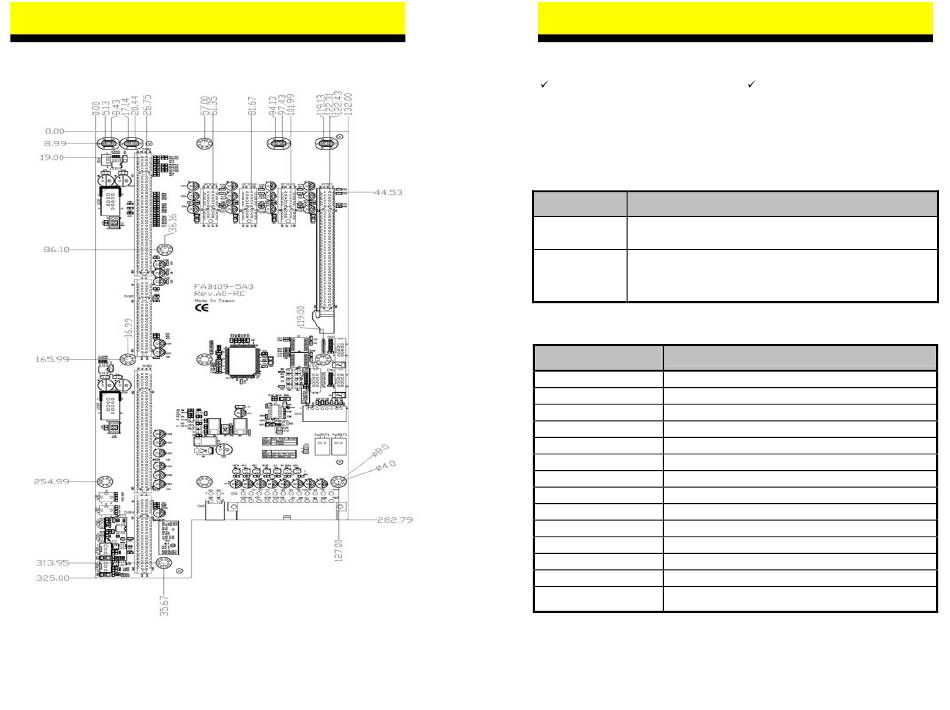

Board Dimensions
©Copyright 2010 AXIOMTEK Co., Ltd.
4
Version A1 Apr 2010
Printed in Taiwan
9419B109010E
FAB109-5A3 Quick Installation Guide
I. Checklist
FAB109-5A3 5-Slot ATX-Supported
PICMG 1.3 Bus Backplane x 1
Note: Please contact your local vendors if any damaged or missing items.
DO NOT apply power to the board if any damaged components.
II. Jumper List
Jumper
Open : ATX by CPU Card
JP1
Short : ATX Power Always On
Auto Power Button(Optional)
JP2
Open : Disable
(Reserved)
Short : Enable
III. Connectors
Connector
CN1 ATX Power Connector
CN2 12V 4Pin (+12V Auxiliary Power Connector)
CN3 8-Pin Power Connector for thermal board
CN4 SM Bus Connector
CN5,CN6,CN7(Reserved) COM Ports and DIO Connector (Optional)
CN8;CN9(Reserved) Thermal sensor Connector For FAN1& FAN2 (Optional)
USB1,2 USB 0,1,2,3
PWRBT1 ATX Power button connector
HWRST1 Hardware Reset Connector
FAN1;FAN2 FAN Connector
SHB1 – SHB4 PICMG 1.3 Full-SIZE SBC Slot
PCIE1 x16 PCIe Slot
PCIEA1-PCIEA3 X1 PCIe Slots
VR1,VR2 (Reserved) Temperature Selection For FAN Control (Optional)
©Copyright 2010 AXIOMTEK Co., Ltd.
Version A1 Apr 2010
Printed in Taiwan
9419B109010E
Quick Installation Guide x 1
Description
Description
1
