AXIOMTEK FAB110-5B1P2 Quick Installation Manual

FAB110-5B1P2 Quick Installation Guide

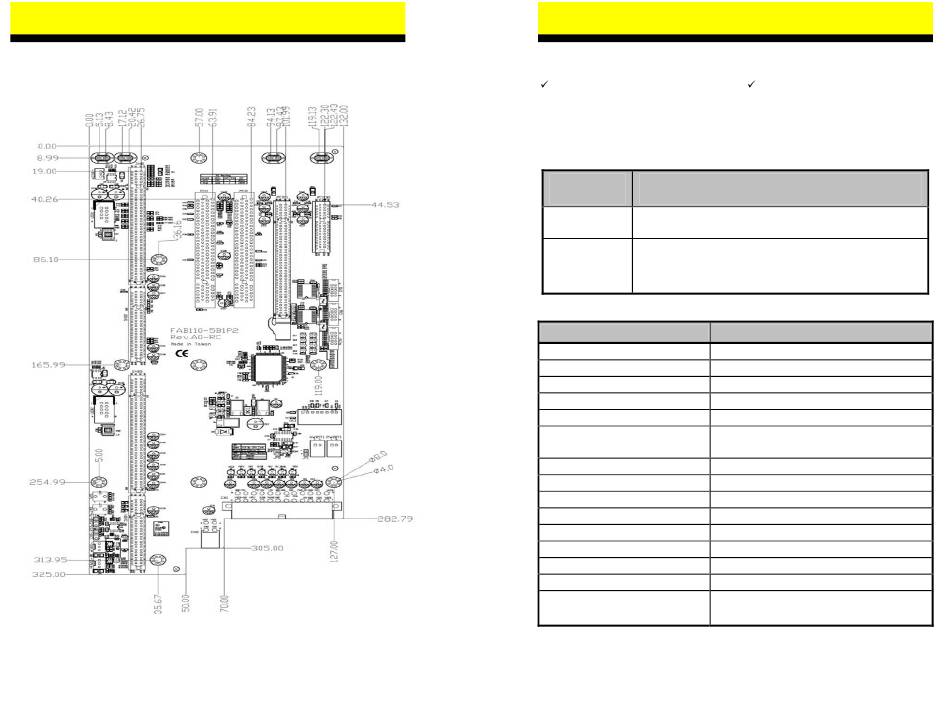

Board Dimensions
©Copyright 2010 AXIOMTEK Co., Ltd.
4
Version A1 Apr 2010
Printed in Taiwan
9419B110010E
FAB110-5B1P2 Quick Installation Guide
I. Checklist

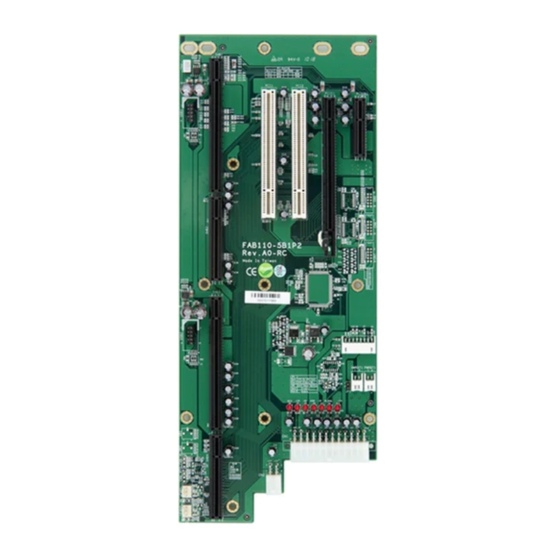

FAB110-5B1P2 5-Slot ATX-Supported
PICMG 1.3 Bus Backplane x 1
Note 1: Please contact your local vendors if any damaged or missing items.
DO NOT apply power to the board if any damaged components.
II. Jumper List
Jumper
Open : ATX by CPU Card
JP1
Short : ATX Power Always On
Auto Power Button Function (Optional)
JP2
Open : Disable
(Reserved)
Short : Enable
III. Connectors
Connector
CN1 ATX Power Connector
CN2 12V 4Pin(+12V Auxiliary Power Connector)
CN3 8-Pin Power Connector for thermal board
CN4 SM Bus Connector
CN5,CN6,CN7(Reserved) COM Ports and DIO Connector(Optional)
Thermal sensor Connector For FAN1 & FAN2
CN8,CN9(Reserved)
(Optional)
USB1,2 USB 0,1,2,3
PWRBT1 ATX Power button connector
HWRST1 Hardware Reset Connector
FAN1;FAN2 FAN Connector
SHB1 – SHB4 PICMG 1.3 Full-SIZE SBC Slot
PCI1-PCI2 PCI Slots 32-bit/33MHz
PCIE1 X16 PCIe Slot
PCIEB1 X4 PCIe Slot (Note 2)
Temperature Selection For FAN
VR1,VR2 (Reserved)
Control(Optional)
©Copyright 2010 AXIOMTEK Co., Ltd.
Version A1 Apr 2010
Printed in Taiwan
9419B110010E
Quick Installation Guide x 1
Description
Description
