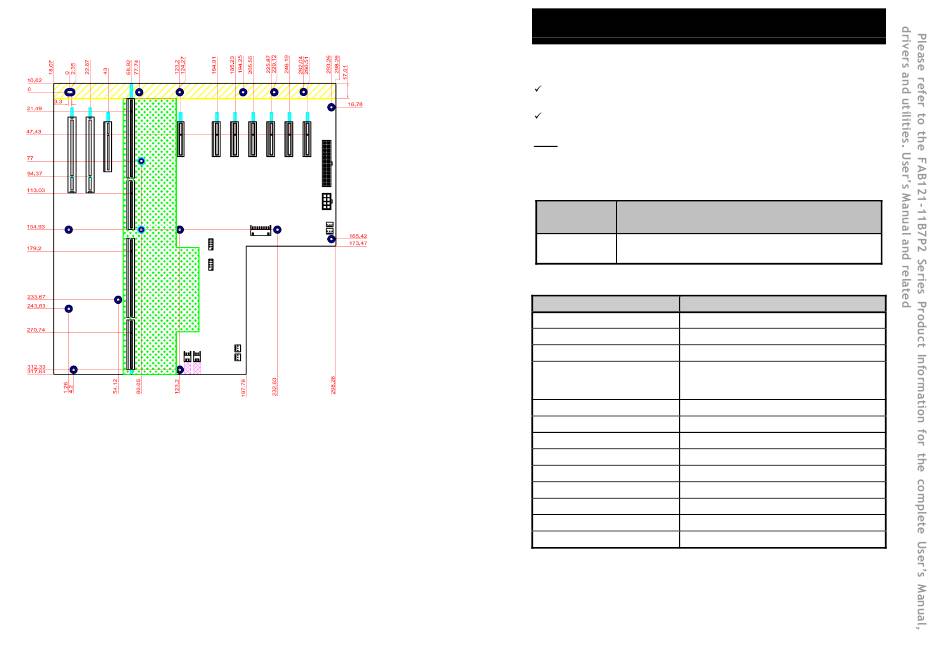

Board Dimensions
4
9419B121010E
©
Copyright 2019 Axiomtek Co., Ltd.
Version A1 March 2019
Printed in Taiwan
FAB121-11B7P2 Quick Installation Guide
Checklist

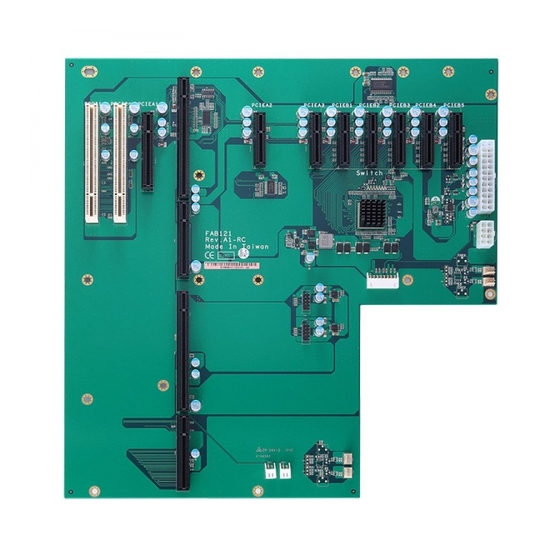

FAB121-11B7P2 11-Slot ATX-Supported
PICMG 1.3 Bus Backplane x 1
Quick Installation Guide x 1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Jumper List
Jumper
Open : ATX by CPU Card(default)
JP1
Short : ATX Power Always On
Connectors
Connector
ATX Power Connector
ATX1
12V 8Pin(+12V Auxiliary Power
CN1
8-Pin Power Connector for thermal board
CN3
Thermal Sensor Connector for
CN2,CN4,CN5,CN9(Reserved)
FAN1,FAN2 & FAN3,FAN4(Optional)
USB 0,1,2,3 Connector
USB1,USB2
ATX Power Button Connector
PWRBT1
Hardware Reset Connector
HWRST1
FAN Connector
FAN1,FAN2,FAN3,FAN4
PICMG 1.3 Full-Size SBC Slot
SHB1-SHB4
PCI Slots 32-bit/33MHz
PPCI1-PPCI2
X8 PCIe Slot
PCIEB8
X4 PCIe Slot
PCIEA1-PCIEA2
X4 PCIe Slot (Note 2)
PCIEB1-PCIEB5
9419B121010E
©
Copyright 2019 Axiomtek Co., Ltd.
Version A1 March 2019
Printed in Taiwan
Description
Description
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AXIOMTEK FAB121-11B7P2
Summary of Contents for AXIOMTEK FAB121-11B7P2
- Page 1 FAB121-11B7P2 Quick Installation Guide Board Dimensions Checklist FAB121-11B7P2 11-Slot ATX-Supported PICMG 1.3 Bus Backplane x 1 Quick Installation Guide x 1 Note: Please contact your local vendors if any damaged or missing items. DO NOT apply power to the board if there is any damaged component.
- Page 2 USB GND FAN Connector (FAN1,FAN2,FAN3,FAN4) Signal +12V N.C or Rotation Detection (Reserved) 9419B121010E 9419B121010E © © Copyright 2019 Axiomtek Co., Ltd. Copyright 2019 Axiomtek Co., Ltd. Version A1 March 2019 Version A1 March 2019 Printed in Taiwan Printed in Taiwan...
