FAB108-8A3P3 Quick Installation Guide

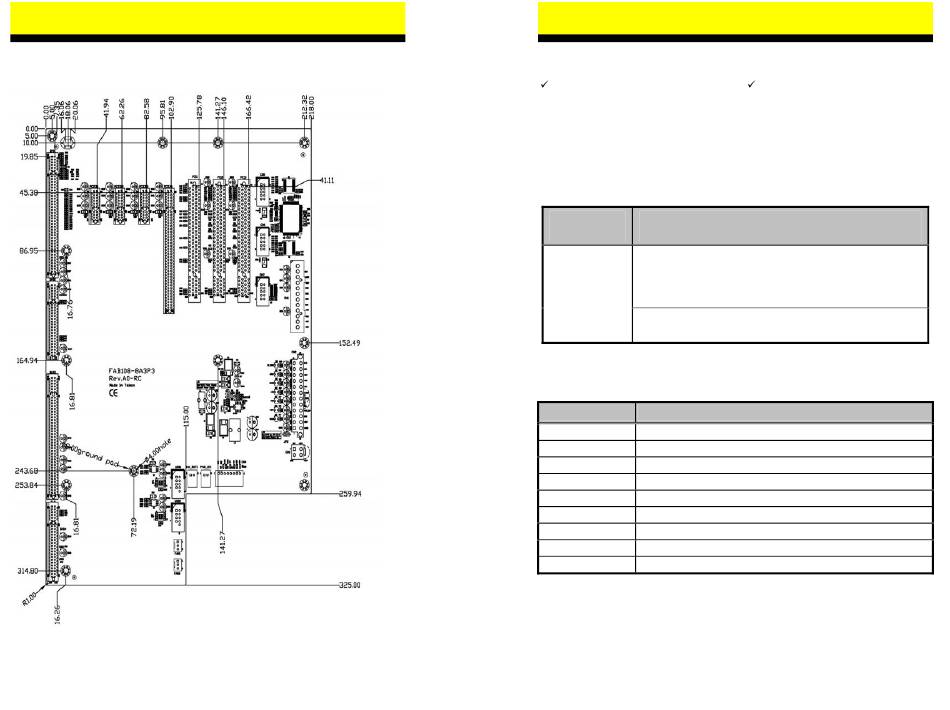

Board Dimensions
©Copyright 2009 AXIOMTEK Co., Ltd.
4
Version A1 Sep 2009
Printed in Taiwan
9419B108010E
FAB108-8A3P3 Quick Installation Guide
I.
Checklist
FAB108-8A3P3 8-Slot ATX-Supported
PICMG 1.3 Bus Backplane x 1
Note: Please contact your local vendors if any damaged or missing items.
DO NOT apply power to the board if any damaged components.
II.
Jumper List
Jumper
Open: ATX power ON/OFF either by power
button(PWRBT1 Connector) or via ACPI compliant
software
JP2
Short: ATX power ON/OFF via power supply switch
III.
Connectors
Connector
SHB1 – SHB4
PICMG 1.3 Full-SIZE SBC Slot
PCI1-PCI3
PCI Slots 32-bit/33MHz
PCIEA1
PCIe x16 Slot
PCIEB1-PCIEB3
PCIe x1 Slots
CN2
24-Pin ATX Power Supply Connector
CN4
8-Pin Power Connector for thermal board
PWR_BT1
ATX Power button connector
HW_RST1
Hardware Reset Connector
USB1-USB2
USB Connectors
©Copyright 2009 AXIOMTEK Co., Ltd.
Version A1 Sep 2009
Printed in Taiwan
9419B108010E
Quick Installation Guide x 1
Description
Description
1
