FAB109-5A3 Quick Installation Guide

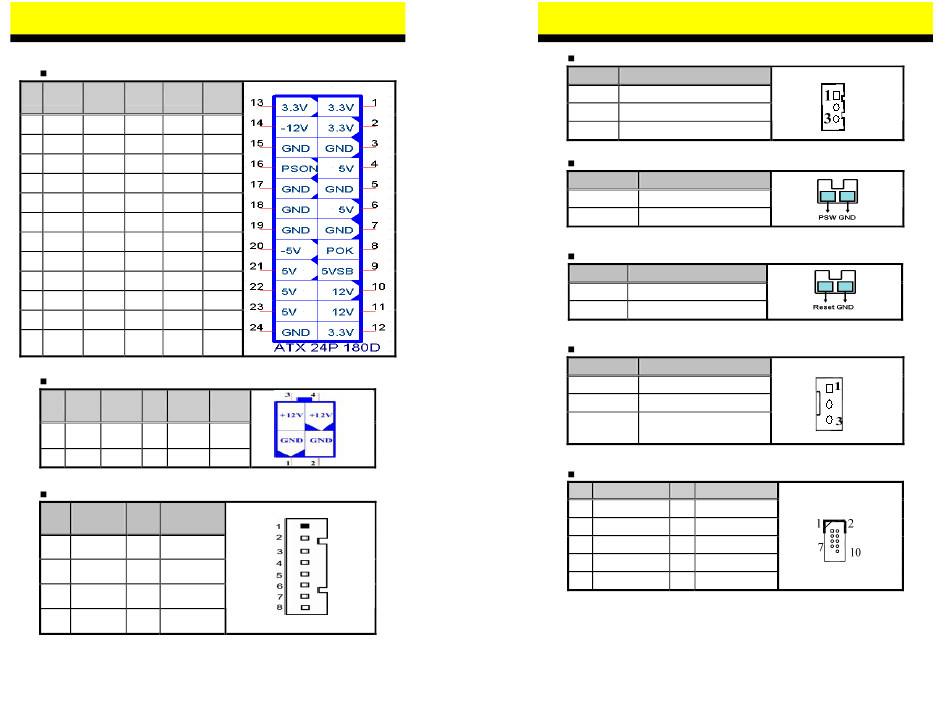

24-Pin ATX Power Connector (CN1)
Cable
Pin Signal Pin Signal
Color
1 3.3V Brown 13 3.3V
2 3.3V Brown 14 -12V
3 GND Black 15 GND
4 5V Red 16 PS_ON Green
5 GND Black 17 GND
6 5V Red 18 GND
7 GND Black 19 GND
8 PWOK Orange 20 -5V
9 5VSB Purple 21 5V
10 12V Yellow 22 5V
11 12V Yellow 23 5V
12 3.3V Brown 24 GND
4Pin +12V Auxiliary Power Connector (CN2)
Cable
Pin Signal Pin Signal
Color
1 GND Black 3 12V
2 GND Black 4 12V
Power Output Connector (CN3)
Pin Signal Pin Signal
1 GND 5 -5V
2 GND 6 5V
3 5VSB 7 -12V
4 3.3V 8 12V
©Copyright 2010 AXIOMTEK Co., Ltd.
2
Cable
Color
Brown
Blue
Black
Black
Black
Black
White
Red
Red
Red
Black
Cable
Color
Yellow
Yellow
Version A1 Apr 2010
Printed in Taiwan
9419B109010E
FAB109-5A3 Quick Installation Guide
SM Bus Connector (CN4)
Pin Signal
1 SM_CLK
2 SM_DAT
3 GND
Power ON/OFF Push Button Connector (PWRBT1)
Pin Signal
1 PWR_BT
2 GND
Hardware Reset Connector (HWRST1)
Pin Signal
1 HW_RST
2 GND
FAN Connector (FAN1, FAN2)
Pin Signal
1 GND
2 +12V
N.C or Rotation
3
Detection (Reserved)
USB Connectors (USB1, USB2)
Pin Signal Pin
1 USB Power 2 USB Power
3 USB P0- 4 USB P1-
5 USB P0+ 6 USB P1+
7 USB GND 8 USB GND
10
©Copyright 2010 AXIOMTEK Co., Ltd.
Version A1 Apr 2010
Printed in Taiwan
9419B109010E
Signal
GND
3
