AXIOMTEK FAB112-13B1P10 Quick Installation Manual

FAB112-13B1P10 Quick Installation Guide

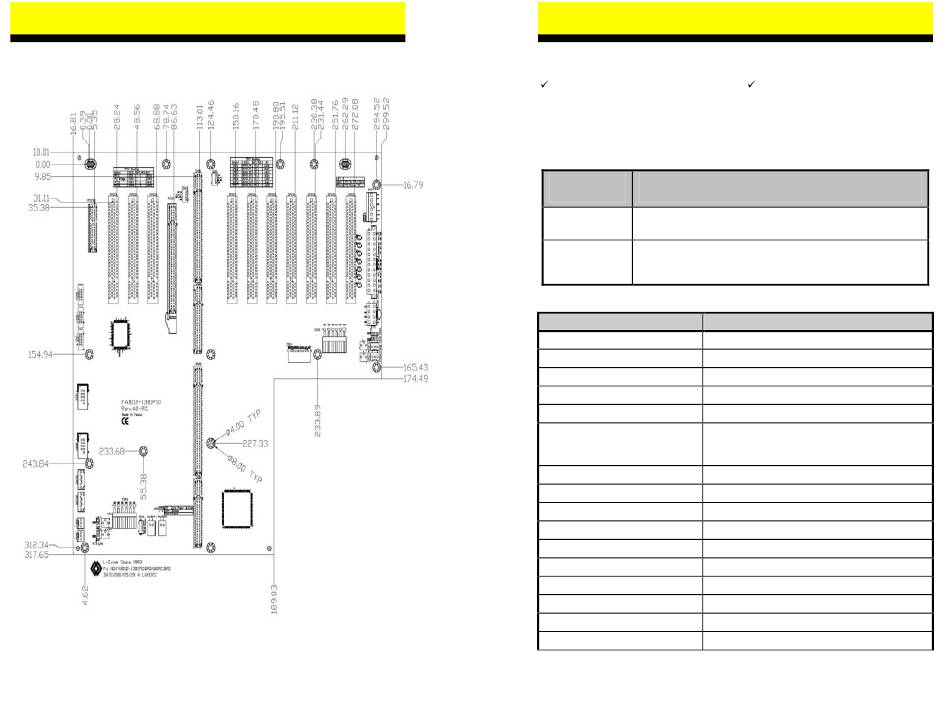

Board Dimensions
©Copyright 2010 AXIOMTEK Co., Ltd.
4
Version A1 Aug 2010
Printed in Taiwan
9419B112010E
FAB112-13B1P10 Quick Installation Guide
I. Checklist
FAB112-13B1P10 13-Slot ATX-Supported
PICMG 1.3 Bus Backplane x 1
Note1: Please contact your local vendors if any damaged or missing items.
DO NOT apply power to the board if any damaged components.
II. Jumper List
Jumper
Open : ATX by CPU Card
JP1
Short : ATX Power Always On
Auto Power Button(Optional)
JP2
Open : Disable
(Reserved)
Short : Enable
III. Connectors
Connector
CN1 ATX Power Connector
CN2 12V 8Pin(+12V Auxiliary Power Connector)
CN3 8-Pin Power Connector for thermal board
CN4 SM Bus Connector
CN5,CN6,CN7 (Reserved) COM Ports and DIO Connector (Optional)
Thermal sensor Connector for FAN1,FAN2 &
CN8,CN9,CN10,CN11(Reserved)
FAN3,FAN4(Optional)
CN12 PCIex16 SDVO Control Signal Connector
CN13 IPMB Connector
CN14 +3.3V/5V Auxiliary Power Connector
CN15 +3.3V Auxiliary Power Connector
CN16 +5V Auxiliary Power Connector
USB1,USB2 USB 0,1,2,3 Connector
PWRBT1 ATX Power Button Connector
HWRST1 Hardware Reset Connector
FAN1,FAN2,FAN3,FAN4 FAN Connector
SHB1 – SHB4 PICMG 1.3 Full-Size SBC Slot
©Copyright 2010 AXIOMTEK Co., Ltd.
Version A1 Aug 2010
Printed in Taiwan
9419B112010E
Quick Installation Guide x 1
Description
Description
1
