AXIOMTEK SDM310S User Manual

Intel smart display module (sdm-s) with intel celeron elkhart lake processor
Hide thumbs

Advertisement

Quick Links

Download this manual
SDM310S
®
Intel
Smart Display Module (SDM-S)
®
with Intel
Celeron™ Elkhart Lake
Processor
User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SDM310S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK SDM310S

Summary of Contents for AXIOMTEK SDM310S

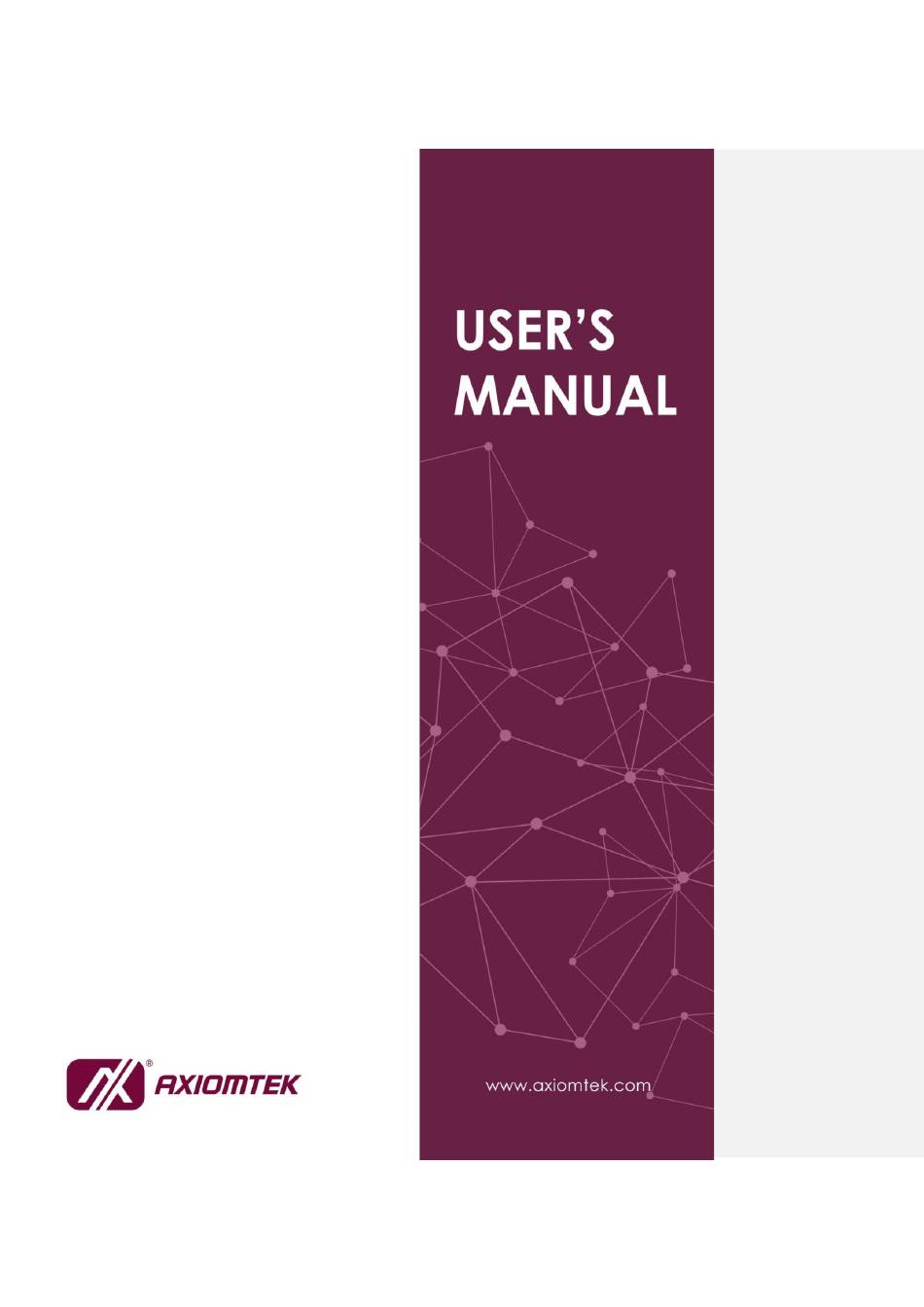

  • Page 1 SDM310S ® Intel Smart Display Module (SDM-S) ® with Intel Celeron™ Elkhart Lake Processor User’s Manual...
  • Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Esd Precautions

    ◼ When handling modules and components, wear a wrist-grounding strap, available from most electronic component stores. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. ® Windows is a trademark of Microsoft Corporation. AMI is a trademark of American Megatrend Inc.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ..................... ii ESD Precautions ................... iii Section 1 Introduction ..........1 Features ....................1 Specifications ..................2 Utilities Supported ................3 Block Diagram ..................4 Section 2 Module and Pin Assignments ....5 Module Dimensions and Fixing Holes ..........5 Module Layout ..................
  • Page 5 Main Menu ..................29 Advanced Menu ................. 30 Chipset Menu ..................39 Security Menu ..................40 Boot Menu ..................43 Save & Exit Menu ................44 Appendix A Watchdog Timer ........47 About Watchdog Timer ..............47 How to Use Watchdog Timer ............47...
  • Page 6 This page is intentionally left blank.

  • Page 7: Introduction

    Elkhart Lake processor. It delivers outstanding system performance and support excellent multiple I/Os such as one Gigabyte Ethernet port and two Type C USB 3.2 ports. SDM310S measures only 100 x 60mm and delivers 4K output with streaming content thru the SDM edge connector.

  • Page 8: Specifications

    ® SDM310S Intel Smart Display Module (SDM-S) Specifications ⚫ ◼ Intel ® Celeron ® quad core J6412 2.0~2.6GHz. ⚫ BIOS ◼ American Megatrends Inc. BIOS. ◼ 64Mbit SPI Flash, DMI, Plug and Play. ◼ PXE Ethernet Boot ROM; customized default saving features; LPC-free supported;...

  • Page 9: Utilities Supported

    ® SDM310S Intel Smart Display Module (SDM-S) Utilities Supported ⚫ Chipset driver ⚫ Graphics driver ⚫ TXE driver ⚫ Serial IO driver ⚫ Ethernet utility and driver All specifications and images are subject to change without notice. Note Introduction...

  • Page 10: Block Diagram

    ® SDM310S Intel Smart Display Module (SDM-S) Block Diagram Introduction...

  • Page 11: Module And Pin Assignments

    ® SDM310S Intel Smart Display Module (SDM-S) Section 2 Module and Pin Assignments Module Dimensions and Fixing Holes Top View Module and Pin Assignments...
  • Page 12 ® SDM310S Intel Smart Display Module (SDM-S) Bottom View Module and Pin Assignments...
  • Page 13 ® SDM310S Intel Smart Display Module (SDM-S) Side View Front View Module and Pin Assignments...

  • Page 14: Module Layout

    ® SDM310S Intel Smart Display Module (SDM-S) Module Layout Top View Module and Pin Assignments...
  • Page 15 ® SDM310S Intel Smart Display Module (SDM-S) Bottom View Module and Pin Assignments...

  • Page 16: Bracket Installation

    ® SDM310S Intel Smart Display Module (SDM-S) Bracket Installation Bracket Assembly 2.3.1 SDM310S bracket assembly. Module and Pin Assignments...

  • Page 17: Jumper Settings

    The following illustration shows how to set up a jumper. Properly configure jumper settings on the SDM310S to meet your application purpose. Below you can find a summary table of jumpers and their default onboard settings.

  • Page 18: Connectors

    ® SDM310S Intel Smart Display Module (SDM-S) Connectors Signals go to the other parts of the system through connectors. Loose or improper connection might cause problems. Please make sure all connectors are properly and firmly connected. Here is a table summarizing the connectors on the hardware.

  • Page 19: Type-C Connectors (Usbc1, Usbc2)

    ® SDM310S Intel Smart Display Module (SDM-S) 2.5.2 Type-C Connectors (USBC1, USBC2) The Universal Serial Bus (compliant with USB 3.2 Gen2 (10Gb/s)) connectors are on the rear I/O side. They are both commonly used for installing USB peripherals such as keyboard, mouse, scanner, etc.

  • Page 20: Power And Reset Button (Sw1)

    ® SDM310S Intel Smart Display Module (SDM-S) 2.5.3 Power and Reset Button (SW1) The upper power button allows users to control the power on/off of the SDM300S. The lower reset button allows users to reset the SDM300S during abnormal system situations.

  • Page 21: Sdm Edge Connector (J1)

    ® SDM310S Intel Smart Display Module (SDM-S) 2.5.6 SDM Edge Connector (J1) The following table shows the pin assignments for the 98-pin SDM PCIe x8 edge connector. Side B (Top) Side A (Bottom) +12V +12V +12V +12V +3.3VSB +12V PWRBTN#...
  • Page 22 ® SDM310S Intel Smart Display Module (SDM-S) This page is intentionally left blank. Module and Pin Assignments...

  • Page 23: Hardware Description

    Make sure all correct settings are arranged for the installed microprocessor to prevent the CPU from damage. BIOS The SDM310S uses AMI Plug and Play BIOS with a single 256Mbit SPI Flash. System Memory 4GB LPDDR4 3200MHz onboard memory supporting maximum capacity up to 8GB.

  • Page 24: I/O Port Address Map

    ® SDM310S Intel Smart Display Module (SDM-S) I/O Port Address Map The I/O port address mapping list is shown as follows: Hardware Description...

  • Page 25: Interrupt Controller (Irq) Map

    ® SDM310S Intel Smart Display Module (SDM-S) Interrupt Controller (IRQ) Map The interrupt controller (IRQ) mapping list is shown as follows: Hardware Description...
  • Page 26 ® SDM310S Intel Smart Display Module (SDM-S) Hardware Description...
  • Page 27 ® SDM310S Intel Smart Display Module (SDM-S) Hardware Description...
  • Page 28 ® SDM310S Intel Smart Display Module (SDM-S) Hardware Description...
  • Page 29 ® SDM310S Intel Smart Display Module (SDM-S) Hardware Description...
  • Page 30 ® SDM310S Intel Smart Display Module (SDM-S) Hardware Description...

  • Page 31: Memory Map

    ® SDM310S Intel Smart Display Module (SDM-S) Memory Map The memory mapping list is shown as follows: Hardware Description...
  • Page 32 ® SDM310S Intel Smart Display Module (SDM-S) This page is intentionally left blank. Hardware Description...

  • Page 33: Ami Bios Setup Utility

    ® SDM310S Intel Smart Display Module (SDM-S) Section 4 AMI BIOS Setup Utility The AMI UEFI BIOS provides users with a built-in setup program to modify basic system configuration. All configured parameters are stored in a flash chip to save the setup information whenever the power is turned off.
  • Page 34 ® SDM310S Intel Smart Display Module (SDM-S) Hot Keys Description → Left/Right The Left and Right <Arrow> keys allow you to select a setup screen. The Up and Down <Arrow> keys allow you to select a setup screen or sub- ...

  • Page 35: Main Menu

    ® SDM310S Intel Smart Display Module (SDM-S) Main Menu The Main BIOS setup screen is the first screen you see when entering the setup utility. You can always return to the Main BIOS setup screen by selecting the Main tab. System Time/Date can be set up as described below.

  • Page 36: Advanced Menu

    ® SDM310S Intel Smart Display Module (SDM-S) Advanced Menu The Advanced menu also allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ►...
  • Page 37 ® SDM310S Intel Smart Display Module (SDM-S) NCT5525D Super IO Configuration ⚫ You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 38 ® SDM310S Intel Smart Display Module (SDM-S) ⚫ Serial Port 1 Configuration Serial Port Enable or disable serial port 1. The optimal setting for base I/O address is 3F8h and for interrupt request line is IRQ4. The default setting is Enabled.
  • Page 39 ® SDM310S Intel Smart Display Module (SDM-S) ⚫ Hardware Monitor This menu allows the user to monitor hardware health status as well as enable or disable the Smart Fan function. 已註解 [jeremy3]: Please check the accuracy of this description. This screen displays the temperature of system and CPU, fan speed, system voltages (+5V and VBAT).
  • Page 40 ® SDM310S Intel Smart Display Module (SDM-S) ⚫ Trusted Computing This menu contains settings related to the Trusted Platform Module (TPM) and other security features. Security Device Support Enable or disable BIOS support for security device, typically a TPM. When enabled (default setting), the BIOS initializes and makes the TPM available for use by the operating system and other system components.
  • Page 41 ® SDM310S Intel Smart Display Module (SDM-S) Storage Hierarchy Enable or disable storage hierarchy, used to manage keys and operations related to data storage. Endorsement Hierarchy Enable or disable endorsement hierarchy, used to manage keys and operations related to the TPM's endorsement keys.
  • Page 42 ® SDM310S Intel Smart Display Module (SDM-S) ⚫ CPU Configuration This screen shows the CPU Configuration, and you can change the value of the selected option. Intel (VMX) Virtualization Technology Enable or disable Intel Virtualization Technology. When enabled, a VMM (Virtual Machine Mode) can utilize the additional hardware capabilities.
  • Page 43 ® SDM310S Intel Smart Display Module (SDM-S) ⚫ Storage Configuration This screen specifies storage information. For items marked with “▶”, please press <Enter> for more options. Specifies eMMC storage information as follows: AMI BIOS Setup Utility...
  • Page 44 ® SDM310S Intel Smart Display Module (SDM-S) ⚫ USB Configuration This screen specifies USB settings. USB Devices Display all detected USB devices. AMI BIOS Setup Utility...

  • Page 45: Chipset Menu

    ® SDM310S Intel Smart Display Module (SDM-S) Chipset Menu The Chipset menu shows memory configuration parameters dan graphics configuration version. AMI BIOS Setup Utility...

  • Page 46: Security Menu

    ® SDM310S Intel Smart Display Module (SDM-S) Security Menu The Security menu allows users to enhance system security by creating an administrator password to limit system access. Administrator Password This item indicates whether an administrator password has been set (installed or uninstalled).
  • Page 47 ® SDM310S Intel Smart Display Module (SDM-S) ⚫ Secure Boot Secure Boot Secure Boot feature is Active if Secure Boot is Enabled, Platform Key (PK) is enrolled and the System is in User mode. The mode change requires platform reset. Secure Boot ensures that the system only boots from trusted software, preventing malicious software from loading and compromising the device.
  • Page 48 ® SDM310S Intel Smart Display Module (SDM-S) Factory Key Provision The Factory Key Provision ensures that the device has secure access to encrypted resources, such as data storage or communication. The keys are often unique to each device and can be used to secure firmware updates, secure boot processes, and to encrypt data at rest.

  • Page 49: Boot Menu

    ® SDM310S Intel Smart Display Module (SDM-S) Boot Menu The Boot menu allows users to change boot options of the system. ⚫ Setup Prompt Timeout Setup Prompt Timeout is to delay the BIOS post before entering the operating system for a period of seconds according to user’s setting.

  • Page 50: Save & Exit Menu

    ® SDM310S Intel Smart Display Module (SDM-S) Save & Exit Menu The Save & Exit menu allows users to load system configurations with optimal or fail-safe default values. ⚫ Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and continue to boot to operating system.
  • Page 51 ® SDM310S Intel Smart Display Module (SDM-S) ⚫ Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration. Select Discard Changes from the Save & Exit menu and press <Enter>. Select Yes to discard changes.
  • Page 52 ® SDM310S Intel Smart Display Module (SDM-S) This page is intentionally left blank. AMI BIOS Setup Utility...

  • Page 53: Appendix A Watchdog Timer

    ® SDM310S Intel Smart Display Module (SDM-S) Appendix A Watchdog Timer A.1 About Watchdog Timer Software stability is a major issue in most application. Some embedded systems are not watched by human for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs.
  • Page 54 ® SDM310S Intel Smart Display Module (SDM-S) //WDT counting re-set timer outp( NCT5104IO, 0xF1 ); outp( NCT5104IO+1, WDT_Count ); // IF to disable WDT: //outp( NCT5104IO, 0x30 ); //outp( NCT5104IO+1, 0x00 ); return 0; Watchdog Timer...
