Non-sterile

Advertisement

Quick Links

DO NOT USE FOR ORAL SURGERY
Before operating the handpiece, carefully read and follow all of these instructions. Save
these instructions for future reference and observe all warnings and cautions.
INDICATIONS FOR USE
Used intraorally by trained dental professionals for drilling and preparation of dental cavities for
restoration, such as fillings, disking, cavity and crown preps, polishing, post and pin drilling and
pin setting.
Caution: U.S. Federal law restricts this device to sale by or on the order of a
licensed physician.
Under normal operating conditions, air is exhausted from the back of the
WARNING
head of this handpiece. If air is directed into an open soft tissue wound or
beneath the mucosa or dermis, injury to the patient could result from air
emphysema of air embolism.
This angle has no internal air or water cooling capabilities. External water
WARNING
for cooling maybe required.
CONTENTS

FEATURES

FEATURES
Rated for use with Star Motors and Attachments

INSTALLATION AND OPERATION

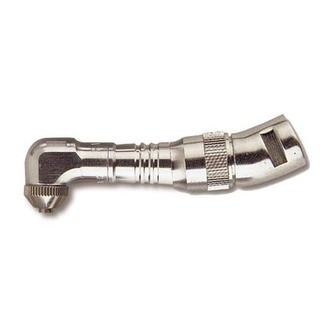

Titan Five Star Prophy Angle:
Star Titan 3 Part #265803

SAFETY

Controlled Speed Reduces Prophy Paste 'Spin-off'

LUBRICATING

Field Replaceable Cartridge

CLEANING AND STERILIZATION

Quick, Easy Cleaning
Compatible with Titan 3 and Titan T Systems
Steam Sterilization: 135° C
135°C
Sterilizable up to 135°C
Motor
Accessories
Ratio
5K
MTA
1:1
20K
Torque Multiplier & MTA
4:1

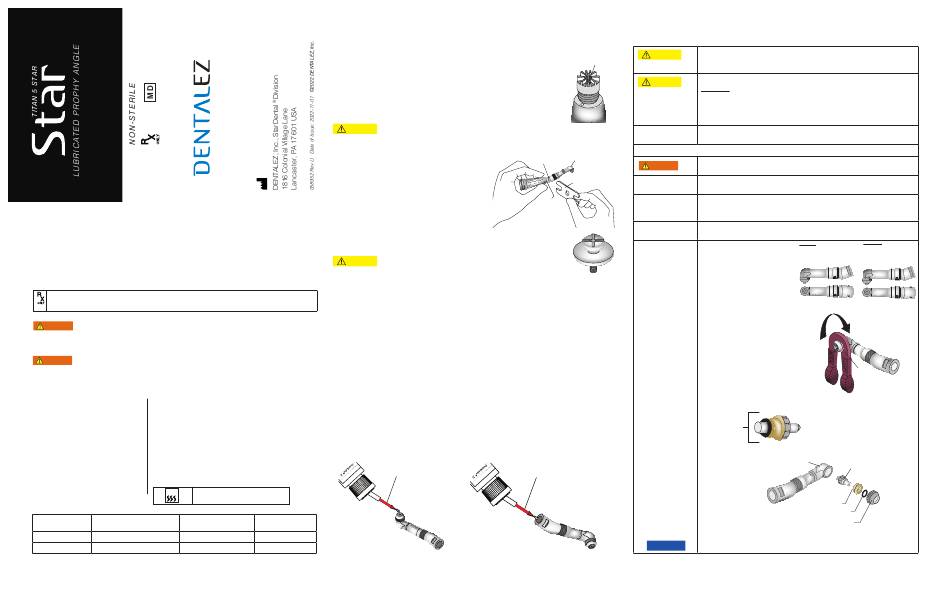

INSTALLATION AND OPERATION
PROPHY ANGLE INSTALLATION FOR TITAN 3 OR TITAN T SYSTEMS
1. For the Titan 3 or Titan T systems thread angle onto motor-to-
angle adapter (FIG. 1), Star Titan 3 Part #264073 or Titan T Part #
263970, by hand. Seat completely.
When angle does not seat on adapter, gears are not meshed correctly. Remove
CAUTION
angle; spin motor-to-angle adapter drive gear and repeat step one.
2. Fit angle disconnect wrench (FIG. 2), Star
Part #203048, furnished with every angle, to
mating indentations on angle neck; tighten
securely.
PROPHY CUP INSTALLATION
The prophy angle uses either a screw-on or a
snap-on type polishing cup. When using a
snap-on type cup, use the screw-to-button
adapter, Star Part #258950.
Thread the screw-to-button adapter (FIG. 3), or
polishing cup, with a clockwise rotation until snug
into the hollow cartridge shaft of the prophy angle.
Operate the Titan motor in the forward direction only. If the
CAUTION
Titan motor is operated in reverse direction, the prophy cup
will separate from the motor.
PROPHY CUP REMOVAL
Unthread the adapter, or polishing cup, counterclockwise. If the
screw-to-button adapter is difficult to disengage, remove the prophy cup, and use a
small screwdriver to loosen the screw-to-button adapter.
SAFETY INSTRUCTIONS
PLEASE OBSERVE SAFETY INSTRUCTIONS
Before use, verify concentric rotation by operating the handpiece outside the oral cavity in a
safe place.
LUBRICATING
1.
Lubricate with DentaLube II, Star Part #262539 once a day or before each
sterilization procedure.
2.
Remove prophy cup.
3.
Place a drop of DentaLube II down the center of the hollow cartridge shaft (allow a few
seconds for the lubricant to drain down the shaft). (See FIG. 4)
4.
Place a drop of DentaLube II at the base of the angle. Allow a few seconds for the
lubricant to drain and reach the bronze bushing. (See FIG. 5)
RED TIP APPLICATOR
Max Allowable
RPM
FIG. 4
5,000
5,000
CLEANING AND STERILIZATION
MOTOR-TO-ANGLE
CAUTION
ADAPTER DRIVE GEAR
CAUTION
FIG. 1
LIMITS ON
REPROCESSING
INSTRUCTIONS
TITAN
MATING INDENTATIONS
PROPHY ANGLE
WARNING
DISCONNECT
CONTAINMENT AND
WRENCH
TRANSPORTATION:
PREPARATION FOR
MOTOR-
CLEANING:
TO-ANGLE
ADAPTER
FIG. 2
CLEANING
AUTOMATED:
CLEANING
MANUAL:
SCREW-TO-
FIG. 3
BUTTON
ADAPTER
RED TIP APPLICATOR
FIG. 5
NOTICE
It is the responsibility of the user to use only FDA compliant sterilizing
equipment and accessories that are capable of meeting the manufacturers
recommendations below.
Do not exceed 135°C
Do not use:
• dry heat sterilizer
• cold sterilizers • ultrasonic cleaners
•immersion techniques • sterilizer bags containing disinfectants
• detergents
• surface wipes
•surface sprays
• chemical disinfectors • hand soaps
• surgical milk
Repeated processing has minimal effect on these Adapters. End of life is
normally determined by wear and damage due to use.
The angle must be cleaned and sterilized before first use and after each
patient use.
It is recommended that angles are reprocessed as soon as is reasonably
practical following use.
Wear puncture resistant gloves to prepare the prophy angle for sterilization.
Remove prophy cup or screw-to-button adapter from prophy angle. Remove
angel from motor-to-angle adaptor.
Washer-disinfectors are not recommended.
New Style:
Old Style:
1. Clean and inspect once a day.
-c 34 o and L
-No Markings on End Cap
Marked On End Cap
- Unthread End Cap in
2. Clean all external surfaces
- Unthread End Cap in
CounterClockwise Direction
Clockwise Direction
(FIG.6) with isopropyl alcohol
and a lint-free
cloth or brush.
3. Use the plastic wrench to
FIG. 6
unthread the end cap by turning clockwise.
(See FIG.7):
UNTHREAD END CAP IN
CLOCKWISE DIRECTION
4. Remove the cartridge and
inspect as follows:
5. If prophy paste is not found on the
cartridge, internal cleaning is not
necessary. Simply wipe off with
lint-free cloth.
PLASTIC
WRENCH
6. If prophy paste is found on the cartridge,
clean off the paste manually. The gear
assembly and end cap may be ultrasonically cleaned (FIG.8).
CARTRIDGE
FIG. 8
HOUSING
GEAR ASSEMBLY
BRONZE BUSHING
O-RING
END CAP
Do not ultrasonically clean any other components.
FIG. 7
