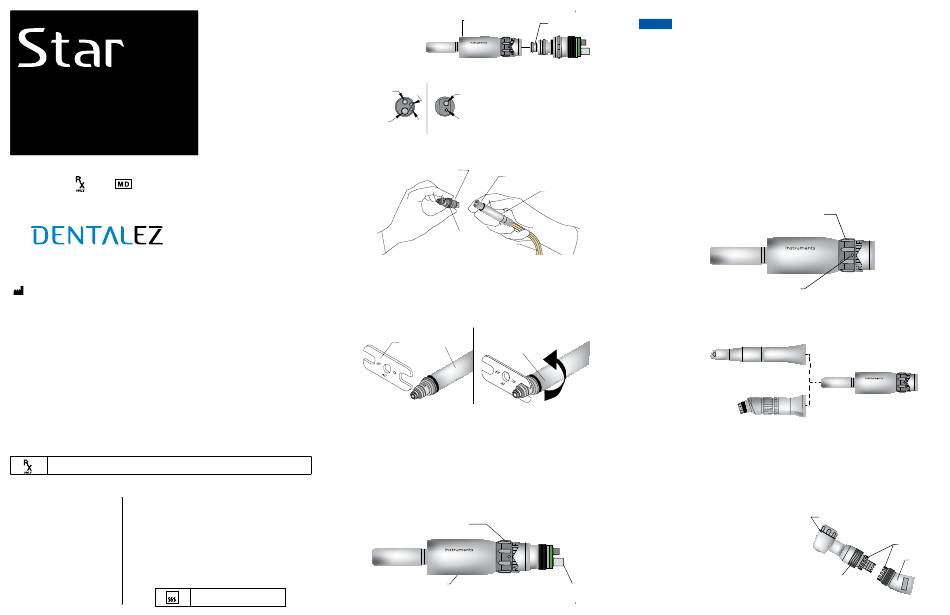

DentalEZ Star Quick Start Manual

TITAN E LOW-SPEED MOTOR
NO N- STE RILE
DENTALEZ, Inc., StarDental ® Division
1816 Colonial Village Lane
Lancaster, PA 17601 USA
065810 Rev F Date of Issue 2023-01-30 ©2023 DENTALEZ, Inc.
Before operating the handpiece, carefully read and follow all of these instructions. Save
these instructions for future reference and observe all warnings and cautions.
INDICATIONS FOR USE
is
The Titan E 20K low-speed dental motor used intraorally by trained dental professionals
®
for drilling and preparation of dental cavities for restoration, such as fillings. The intended use
extends to disking, cavity and crown preps, polishing, post and pin drilling and pin setting.
Caution: U.S. Federal law restricts this device to sale by or on the order of a licensed
physician.
CONTENTS SPECIFICATIONS
20,000 RPM MOTOR: StarDental® Part #266131 (Fixed
SPECIFICATIONS
INSTALLATION
No Lubrication Required
OPERATION
Recommended Air Pressure: 40-45 psi (swivel motor)
CLEANING & STERILIZATION
Air Flow: 2.1 SCFM @ 40-45 psi at Maximum Power
TROUBLESHOOTING
Rotation: Forward and Reverse
REPLACEMENT PART
4-Line Connection (Fixed Back End)
NUMBERS
135°C
WARRANTY
INSTALLATION
4-LINE TUBING
DRIVE AIR
EXHAUST AIR
1. Select the motor appropriate for tubing based on power requirements. Examine connection
of the motor and swivel tubing configuration as these must match configuration of delivery
system tubing. (See FIG.1).
FIG. 2
2. Disconnect swivel from handpiece if necessary (FIG.2). Grasp the swivel in front of the bearing
assembly between the thumb and index finger as shown.
3. Slide tubing coupler until the end of the ISO connector is exposed; hold in hand as shown with
fingers securing the tubing.
4. Align and insert swivel tubes into the ISO connector holes.
5. While applying slight pressure to hold fittings in the connector holes, slide coupler forward and
engage threads. Continue threading coupler clockwise until hand tight against the swivel.
FIG. 3
6. Using the wrench as shown (FIG.3), tighten the swivel to the tubing coupler. Be sure to turn
tubing coupler, not swivel. DO NOT OVER TIGHTEN.
Note: This joint loosens over time, resulting in loss of power. Check for tightness periodically.
7. Connect handpiece to swivel.
8. Using an air pressure gauge for 4-line, between swivel and tubing, obtain a reading. Adjust the air
pressure at delivery head until gauge reads 40-45 psi while operating handpiece in full forward
position and with foot control completely depressed.
Note: If delivery unit has oil/mist lubrication, detach and drain; handpiece needs no lubrication.
INSTALLATION - FIXED BACK END MOTOR (FIG.4)
Back End Part #266132)
Point (swivel motor)
20K FIXED BACK END MOTOR
(StarDental Part #266132)
Sterilizable up to 135°C
20K MOTOR
SWIVEL
(StarDental Part #266131)
StarDental ®
Titan E
®
20,000 rpm - Lube Free
Made in the U.S.A.
JXXXXX
2/3-LINE TUBING
WATER
DRIVE AIR
FIG. 1
WATER
AIR
SWIVEL
ISO CONNECTOR
TUBING
COUPLER
BEARING ASSEMBLY
TUBING
TUBING TURN COUPLER WHILE HOLDING
COUPLER SWIVEL IN PLACE
WRENCH
DIRECTION & SPEED
CONTROL RING
StarDental
®
FIG. 4
Titan E
®
20,000 rpm - Lube Free
Made in the U.S.A.
JXXXXX
REAR END CONNECTOR
Note: If delivery unit has oil/mist lubrication, detach and drain; motor is LUBE FREE.
NOTICE
To prevent damage to bearings, before installing always check drive air pressure by using
air pressure gauge (4/6-Line) between motor and tubing and obtain a reading. Adjust air pressure
at delivery head until gauge reads 40-45 psi while operating motor and with foot control completely
depressed.
1. Examine tubing. Verify tubing uses 4-Line connection.
2. To connect motor to tubing, align drive air and exhaust tubes with mating ISO connector holes
in coupler.
3. While applying slight pressure to hold tubing in connector holes, slide tubing coupler forward
and engage threads. Continue threading tubing coupler clockwise until hand tight against the
motor. DO NOT OVER TIGHTEN.
Note: This joint loosens over time, resulting in air leakage and loss of power. Check for
tightness periodically.
OPERATION
The 120° rotation speed adjustment ring (FIG. 5) sets direction and speed. To run motor forward at
full speed, rotate ring towards the letter 'F' while operating the foot control. Rotate to the letter 'R' to
yield full speed in reverse. Vary speed by rotating ring in either direction towards center. Note the
small depression for the current setting. After setting, the motor runs at current speed and direction
until reset. Pausing the motor is not needed to alter direction or speed using the ring.
120° ROTATION SPEED ADJUSTMENT RING
FIG. 5
StarDental
®
Titan E ®
20,000 rpm - Lube Free
Made in the U.S.A.
JXXXXX
SMALL DEPRESSION
ATTACHMENTS
The Titan E 20K Motor is designed to work with all standard E Type attachments (FIG. 6).
STRAIGHT NOSE CONE
FIG. 6
MOTOR-TO-ANGLE
CONTRA-ANGLE ATTACHMENT
Straight Nose Cone:
Attach to motor. Install bur according to manufacturer's instructions.
ANGLE INSTALLATION
StarDental Titan angles can be attached to E-Type Motor-to-Angle
Contra-Angle Attachments.
To install a Titan Angle: (FIG.7)
1. Unthread knurled ring.
2. Pull knurled ring enough to show splines,
remove knuckle from angle*.
*Note: Save the knuckle in a safe place. You will
need the knuckle to use angle with Titan
KNURLED RING
attachments.
20K TITAN-E MOTOR
StarDental
®
Titan E ®
20,000 rpm - Lube Free
Made in the U.S.A.
JXXXXX
FIG. 7
TITAN 3 LUBEFREE BALL BEAR-
ING AUTO LATCH ANGLE HEAD
SPLINES
KNUCKLE
