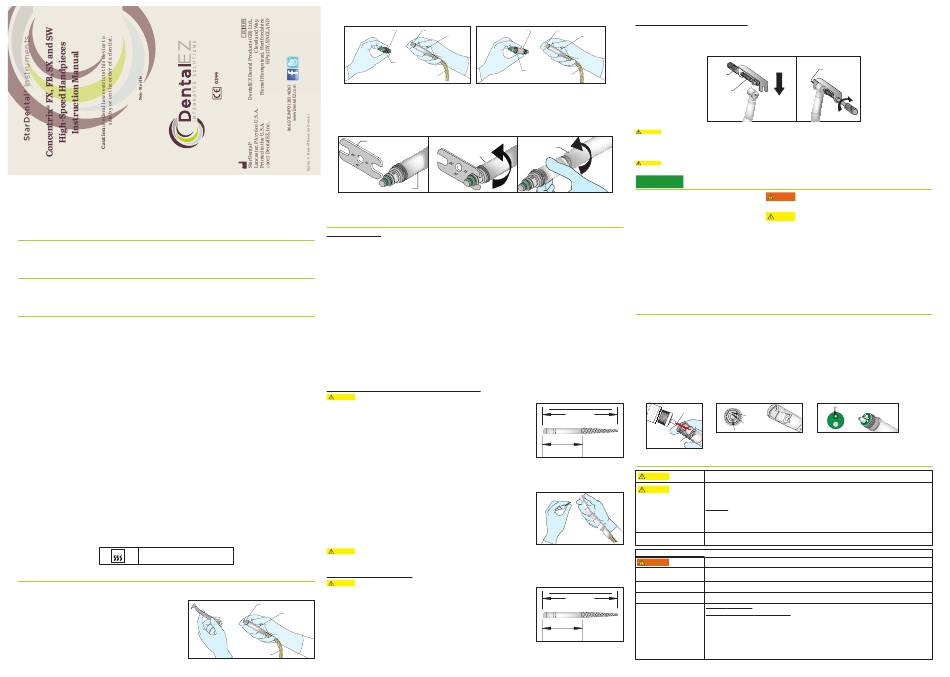

DentalEZ StarDental Concentrix FX Instruction Manual

DO NOT USE FOR ORAL SURGERY
BEFORE OPERATING THE HANDPIECE, CAREFULLY READ AND FOLLOW ALL OF THESE INSTRUCTIONS. SAVE THESE
INSTRUCTIONS FOR FUTURE REFERENCE AND OBSERVE ALL WARNINGS AND CAUTIONS.
Indications for Use
T
he Concentrix FX, FB, SX High-Speed Handpieces are used by trained dental professionals for a variety of
procedures including but not limited to caries and amalgam removal, restorative work and crown preparations.
Contents
• Specifi cations • Safety Rules • Sterilization
• Handpiece Installation • Cleaning & Lubricating • Troubleshooting
• Handpiece Operation
Specifi cations
Concentrix® FX and FB are conventional non-swivel High-Speed handpieces. Concentrix® SX and SW High-Speed Handpieces are
designed to fi t a StarDental ® 360° quick disconnect swivel. The Concentrix® SX connects to both StarDental and standard 4-Line ISO fi ber
optic (F.O.) tubing; and to standard 4/6-Line ISO fi ber optic (F.O.) tubing. The Concentrix® SW connects to both StarDental and standard
4-Line ISO fi ber optic (F.O.) tubing.
Concentrix® FX
Type: High speed with a replaceable autochuck turbine
Operating Air Pressure: 30 to 32 psi
Air Consumption: 1.9 SCFM @ 30 psi
No Load Speed: 400,000 rpm
Connection: 4-line fi xed ISO confi guration
Power: 10 watts
Weight: 43g
Concentrix® FB
Type: High speed with a replaceable manual chuck turbine
Operating Air Pressure: 30 to 32 psi
Air Consumption: 1.9 SCFM @ 30 psi
No Load Speed: 400,000 rpm
Connection: 4-line fi xed ISO confi guration
Power: 10 watts
Weight: 43g
Concentrix® SX
Type: High speed fi ber optic with a swivel and replaceable autochuck turbine (Swivel sold sep a rate ly.)
Operating Air Pressure: 30-32 psi
Air Consumption: 1.9 SCFM @ 30 psi
No Load Speed: 400,000 rpm
Connection: 360° quick-disconnect swivel with 4-Line and 6-Pin ISO confi guration and fi ber optics
Power: 12 watts
Weight: 49g
Concentrix® SW
Type: High speed with a swivel and replaceable autochuck turbine (Swivel sold sep a rate ly.)
Operating Air Pressure: 30 to 32 psi
Air Consumption: 1.9 SCFM @ 30 psi
No Load Speed: 400,000 rpm
Connection: 360° quick-disconnect non fi ber optic swivel with 2/3 line or 4-Line ISO confi guration
Power: 12 watts
Weight: 47g
135°C
Sterilizable up to 135°C
Handpiece Installation
Note: Filter air and water supplies, recommended fi ltration: 25 microns. Soften and deionize water. Be sure fi lters operate effi ciently.
Concentrix® FX and Concentrix FB
1. Slide tubing coupler until the end of the ISO connector is exposed; hold in hand as
shown with smaller fi ngers securing the tubing.
2. Align handpiece tubes into the ISO connector holes.
3. While applying slight pressure to hold handpiece tubes in the connector holes, slide
coupler forward and engage threads. Continue threading coupler clockwise until
hand tight against the handpiece.
Concentrix® SX and Concentrix SW
4-Line (F.O.) Swivel
Bearing
Assembly
1. Grasp the swivel in front of the bearing assembly between the thumb and index fi nger as shown.
2. Slide tubing coupler until the end of the tubing connector is exposed; hold in hand as shown with fi ngers securing the tubing.
3. Align and insert swivel tubes into the tubing connector holes.
4. While applying slight pressure to hold fi ttings in the connector holes, slide coupler forward and engage threads. Continue threading coupler clockwise
until hand tight against the swivel.
5. Using the wrench as shown, tighten the swivel to the tubing coupler until snug. Be sure to turn the tubing coupler, not the swivel. DO NOT OVER TIGHTEN.
Wrench
Tubing Coupler
ISO B (4-Line) Type Swivels
6. Connect handpiece to swivel until it clicks.
Note: This joint loosens over time, resulting in a loss of power. Check for tightness periodically.
Handpiece Operation
Air and Water Adjustment
1. Air Pressure –
Note: To prevent premature damage to the turbine, do not exceed 34 psi when using a HiFlo swivel.
Using air pressure gauge StarDental Part #262591, for 4-Line tubing and handpieces, if a gauge is available, set pressure to:
30-32 psi – for the Concentrix® FX and FB
30-32 psi – for the Concentrix® SX and SW
If a gauge is not available, set pressure at delivery head allowing 1 psi pressure loss for every foot of tubing.
(See Specifi cations for recommended operational pressure.)
• Turbine Replacement
For example, if you are using the Concentrix® FX that you want to operate at 32 psi and you are using either 5 feet or 12 feet of tubing, then the pressure
• Replacement Part Numbers should be set at the delivery head to compensate for the air pressure losses.
• Warranty
5 feet tubing
or 12 feet tubing
2. Water Pressure – Adjust water volume at the delivery head to obtain a satisfactory spray mist.
3. StarDental 6-Pin Fiber Optic System(s) set up: refer to the instruction manual that was included with the system and/or tubing.
4. Non-StarDental 6-pin Fiber Optic System(s):
If the handpiece is connected to a non-StarDental 6-pin fi ber optic (F.O.) system, consult your operator's manual of F.O. system for correct voltage.
Non-StarDental F.O. systems must have a rated amperage output between 1.5 Amps DC and .73 Amps DC at 3.1 Vdc. Use StarDental Part # 262962
bulb for non-StarDental F.O. systems that meet these requirements. Adjust the voltage per instructions with the 3.1 Vdc bulb.
If the non-StarDental 6-pin F.O. system has a rated amperage output of at least 1.5 Amps dc at 3.3 Vdc, then the StarDental Part #262522 bulb may be
used. Adjust the voltage per instructions with the 3.3 Vdc bulb.
Autochuck Turbine - Concentrix® FX, Concentrix SX and Concentrix SW:
CAUTION Use burs with an overall length of less than 24mm and a shank length of at least 7.3mm.
Use standard length concentric diamond and carbide burs with .0628" (1.6mm) nominal diameter friction
grip shanks designed for high speed handpieces. Every StarDental Diamond Bur meets specifi cations below
for recommended lengths. Contact your dealer for a complete list of StarDental Diamond Burs. StarDental
autochuck turbines have the following bur requirements:
Use only burs with hardened, tempered steel shanks or carbide shanks. Every StarDental Bur maintains
required hardness. Before use, verify concentric rotation by operating handpiece outside the oral cavity
in a safe place.
Note: Do not use burs that produce excessive noise or do not run concentrically.
Do not use burs that are modifi ed, eccentrically designed, or have bent or 'soft' (non-heat treated)
shanks.
Autochuck Bur Changing System
1. Insert bur into autochuck until resistance is felt.
2. Depress autochuck end cap button and continue to feed-in bur until it clicks and stops.
3. Release end cap button. Now, apply light inward force to the dental bur. This will help set the chucking
mechanism for initial start up. (Always tug on bur after it has been installed to confi rm that it is secured).
1. To remove, grasp handpiece fi rmly so your thumb touches the end cap and push until a slight 'click' is noticed.
2. Pull bur straight out.
3. Release end cap.
Never depress the autochuck end cap button or rest the end cap against any part of the oral anatomy during handpiece operation. Depressing
CAUTION
the end cap while a bur is rotating can activate the chuck mechanism and result in end cap heat-up and/or loss of bur retention.
Manual Chuck Turbine - Concentrix® FB:
CAUTION Use burs with an overall length of less than 24mm and a shank length of at least 10.8mm.
Use standard length concentric diamond and carbide burs with .0628" (1.6mm) nominal diameter friction
grip shanks designed for high speed handpieces. Every StarDental Diamond Bur meets specifi cations below
for recommended lengths. Contact your dealer for a complete list of StarDental Diamond Burs. StarDental
ISO 4-Line Connector manual chuck turbines have the following bur requirements:
Tubing
Coupler
Use only burs with hardened, tempered steel shanks or carbide shanks. Every StarDental Bur maintains
required hardness. Before use, verify concentric rotation by operating handpiece outside the oral cavity
in a safe place.
Note: Do not use burs that produce excessive noise or do not run concentrically.
Do not use burs that are modifi ed, eccentrically designed, or have bent or 'soft' (non-heat treated)
Tubing
shanks.
Concentrix® SX Only
ISO 4-Line
6-Pin Swivel ISO 6-Pin
Connector
Connector Tubing
Tubing
Coupler
Coupler
Bearing
Tubing Assembly Tubing
Turn tubing coupler
Coupler Nut
while holding swivel
in place
ISO C Type (6-Pin) Swivel
32 psi + 5 psi = 37 psi
32 psi + 12 psi = 44 psi
Autochuck Bur Changing System
Maximum
24.0 mm
OVERALL LENGTH
Minimum
7.3 mm
Shank Length
Autochuck Bur Changing System
Maximum
24.0 mm
OVERALL LENGTH
Minimum
10.8 mm
Shank Length
Manual Chuck Turbine - Concentrix® FB - continued:
Manual Chuck Turbine Bur Changing System
Pull handle back on manual bur tool, StarDental Part #257629, and slide open end of tool onto square nut as shown; release spring loaded handle
1.
and seat shaft of tool into the opening in the rear of turbine housing.
2. To unlock chuck, turn manual bur tool handle counterclockwise.
3. After inserting a 1.6 mm diameter friction grip bur fully into chuck, turn handle of tool clockwise to tighten chuck.
Slide Open End of
Tool Down
Handle
NOTE: Insert and remove burs
Manual
without excessive force.
Bur Tool
4. Disengage tool and tug on bur to verify that it is completely engaged and holding securely. If chuck does not hold bur securely, clean or replace chuck.
Be careful to keep bur tool aligned with handpiece. If tool is side-loaded while engaged in chuck, tool may be damaged.
CAUTION
REMOVAL of Bur from the Manual Chuck
1. Use manual bur tool and turn counterclockwise one full turn, 360° rotation.
2. Pull bur straight out.
Never rest the end cap on any part of the oral anatomy during handpiece operation.
CAUTION
SAFETY
INSTRUCTIONS
WARNING
Always insert the bur full length of the chuck. If you attempt to extend it from the chuck, the bur may dislodge during use and cause injury to you
or your patient.
CAUTION
Replace the turbine when the handpiece fails to achieve full speed and/or increases sharply in noise level. This is an indication of a failing
turbine. A failing turbine will reduce the effi ciency of the handpiece and may result in end cap heat up. See "Turbine Replacement".
1. Always tug on bur after chuck is loaded to confi rm that the bur is secured.
2. Before use, verify concentric rotation by operating the handpiece outside the oral cavity in a safe place. Do not use burs that do not run concentrically
or produce excessive noise.
3. Never operate handpiece without a bur installed.
4. Always use burs with an overall length of less than 24 mm. The shank length must be at least 7.3 mm. This includes most short shank burs.
5. When using handpieces with autochuck turbine - Concentrix FX, SX and SW - never depress end cap while bur is rotating.
6. Use only recommended burs to prevent damage to handpiece turbine and/or chuck and in some cases to prevent burs from improper or incorrect
placement. An improperly clamped bur may dislodge during use, causing injury to you or your patient. A sudden high-pitched sound or increased vibration
while handpiece is operating alerts the operator to the possibility that the chuck is not clamped suffi ciently to retain the bur or a bent bur is inserted.
Lubricating
The Concentrix® FX, FB, SX and SW Handpieces contain a turbine with steel bearings that are lubricated and sealed to keep the dirt out, therefore, never clean
ultrasonically or immerse in solvent that would dilute the lubricant. Lubrication of the turbine is required daily and prior to sterilization. DentaLube II is required to
ensure extended life of the Concentrix® Handpieces.
For maximum turbine life do not exceed recommended pressure.
Note: Lubricate handpiece daily. Use only DentaLube II, StarDental Part #262539.
1. Disconnect handpiece.
2. Assemble the conical red tip applicator, StarDental Part #202954, into the DentaLube II bottle cap.
3. Find drive air tube at rear of handpiece and place two drops of DentaLube II.
(See illustrations for more detail).
lubricant.
4. With bur in place connect handpiece to tubing, operate for 20 seconds to expel excess
Note: Never operate handpiece without bur in place.
Concentrix® SX and Concentrix SW
Applicator
Tip
Coolant Air
Water
Drive Air
Drive Air Tube
Cleaning, Sterilization and Lubricating
It is the responsibility of the user to use only FDA compliant sterilizing equipment and accessories that are capable of
CAUTION
meeting the manufacturers recommendations below.
Use steam sterilization exclusively for complete sterility.
CAUTION
Do not exceed 135°C
To prevent damage to the bur, use an autoclavable bur block.
Do not use:
• dry heat sterilizer • cold sterilizers • ultrasonic cleaners • chemical disinfectors • immersion techniques
• surgical milk • surface wipes • hand soaps
• sterilizer bags containing disinfectants
Limits On Reprocessing: Repeated processing has minimal effect on this handpiece. End of life is normally determined by wear and
damage due to use.
Instructions
Clean and sterilize handpieces and burs as soon as practical before fi rst use and after each patient.
WARNING
Containment and It is recommended that handpieces are reprocessed as soon as is reasonably practical following use.
transportation:
Preparation for cleaning: Remove handpiece from swivel. No further disassembly is required.
Cleaning - Automated: Washer-disinfectors are not recommended.
Cleaning - Manual: Cleaning The Chuck
Cleaning the Manual Chuck (Concentrix FB):
Clean the chuck once a day and prior to sterilization (after each patient). Remove bur from chuck; place three
drops of DentaLube II, StarDental Part #262539, into chucking mechanism. Aerate with syringe air.
Monthly Cleaning of the Manual Chuck
(1.) Loosen chuck with bur tool; remove bur. (2.) Turn bur tool knob counterclockwise until chuck emerges
(3.)Remove bur tool; turn chuck with fi ngers to free. (4.)Clean chuck with alcohol
(5.)Run paper through 3 slots of chuck; remove debris. (6.)Reinstall chuck by reversing steps 1-3.
Bur
Concentrix® FX and Concentrix FB
Drive Air
• detergents • surface sprays
