Simplicity
LED Light Head, Replacement / LED Retrofit
Tools Required
• 5/64" Allen wrench
• Wire stripper
• Lubriplate 105
• Loctite 242
WARNING
Disconnect power to light when indicated.
1. Disconnect power to light.
2. Carefully remove new light head from packaging and
set aside.
3. Ensure flex arm is in its most upright position.
WARNING
If flex arm is not in most upright position, it will
spring upward and may cause injury.

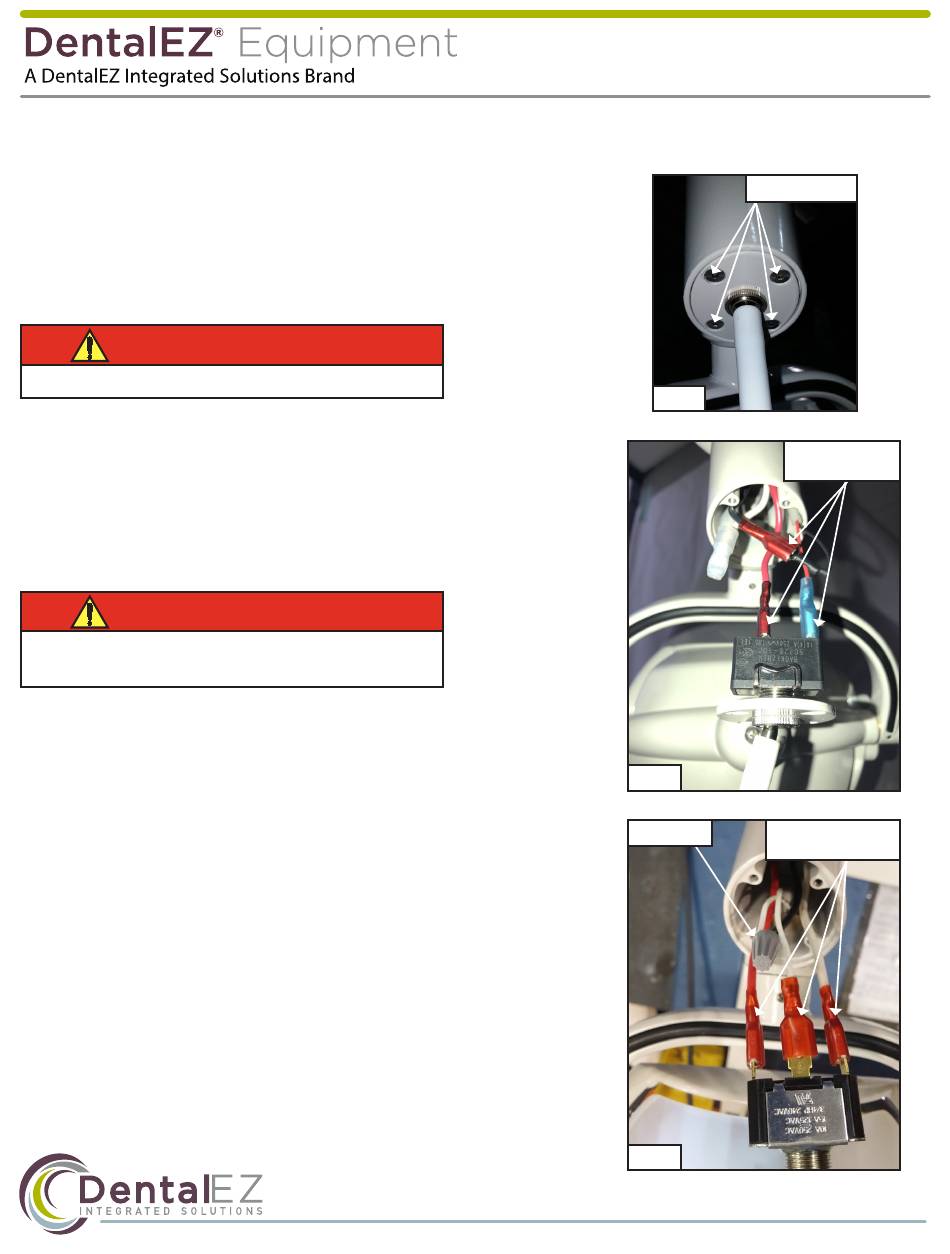

4. Use a 5/64" Allen wrench to remove four screws from
light switch. (Pic 1)
5a. For Replacement: Disconnect three quick connect wires.
(Pic 2a)
5b. For LED retrofit: Disconnect three quick connect wires
and wire nut. (Pic 2b)
6. Use Allen wrench to remove outer set screw, then
loosen inner set screw. (Pic 3, page 2)
7. Carefully pull light head down from flex arm pin.
March, 2018
(LED retrofit only)
www.DentalEZ.com
Page 1 of 2
REPLACEMENT PART
INSTRUCTIONS
Four Screws
Pic 1
Quick connect
Pic 2a
Three quick con-
Wire nut
nect wires
Pic 2b
866-DTE-INFO (opt 3)
PN: 2797-533B
wires
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DentalEZ Simplicity LED Light Head
Summary of Contents for DentalEZ Simplicity LED Light Head
- Page 1 5b. For LED retrofit: Disconnect three quick connect wires and wire nut. (Pic 2b) 6. Use Allen wrench to remove outer set screw, then loosen inner set screw. (Pic 3, page 2) 7. Carefully pull light head down from flex arm pin. Pic 2b www.DentalEZ.com 866-DTE-INFO (opt 3) March, 2018 Page 1 of 2 PN: 2797-533B...
- Page 2 8. For LED retrofit: With harness exposed, cut female Allen terminal from white wire. Use wire stripper to remove Wrench 1/4” of sheathing from tip, crimp supplied wire joint on to wire. Crimp supplied female terminal on to black wire. (Ensure sheathing is stripped back 1/4”.) (Pic 4) NOTE: Lubriplate 105 and Loctite 242 are not included in replacement kit.
