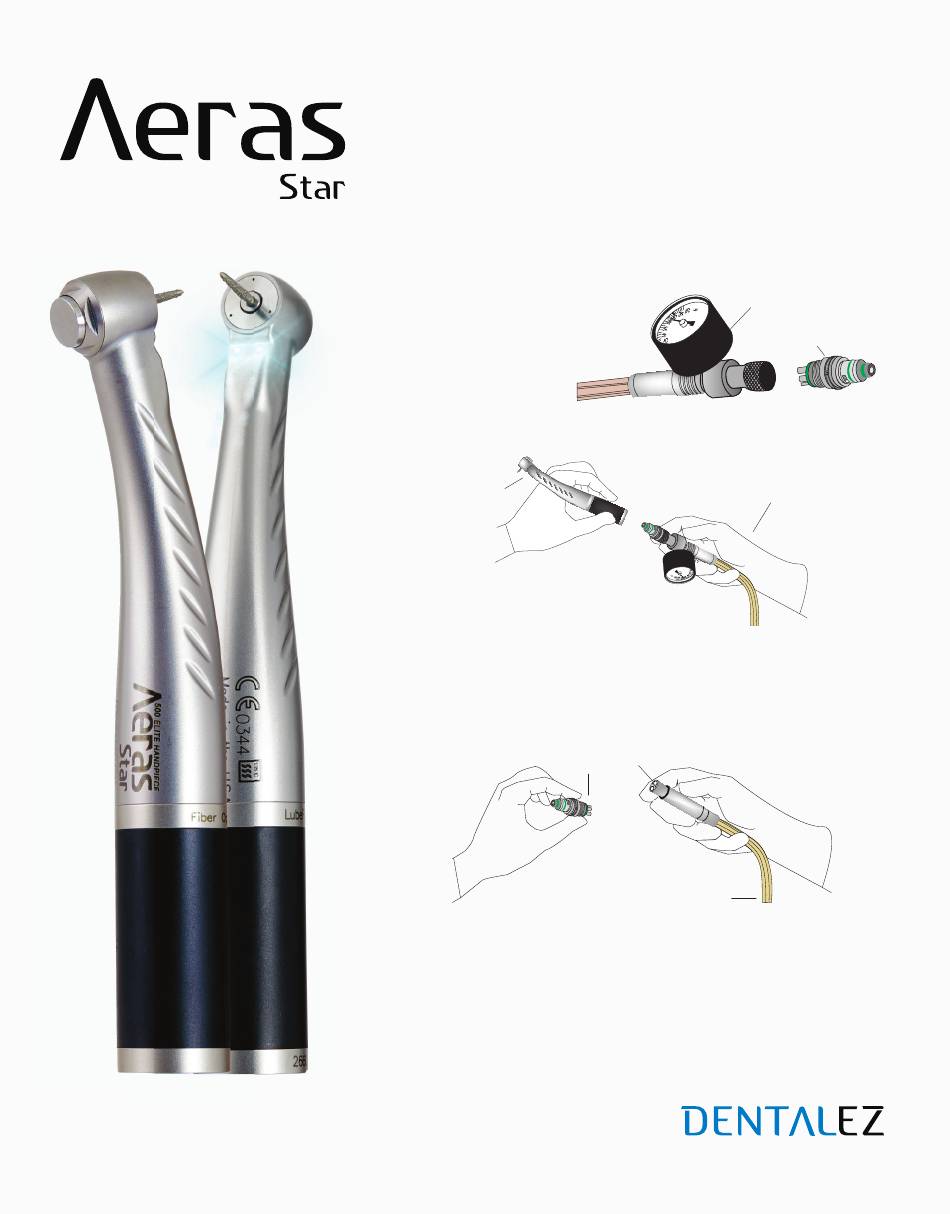

Step 1:
Confirm the regulator gauge in the Junction Box/Utility Service Center on
the floor is set to 80 psi.
Step 2:
Attach air pressure gauge (262591)
on tubing. Attach swivel on top of
the gauge and tighten.
Step 3:
Snap the handpiece onto swivel.
HANDPIECE
Step 4:
Adjust air pressure until the gauge reads 38-43 psi.
Step 5:
Remove gauge and swivel from tubing.
Step 6:
Connect just the swivel back onto the tubing and tighten with the wrench
that is provided.
Step 7:
On the delivery unit turn both the chip air and water completely off.
Step 8:
Turn water up first slightly. Then turn chip air up to achieve mist.
Step 9:
Adjust the water and chip air accordingly to achieve desired mist.
Note: If water spray is choppy, the chip air is too high.
