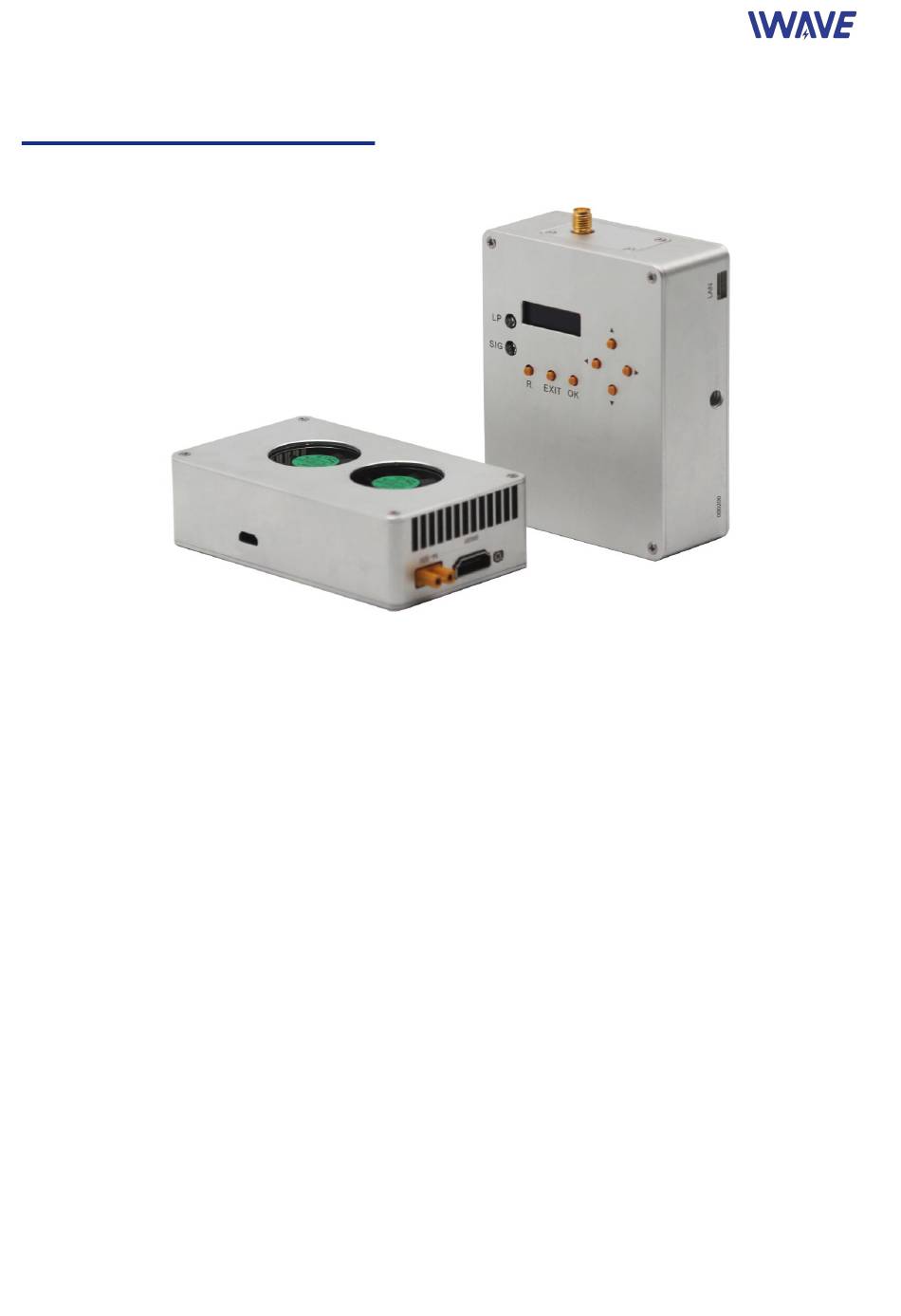

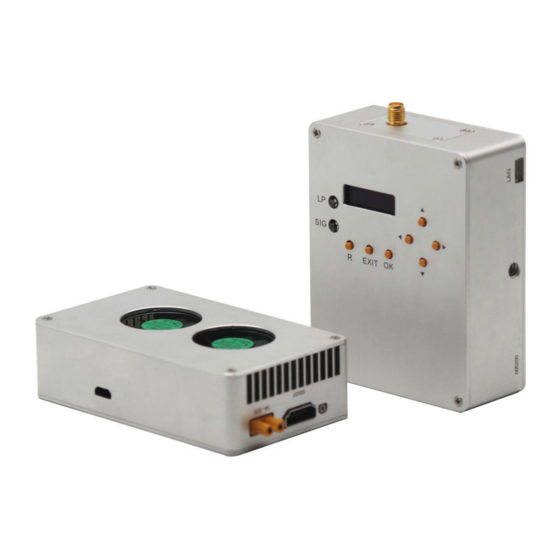

FIM-1440 User Manual
Directory
1. OPERATION CAUTIONS.................................................................................................................................................2
2. Package List.........................................................................................................................................................................3
3. Interface Definition.........................................................................................................................................................4
3.1. Tx Interface................................................................................................................................................................ 4
3.2 Rx Interface................................................................................................................................................................. 5
4. Operating Steps.................................................................................................................................................................6
4.1. Preparing......................................................................................................................................................................6
4.2. Connection.................................................................................................................................................................. 7
4.3. Rx Operation after powering on......................................................................................................................... 7
5. Rx Configuration............................................................................................................................................................... 8
6. Tx Configuration............................................................................................................................................................... 8
7. Solution for COM port being occupied............................................................................................................... 10
www.iwavecomms.com
1
Advertisement
Table of Contents
Related Manuals for iWave FIM-1440
Summary of Contents for iWave FIM-1440
-
Page 1: Table Of Contents
FIM-1440 User Manual Directory 1. OPERATION CAUTIONS..............................2 2. Package List..................................3 3. Interface Definition.................................4 3.1. Tx Interface................................4 3.2 Rx Interface................................. 5 4. Operating Steps.................................6 4.1. Preparing..................................6 4.2. Connection.................................. 7 4.3. Rx Operation after powering on......................... 7 5. Rx Configuration................................8 6. -
Page 2: Operation Cautions
Therefore, the Tx antenna should be installed as far as possible from other wireless antennas. 6) Do not disassemble or modify the FIM-1440. If you meet an unresolved problem during the installation, please contact support@iwavecomms.com 7) HDMI cable and antenna may interfere with GPS. -
Page 3: Package List
2. Package List Tx antenna x1 Rx antenna x1 DC power cable x4 HDMI video cable x2 Network cable x4 Filter*1 SMA Cable(Copper wire tinned shield semi-soft line) x3 USB Cable for Configuration*1 www.iwavecomms.com... -
Page 4: Interface Definition
3. Interface Definition 3.1. Tx Interface Power Input: XT30 Plug supporting 14-18V power input(16V is suggested) HDMI Interface: Standard HDMI port Micro USB Socket: Connect Tx with PC by USB Cable for configuration Antenna Interface: Standard Outer crepe inner hole SMA Port 1/4 inch Camera fixed hole www.iwavecomms.com... -
Page 5: Rx Interface
3.2 Rx Interface (1) Power Input Socket: XT60U supporting 10-14V power input(12V is suggested) (2) HDMI Interface: Standard HDMI Video Output port Keys and LCD for working status display LAN Power Light Signal Light LCD to display parameters Right Left Down Exit Record(Not available at present) -
Page 6: Operating Steps
A. ETH：EZH 4P 1.5mm Signal B. 1/4 inch fixed hole Antenna Interface: Standard Outer crepe inner hole SMA Port 4. Operating Steps 4.1. Preparing Make TX and RX and accessories ready. Besides the whole equipment we supply, you also need to make sure the video source, display and power ready before operating. -
Page 7: Connection
4.2. Connection Ensure all the connections are in good condition, then turn on the power of Camera, Display, TX and Rx. 4.3. Rx Operation after powering on The first time to build communication between Rx and Tx: Long-press”OK” key for 3seconds, then choosing bandwidth and frequency same as Tx (Tx default frequency: 1437Mhz, Bandwidth: 4Mhz). -
Page 8: Rx Configuration
5. Rx Configuration Scaling and frame rate: Long-press”LEFT” for 5seconds to adjust the scaling and frame rate. When Upscal is ON, 480P can be scaled into 720P and 720P can be scaled into 1080P. Scaling: Frame Rate: if Tx frame is 30/25, you can sent the Rx frame rate 30 for lower latency or 60. Please make sure your monitor supports 30frame or 60frame video display. - Page 9 V3.0.exe” Note: "MSCOMM32.ocx" file should be in the same directory as the above “ file. Software Operation Interface Choose right COM→Click” Open”→Click “Read”→Adjust the settings→Click”Write”(It needs 3seconds to finish the writing) RF ON-OFF: Choose Open or close the RF Frequency: 1412~1462MHz for your option Bandwidth: Default 4Mhz Modulation: Default QPSK Guard Interval: Default 1/32...
-
Page 10: Solution For Com Port Being Occupied
Adjust the encoder stream Note: After selecting the above 1, 2, 3, 4, 5 and 6 related data, click calculation to calculate the capacity of the RF channel. Then select the data on the right but not exceed the calculated value, otherwise mosaics will appear in the video. AES: Set 8 hexadecimal numbers same with Rx 7. - Page 11 Parameter configuration software (Windows version, connected to the transmitter via USB) www.iwavecomms.com...
