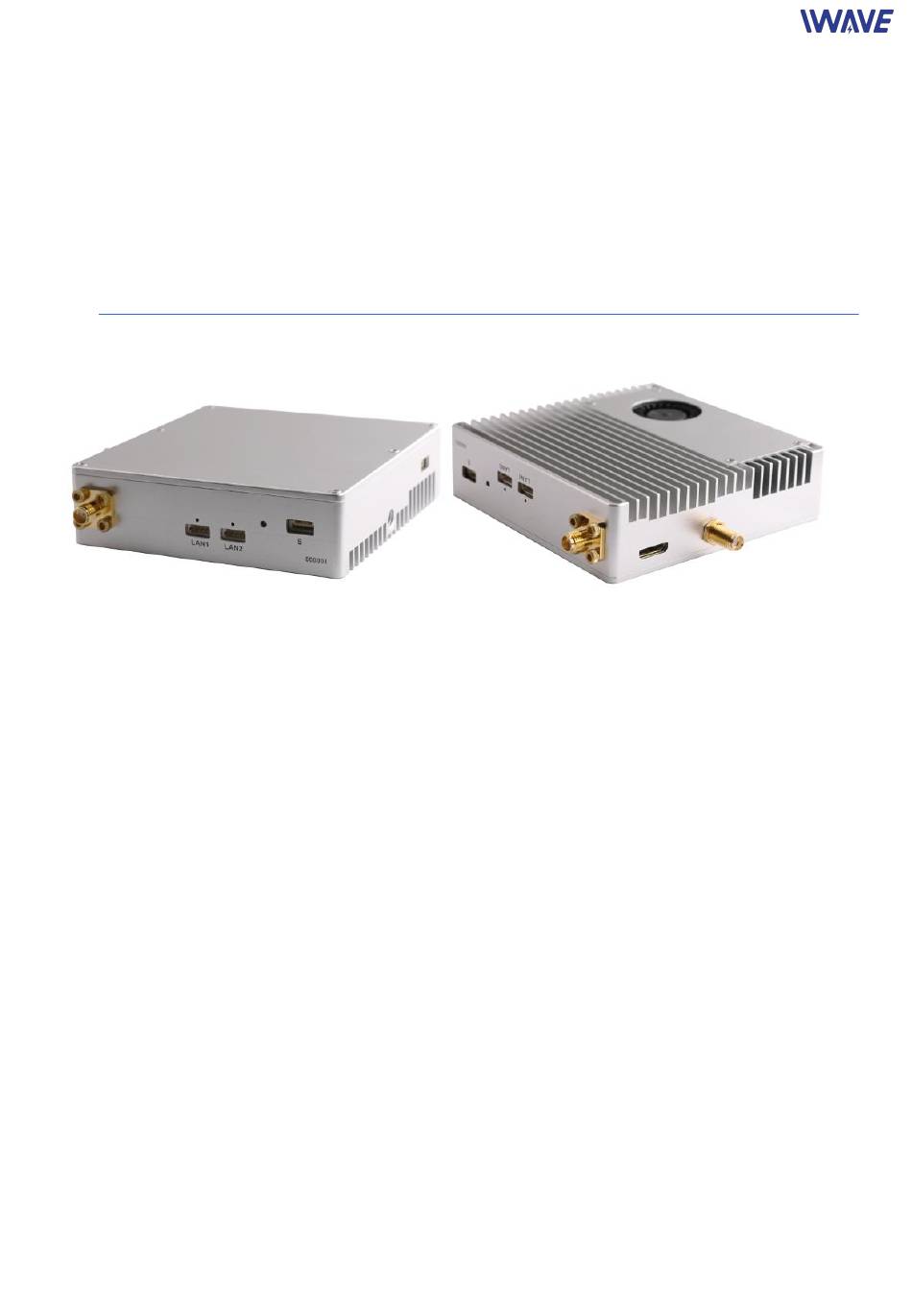

FMS-8480 User Manual
December 2019
Version 2.0
Content
1.Package List ........................................................................................................................................ 2
2.Interface ............................................................................................................................................. 3
3.Installation Setps ................................................................................................................................5
4.Play Video on Windows PC by TPlayer ...............................................................................................6
5. Steps of Network Configurations ...................................................................................................... 7
6.Notice .................................................................................................................................................7
www.iwavecomms.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

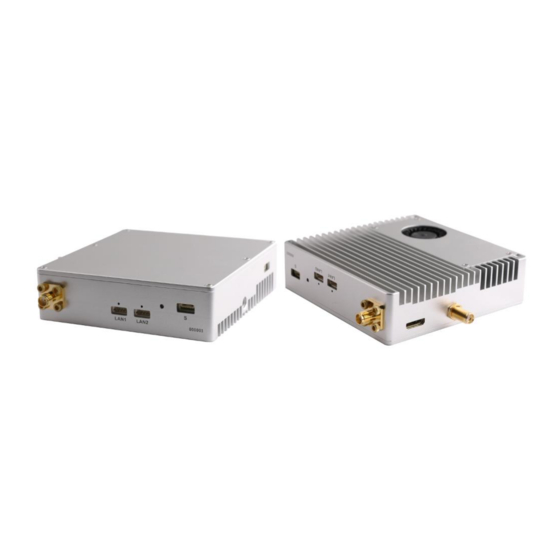

Related Manuals for iWave FMS-8480
Summary of Contents for iWave FMS-8480
- Page 1 FMS-8480 User Manual December 2019 Version 2.0 Content 1.Package List ............................2 2.Interface ............................. 3 3.Installation Setps ..........................5 4.Play Video on Windows PC by TPlayer ....................6 5. Steps of Network Configurations ...................... 7 6.Notice ..............................7 www.iwavecomms.com...
- Page 2 1.Package List Transmitter*1 Receiver*1 Transmitter Antennas*2(5db/35cm length) Receiver Antenna*2(14db/90° directional ant) Antenna Cable*4 HDMI Cable*2 BNC-SMA*2 Power Cable*4 www.iwavecomms.com...
- Page 3 Ethernet Cable*4 TTL Serial Data Cable*2 TTL-USB Cable*2 2.Interface Interface on Tx and Rx are same (Tx) (Rx) www.iwavecomms.com...
- Page 4 Note: Camera logo for TX unit. Monitor logo for RX unit TX Unit automatic identifies video type. If SDI video input, Tx unit will encode and transmit SDI video. If HDMI video input, it will encode and transmit HDMI video. Note: If Both are connected and active, it will encode and transmit SDI video ...
- Page 5 Serial connector: Connect the TTL-serial cable to transmit serial signal, voltage is 3.3V. SMA connector: Connect antenna. Note: Both the antennas should be in good connection before power on LAN Connectors LAN LED --Bright: The LAN connector is connected successfully to external device via a LAN cable --Flashing: Data is transmitting via the LAN connector ...
- Page 6 Pin number Signal 3.3V output, max 500mA (to power external device if necessary) Reserved Another header consists of 3 Dupont plugs with different color wire: Color Signal Yellow Black Serial Data Format Default Baud Rate 115200 Data Bits Parity Stop bit Voltage 3.3V 4.Play Video on Windows PC by TPlayer...
- Page 7 A video playback window will pop out and begin to play the video 5. Steps of Network Configurations FMS-8480 units are working as wireless bridge. Tx and Rx are in the same IP subnet 192.168.1 netmask is 255.255.255.0 IP Address of FMS-8480 as follows: 192.168.1.1...
