  • Page 1: Table Of Contents

    FPM-8416 User Manual Contents 1 Introduction ..........................1 2 Connectors and LEDs ........................2 3 Setting up FPM-8416 units ......................5 3.1 Setting up steps of HDMI Video transmitting ..............5 3.2 Network Configurations .....................5 3.3 Setting up steps of Network Communication ..............6 4 Details and Notice ........................

  • Page 2: Introduction

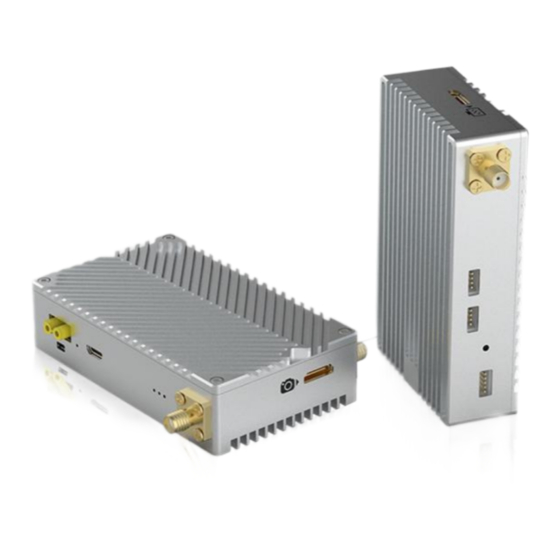

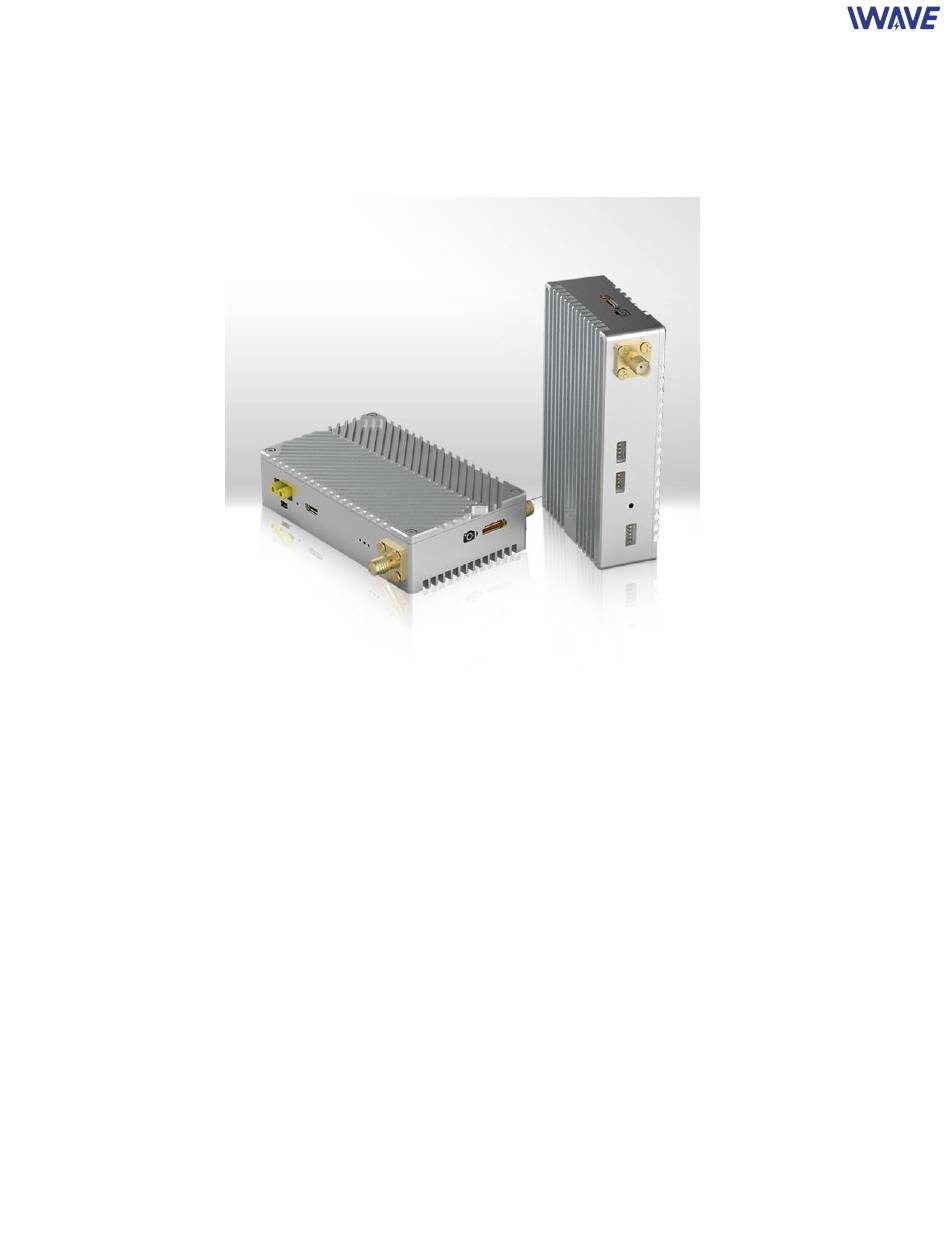

    1 Introduction FPM-8416 is the model name of middle range (up to 14-16km) point-to-point HDMI （or SDI）video & network transmission device. Each set of FPM-8416 contains the following items One transmitter unit, with a camera logo on it. One receiver unit, with a monitor logo on it.

  • Page 3: Connectors And Leds

    Connectors and LEDs Front Side TX Unit RX Unit Camera logo for TX unit, one Mini HDMI port or SDI port. Monitor logo for RX unit,one Mini HDMI port.   Right Side One 2P Power connector (Model XT30PW). The voltage range is 7~18V. ...
  • Page 4 One power switch. One Power LED, it will be on if power is on.  One WAN LED. It will be flashing if the video stream is transmitting/receiving  over wireless channel  Three wireless status LEDs. LED1 will be on if transmitter unit and receiver unit are both power on and have established wireless connection successfully.LED2 ...
  • Page 5 Rear Side One standard ¼”-20 screw hole, for installing/mounting the unit on tripod, platform, etc.  www.iwavecomms.com ４...

  • Page 6: Setting Up Fpm-8416 Units

    Tplayer on yout PC, then use Ethernet cable to connect Lan1 or Lan 2 in FPM-8416 . At the end , click the software and select adapter . If one serial device is connected to transmitter side, another serial device is connected to receiver side, and their voltage/data format is configured ...

  • Page 7: Setting Up Steps Of Network Communication

    4.3 Serial Data Format, they should be able to communication with each other now. Note: FPM-8416 supports HDMI or SDI video transmitting and network communication simultaneously. While when HDMI or SDI video is transmitting over wireless channel, there is only 100kbps throughput left in the channel for LAN1+LAN2.

  • Page 8: Details And Notice

    4 Details and Notice TTL Serial cable is for transmitting 3.3V TTL Serial signals 4.1 TTL Serial Cable One header is 5P JST eGH header, the pin number shown in following picture, it shows the header side with metal exposed (note: Wire color is irrelevant) Pin number Signal...

  • Page 9: Serial Data Format

    2 meters or larger for receiver side. If two  antennas don’t keep proper distance, the wireless signal may become weaker, max range may become shorter. Don’t dismantle or modify FPM-8416 units.  www.iwavecomms.com ８...
