FNS-8408 User Manual
To Costumers
Thank you very much for your favor of our products! This manual describes the usage of the FNS-8408 and
amis to enable you quickly grasp the use of the product.
Copyright Information
This document is copyright-protected by IWAVE COMMUNICATIONS Co.,Ltd. Laws in China and/or other
countries or areas protect the exclusive rights of the Company. The Company endeavors to achieve the
accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the
specifications and designs are subject to change without notice due to continuous technological
development. No part of this manual may be copied, modified, translated, or distributed in any manner
without the prior written consent of the Company.
If you have any suggestions or would like to receive more information, please visit our website at:
http://www.iwavecomms.com, or email us support@iwavecomms.com.
www.iwavecomms.com
3F, 19th Bldg, No.1515 Gumei Road, Minhang District, Shanghai, China
Version 1.0.1(3)
Date 8/9/2019
IWAVE COMMUNICATIONS Co.,Ltd
添 加 标 题
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iWave FNS-8408
Summary of Contents for iWave FNS-8408
- Page 1 FNS-8408 User Manual To Costumers Thank you very much for your favor of our products! This manual describes the usage of the FNS-8408 and amis to enable you quickly grasp the use of the product. Version 1.0.1(3) Date 8/9/2019 IWAVE COMMUNICATIONS Co.,Ltd 3F, 19th Bldg, No.1515 Gumei Road, Minhang District, Shanghai, China...
-
Page 2: Table Of Contents
FNS-8408 User Manual Contents 1. Introduction........................... 2. Package List........................... 3. Interfaces and Indicator Lights....................4. Network Settings & Installation....................4.1. Network Configuration....................5 4.2. Installation Steps......................5 5. Cables..............................6 5.1. TTL Cables.........................6 5.2. Serial Data Format......................7 5.3. Ethernet Cables........................7 6. Notice...............................7 www.iwavecomms.com... -
Page 3: Introduction

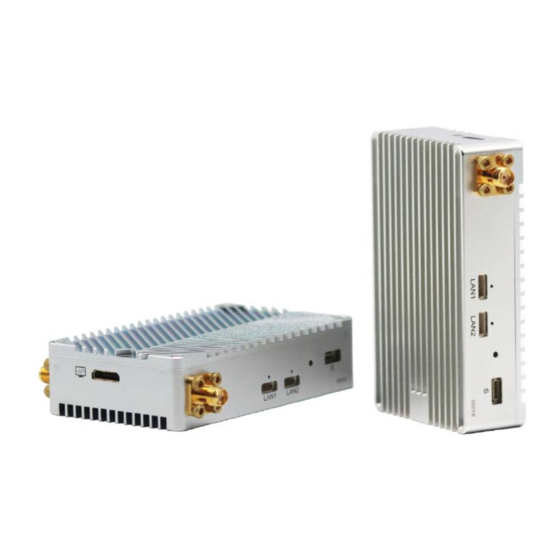

FNS-8408 User Manual 1. Introduction FNS-8408 is a short range (7~8km) point-to-point drone HD network downlink radio. 2.Package List www.iwavecomms.com... -
Page 4: Interfaces And Indicator Lights
FNS-8408 User Manual 3. Interfaces and Indicator Lights 3 LAN Ports for connecting with 4P Ethernet ü cable Each LAN port has a LED light below. The ü LED will flash when data is transmitting through the port. ü TTL-serial cable connect with the 5P serial port for signal transmitting(Vol: 3.3V) -
Page 5: Network Settings & Installation
FNS-8408 User Manual 4. Network Settings & Installation 4.1. Network Configuration FNS-8408 units are working as wireless routers, the Tx and Rx connects two different network segments: 192.168.1.X(Tx) and 192.168.2.X(Rx) Default IP address: Transmitter(Tx) Receiver(Rx) 192.168.1.1 192.168.2.129 Table 1 IP configuration IP Address 192.168.1.X... -
Page 6: Cables
FNS-8408 User Manual 5. Cables 5.1. TTL Cables TTL Serial cable is for transmitting 3.3V TTL signals. One end is 5P JST eGH, the pin number is shown as below. Signal 3.3V output, max 500mA (power external device if necessary) -
Page 7: Serial Data Format
FNS-8408 User Manual 5.2. Serial data format Default Baud Rate 115200 Data Bits Parity Stop bit Voltage 3.3V 5.3. Ethernet Cable One end is standard RJ45 and the other end is 4P JST eZH header 6. Notice ü Before powering on, make sure all the antennas are in good connection. Because Powering on a unit without antenna as a load, the PAs inside will be damaged ü...
