- Page 1 Blizzard Lighting, LLC http://www.blizzardpro.com Waukesha, WI USA Copyright (c) 2022...
-
Page 2: Table Of Contents
1. Getting Started What’s In The Box? Getting It Out Of the Box Powering Up! Getting A Hold Of Us Safety Instructions 2. Meet the node:b RGBAL Main Features DMX Quick Reference Node:b™ RGBAL Pin-Up Picture The Rear Connections 3. Setup... -
Page 3: Getting Started
Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can download the latest version of this document from www.blizzardpro.com. -
Page 4: Safety Instructions
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www.blizzardpro.com/support. Page 4 node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 5: Meet The Node:b Rgbal
2. MEET THE NODE:B RGBAL Main Features • Light source: 200W RGBAL COB LED • Engine accommodates profile or fresnel lens barrels (sold separately) • Small in size, 10cm fixture diameter • Lens: glass optical lens • 1-25Hz strobe effects •... -
Page 6: Node:b™ Rgbal Pin-Up Picture

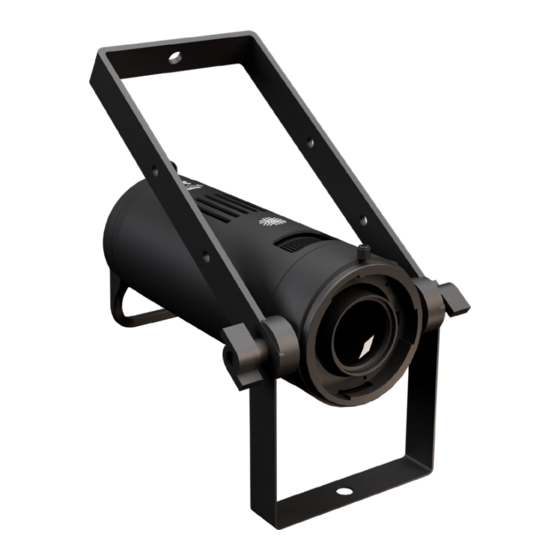

200W RGBAL Dual Mounting COB LED Brackets Light Source The Rear Connections Control Menu Safety Loop Fuse Holder Power Cord Locking Locking Knob Knob DMX In DMX Out Page 6 node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 7: Setup
• Maximum capacitance between conductors – 30 pF/ft. • Maximum capacitance between conductor & shield – 55 pF/ft. • Maximum resistance of 20 ohms / 1000 ft. • Nominal impedance 100 – 140 ohms Page 7 node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 8: Cable Connectors
1.) Align the notch of the lens barrel with the marked line on the engine. 2.) Insert the and turn the lens barrel counterclockwise to the secured position. 3.) Fully secure the lens barrel to the fixture using the included thumbscrew. Page 8 node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 9: Insert The Gobo Holder (Profile Lens Barrels Only)
IMPORTANT: Regardless of the rigging option you choose for your fixtures, always be sure to secure your fixture with a safety cable. Page 9 node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
<ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Page 10 node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 11: Control Panel Menu Structure
Shows current firmware version RDM UID Unique RDM ID Usage Time Power on Total running hrs. LED total LED running hrs. Temperature Celsius (°C) Fahrenheit (°F) Reset Yes/No Load factory defaults Page 11 node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 12: Static Mode
2.) Use the <UP/DOWN> buttons to select Dim Speed. Press <ENTER>. 3.) Then use the <UP/DOWN> buttons highlight Off, Low, Medium, or High, then press the <ENTER> button. Page 12 node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 13: Dimming Frequency
061 <-> 090 Medium 091 <-> 255 High Dimming Curves 000 <-> 050 Linear 051 <-> 100 Square law 101 <-> 150 Inverse square law 151 <-> 255 S curve Page 13 node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 14: Appendix
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 14 node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC... -
Page 15: Tech Specs
LEDs. Dimensional Drawings 7.8" (196 mm) 18.2" (461 mm) Engine + Fresnel Lens 20" (506 mm) Engine + 25-50° Lens 21.7" (550 mm) Engine + 15-30° Lens Page 15 node:b™ RGBAL Manual Rev. A © 2022 Blizzard Lighting, LLC... - Page 16 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
